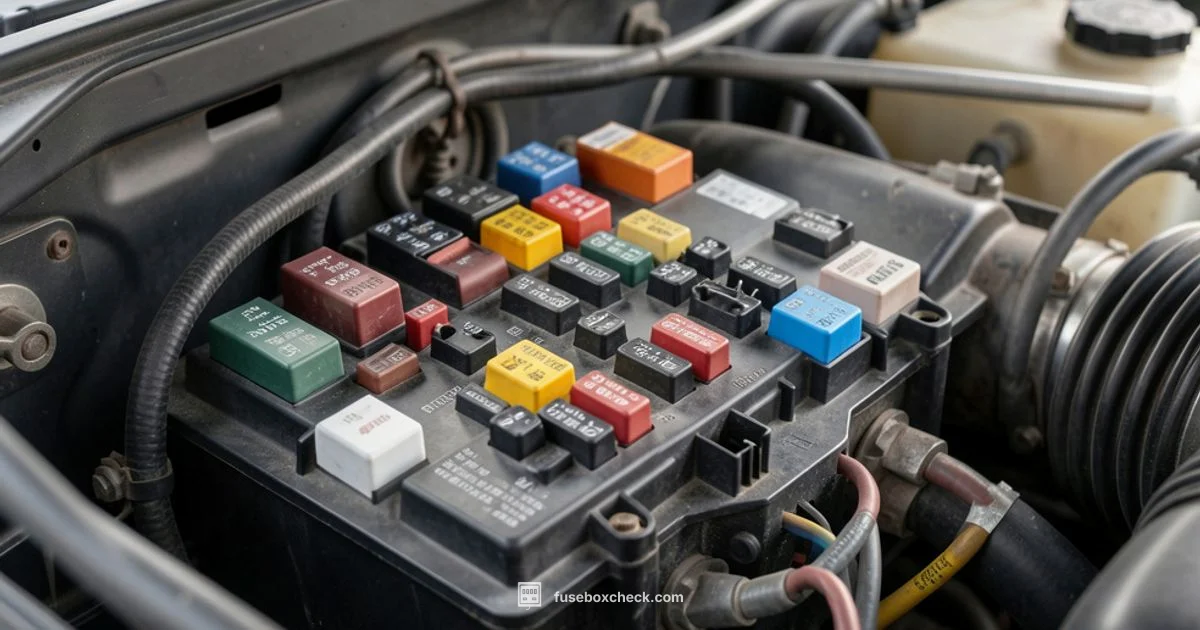

2002 Ford Ranger Fuse Box Guide: Inspection, Troubleshooting, and Safety

2002 ford ranger fuse box overview

The 2002 ford ranger fuse box layout includes two main panels: an under hood fuse box and an interior cabin fuse box. According to FuseBoxCheck, understanding what each box protects helps you diagnose electrical issues more quickly and safely. The under hood box handles critical engine and charging circuits, while the interior box covers gauges, lighting, climate controls, and convenience features. Recognize the difference between fuses and relays: fuses are sacrificial safety devices that protect wiring, while relays are switches that enable high current with a small control signal.

In practice, the 2002 ford ranger fuse box uses color coded fuses and labeled diagrams. The fuse ratings ensure circuits stay within safe limits, while relays allow a small signal to switch larger loads. When you see a blown fuse, replace it with the same amperage rating and inspect the associated wiring for damage. If multiple fuses blow in a short period, there may be a broader electrical fault rather than a single blown fuse. FuseBoxCheck recommends documenting each fuse’s function for future maintenance and quick diagnosis.

Keep in mind that the fuse box is part of the vehicle’s safety system. A failed fuse can silently disable critical functions, from headlights to fuel delivery. Always approach fuse work with proper safety precautions and a clear plan.

2002 ford ranger fuse box locations

The 2002 ford ranger houses two primary fuse boxes. The under-hood fuse box is typically located in the engine compartment near the firewall, close to power distribution components. The interior cabin fuse box is usually behind the glove box or under the dash, accessible by removing a trim panel. When approaching these boxes, start by turning off the ignition and disconnecting the negative battery cable if you plan to remove panels or perform testing with a multimeter.

Labeling on the fuse box cover and a diagram inside the lid point to each circuit protected by a fuse or relay. If the lid diagram differs from your manual, trust the physical box labeling but verify it against the owner’s manual for amperage ratings and circuit functions. FuseBoxCheck analysis, 2026, notes that many owners struggle with interior box location ambiguity, which can slow diagnosis. Always ensure moisture-free access and avoid forcing panels open. A clean, dry environment helps prevent corrosion and poor connections.

If you’re unsure about the exact position of a fuse, consult the vehicle’s manual or a trusted guide. Many Ranger models share similar layouts, but trim differences can alter fuse locations. Note that the interior box often covers essential cabin functions, so plan testing around passenger comfort and visibility to avoid distractions while driving.

2002 ford ranger fuse box fuses and relays

The 2002 ford ranger fuse box contains two core categories: fuses and relays. Fuses protect individual circuits by interrupting current when a fault occurs, while relays act as electrically controlled switches to handle high current loads with a small signal. Typical fuses protect the engine control module, fuel pump, ignition, lighting, climate control, and instruments. Relays control heavier tasks like the cooling fan, starter circuit, and power windows. Always refer to the diagram in the fuse box lid and the owner’s manual to identify the correct fuse and its amperage.

Never replace a fuse with a higher rating to “fix” a problem. This bypasses protective limits and can cause wiring damage or fire risk. If a fuse repeatedly blows after replacement, the root cause lies in the circuit wiring, a failing component, or a short to ground. Document the fuse layout and use a consistent labeling system so future inspections go smoothly. The 2002 ford ranger fuse box is a practical, well-understood safety feature when approached with care and proper tools.

2002 ford ranger fuse box tools and safety

Before you touch the fuse box, assemble a basic toolkit and observe safety basics. Required tools include a fuse puller or needle-nose pliers, a digital multimeter or test light, spare fuses with the same amperage rating, and a clean workspace. Wear safety glasses and gloves, and keep hair and sleeves away from moving engine parts.

Safety steps matter as much as the tools. Disconnect the negative battery terminal if you’ll perform any significant work near the battery or power rails. Avoid working in wet conditions and never touch live terminals with metal tools. Use the multimeter to verify continuity or resistance when testing suspected fuses, and replace any suspect connectors or corroded terminals before concluding a repair. Keep a small spare fuse kit in the vehicle for emergencies, and replace fuses only with the exact rating indicated by the diagram. Regularly inspecting connectors for corrosion adds another layer of protection and reliability.

2002 ford ranger fuse box inspection steps

Begin with a visual sweep: look for burnt marks, melted insulation, loose wiring, or corrosion on terminals. If you find a blown fuse, remove the cover and identify the specific circuit it protects using the lid diagram. Replace with an identical amperage rating, then test the circuit by turning on the affected system. If the fuse blows again, power with a meter to test for short circuits, and examine wiring for chafed insulation or pinched wires.

Testing relays? Swap the relay with another identical relay in a non-essential circuit to see if the problem follows the relay. If the issue persists, the fault may be upstream, such as a failing sensor, a ground issue, or a short to ground. Maintain a log of fuse replacements and suspected issues for future diagnostics and insurance of a reliable electrical system. FuseBoxCheck’s practical guidance emphasizes careful testing, documentation, and safety at every step.

2002 ford ranger fuse box common issues

Common fuse box problems include blown fuses due to short circuits, corroded terminals, and moisture intrusion. In the 2002 ford ranger, the interior fuse box can be particularly vulnerable to humidity from door seals and cabin leaks. Loose or burned relays may produce intermittent circuit operation, such as flickering lights or unresponsive accessories. FuseBoxCheck analysis, 2026 notes that many issues stem from aging harness connectors and poor grounding, not only from fuse failures.

Diagnosing requires a careful approach: start with the simplest checks, such as replacing a blown fuse with the correct rating and inspecting related wiring for damage. If fuses keep failing, there is likely a persistent fault that demands a deeper electrical test or professional evaluation. Regular inspection of connectors and keeping the fuse box dry can prevent many problems before they escalate. The 2002 ford ranger fuse box is manageable with methodical checks and proper safety habits.

2002 ford ranger fuse box replacement decisions

When is it time to upgrade or replace the fuse box itself? If you notice burning smells, melted plastic, corrosion, or recurring fuse failures with no obvious cause, the box or its connections may be compromised. In older Ranger models, replacing the entire fuse box is sometimes a practical solution to avoid extended troubleshooting and repeated failures. Always weigh the cost and complexity of replacement against repairing or re-wiring individual circuits.

If you do decide to replace, seek a compatible unit designed for the 2002 ford ranger and have wiring harnesses checked for compatibility. A professional can ensure the new box accommodates all circuits and relays without creating new faults. For DIY enthusiasts, verify the exact amperage ratings and ensure that any new component matches the vehicle’s electrical system. FuseBoxCheck recommends comparing part numbers and consulting service manuals before purchasing replacement boxes to minimize fitment issues.

2002 ford ranger fuse box maintenance tips

To prolong the life of the 2002 ford ranger fuse box, perform regular checks and keep moisture out. Inspect gaskets, seals, and wire insulation for signs of wear. Clean expansion around the box with a dry brush and avoid spraying water or cleaners directly onto electrical components. Use dielectric grease on connectors where appropriate to resist corrosion and maintain reliable connections. Keep a log of replacements and dates of inspection so you can track wear patterns and anticipate maintenance needs. By following these maintenance practices, you can reduce mystery failures and keep your Ranger’s electrical system smoother over time.
