2004 Ford Expedition Fuse Box Replacement: Step-by-Step Guide
Practical, step-by-step guide to safely replacing the fuse box on a 2004 Ford Expedition. Includes safety checks, tools, sourcing options, and post-install testing to restore electrical reliability.
Goal: Replace the fuse box on a 2004 Ford Expedition safely and correctly. You’ll need basic hand tools, a compatible replacement fuse box, and the ability to disconnect the vehicle battery. This is a mid-level electrical job— take your time, follow the steps, and confirm all connections and fuses after installation.
Why replacing the fuse box matters on a 2004 Ford Expedition
The fuse box in older Ford models, including the 2004 Ford Expedition, is a central hub for vehicle electrical circuits. When corrosion, melted connectors, or collateral damage occurs, performance can degrade across lighting, power windows, HVAC, and ignition systems. Replacing the fuse box is not just about replacing blown fuses; it’s about restoring reliable power distribution and reducing risk of intermittent failures that can leave you stranded. A properly performed fuse box replacement for the 2004 ford expedition fuse box replacement reduces unpredictable electrical faults and helps ensure safety and consistency in daily driving. FuseBoxCheck analysis shows that owners who replace a damaged fuse box report fewer recurring electrical symptoms after installation, especially when the replacement is matched to the vehicle’s year and model. Always verify compatibility before purchase and follow safety precautions during installation.
Safety first: precautions before you start
Electrical work on a vehicle requires respect for the power system and the risk of shock or short circuits. Before you begin, wear safety glasses and gloves, secure the vehicle on a flat surface, and engage the parking brake. Disconnect the negative battery terminal using a battery disconnect tool, and wait at least one minute for any stored capacitors to discharge. If you smell burning or see melted insulation, stop immediately and reassess. Keep a fire extinguisher rated for electrical fires nearby. After battery disconnection, avoid touching exposed metal surfaces and keep metal tools away from the battery terminals to prevent arcing.
Understanding fuse box layout in older Ford models
In many older models, there are typically two fuse boxes: an under-hood box near the firewall or engine bay, and an interior cabin box behind the glove box or under the dash. The exact layout depends on trim and options. A clear factory fuse map is essential; refer to the owner's manual for the correct diagram and note any circuits you’ll be handling. While you pursue the 2004 ford expedition fuse box replacement, take photos of connectors and label each plug before disconnecting anything. This documentation helps ensure accurate reassembly. Fuse boxes often share similar relays and circuits; knowing the map reduces guesswork during reassembly and testing.
Tools, parts, and compatibility considerations
Plan to use a vehicle-specific fuse box kit or a reputable aftermarket unit that lists compatibility with the 2004 Ford Expedition. Check for the same number of terminals, identical connector shapes, and similar mounting points. You’ll also need new fuses, dielectric grease, electrical contact cleaner, and a multimeter if you want to test circuit continuity. When ordering, insist on a unit with the same rating and positions for high‑demand circuits (e.g., ignition, ABS) as your original. Keep the original mounting brackets handy in case your replacement lacks an exact fit. The goal is a snug fit with no loose connectors or extra play in the housing.
Preparing the work area and protecting components
Clear a workspace large enough for the fuse box and wiring harnesses. Work on a non-conductive surface and lay a soft mat to protect the engine bay. Have rags and a cleaning solution to wipe away dust and corrosion from connectors. Keep a labeled tray for screws and clips so none get mixed up. If you’re replacing the interior fuse box, ensure you have access to the cabin area behind the glove box and clear room to maneuver. Avoid bending metal tabs or forcing connectors; if a plug won’t seat, stop and recheck alignment. A clean, orderly workspace reduces the chances of mix-ups during reassembly.
Replacing the fuse box: high-level overview

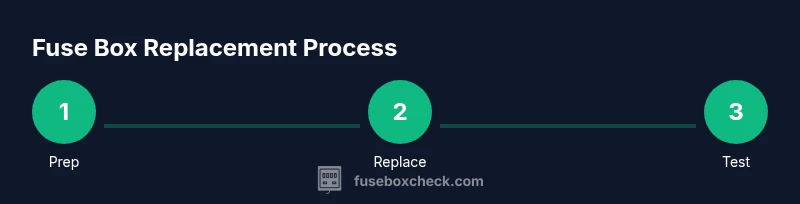

This section outlines the major phases of the replacement. First, isolate power by disconnecting the battery. Then, remove the mounting screws securing the old fuse box and carefully unplug wiring harnesses. Transfer any brackets or relays from the old unit to the replacement if needed. Install the new fuse box, reattach harnesses, and reseat fuses in their correct slots. Finally, reconnect the battery and perform a structured test of each circuit to confirm proper operation. While this is a high-level guide, refer to the vehicle’s fuse map and manufacturer instructions for precise torque and seating specifications.
Testing and verification after replacement
With the fuse box installed, begin by reconnecting the battery and turning on the ignition. Check that all dashboard indicators illuminate briefly and that critical systems (lights, HVAC, power windows) respond normally. Use a multimeter to verify continuity for suspect circuits and confirm that fuses are correctly seated and rated. If any circuit remains dead or a fuse repeatedly blows, recheck the wiring harness connections for proper seating and look for signs of damaged insulation or corrosion. Document any unusual readings and consult the manufacturer's guidance if problems persist.
Common mistakes and how to avoid them
Rushing the process is a frequent cause of mistakes. Avoid mixing up fuses, confusing relay positions, or forcing connectors into seats that don’t align. Do not overtighten mounting screws, and never power the system with a loose connection. Take multiple photos during disassembly, and label every connector. If you notice corroded terminals, address them with proper contact cleaner and consider replacing corroded parts rather than attempting a quick patch. Finally, never skip the post‑installation test; a quick functional check saves time and prevents stranded scenarios.
Maintenance and long-term care after replacement
After completing the replacement, establish a routine of periodic inspection of the fuse box and associated wiring. Look for signs of corrosion, melted insulation, or loose connectors and address them promptly. Keep the fuse box clean and dry, and protect it from exposure to moisture and vibration. Maintain the battery and electrical connections by cleaning terminals and applying dielectric grease as needed. Document any modifications and prefer OEM or OEM-equivalent components for the greatest reliability. Regular inspection helps extend service life and reduces the likelihood of future electrical faults.
Tools & Materials
- Socket wrench set(Include metric sizes 8-14mm; extension bar helpful)
- Flat-head screwdriver(Small pry tool for trim cores)
- Phillips screwdriver(For mounting screws)
- Plastic trim removal tools(To avoid marring panels)
- Replacement fuse box assembly (vehicle-specific)(Ensure compatibility with 2004 Ford Expedition)
- New fuses (assorted amperages)(Blade fuses; match original ratings)
- Electrical contact cleaner(Clean connectors before seating)
- Dielectric grease(Apply to plug contacts to prevent corrosion)
- Multimeter (optional, for continuity testing)(Useful for verifying circuits)
- Battery disconnect tool or insulated pliers(Safely disconnect the negative terminal)
- Safety gloves(Protect hands from sharp edges and acid splashes)
- Safety glasses(Eye protection during dismantling)
- Magnetic parts tray or labeled containers(Keep screws and clips organized)
- Torque wrench (optional)(Use if torque specs are listed for bolts)
Steps
Estimated time: 1.5-3 hours
- 1
Disconnect battery and prep workspace
Park on a level surface, apply parking brake, and wear PPE. Remove the negative battery terminal with a battery disconnect tool or insulated pliers. Wait 60 seconds to discharge residual energy and inspect for any signs of damage or corrosion.
Tip: Take photos of each view before disconnecting to aid reassembly. - 2
Access fuse boxes and review the diagram
Open the under-hood fuse box and locate the interior cabin box. Compare the fuse map to your vehicle’s manual and label circuits you’ll work on. If you’re unsure, consult the owner’s manual for the exact layout before touching connectors.
Tip: Have a flashlight and camera ready to capture connector orientation. - 3
Document and remove the old fuse box fasteners
Using the socket set, remove mounting screws and keep them with the support brackets. Do not drop or scratch the mounting surface. Disconnect any retaining clips but keep track of their positions so you can reinstall them later.
Tip: Store all fasteners in a labeled tray to prevent loss. - 4
Disconnect wiring harnesses
Carefully release each wiring harness from the old fuse box. Note the orientation and grouping of plugs. If a connector is stubborn, avoid forcing it; check for a secondary latch and wiggle gently while pulling.
Tip: Label connectors with tape to simplify reassembly. - 5
Transfer brackets or relays if needed
Move any support brackets or relays to the new fuse box. Some replacements require bracket transfer for a secure fit; ensure all mounting holes align before proceeding.
Tip: Keep track of which relays came from where to avoid misplacement. - 6
Install the replacement fuse box and reseat connectors
Mount the new fuse box, tighten screws to snug but not over-tight, and reconnect all harnesses in their correct positions. Reconnect the ground strap if present.
Tip: Coat contacts with dielectric grease before seating to reduce future corrosion. - 7
Install fuses and verify seating
Insert fuses in their prescribed slots as per the fuse map. Make sure each fuse sits fully and seats flush.
Tip: Do not mix up fuse ratings; double-check against the map. - 8
Reconnect battery and perform functional tests
Reconnect the negative terminal, power on the ignition, and test critical systems (lights, windows, HVAC, and accessories). Use a multimeter if you have it to verify continuity on suspect circuits.
Tip: If a fuse blows or a circuit remains dead, recheck the wiring harness and seating.
Your Questions Answered
Is replacing the fuse box necessary, or can I simply replace blown fuses?
A damaged fuse box or corroded connectors often requires replacement rather than just swapping fuses. Replacing the entire box addresses underlying damage and improves reliability over repeatedly blown fuses.
If the box or its connectors are damaged, replacing the fuse box is usually necessary rather than just replacing fuses.
What signs indicate a defective fuse box on a 2004 Expedition?
Frequent fuse blows, intermittent electrical failures, burning smells, or scorched connectors near the fuse box indicate a problem requiring inspection, repair, or replacement.
Look for frequent fuse blows, burns, or intermittent electrical issues near the fuse box.
Can I drive the vehicle after I start this replacement?
Avoid driving if critical systems are affected during replacement. Arrange safe transport to a repair location if needed and complete a thorough post-install test before any road use.
Don’t drive if essential systems aren’t functioning after you start the replacement.
Do I need professional help for a 2004 Ford Expedition fuse box replacement?
If you’re not comfortable with wiring and vehicle electronics, it’s wiser to hire a professional. A trained technician can ensure correct wiring, fuse sizing, and safe reassembly.
If you’re unsure about any step, consult a professional.
Where can I source a replacement fuse box for this model year?
Look for OEM-compatible aftermarket units or salvage-yard components. Verify year, model, and connector layout to ensure compatibility with your 2004 Ford Expedition.
Get a compatible replacement from trusted vendors or salvage yards.
What maintenance helps prevent fuse box issues?
Regularly inspect terminals for corrosion, keep connections clean and dry, and replace damaged wiring promptly to prevent future faults.
Regular checks and clean connections reduce future problems.
Watch Video
Highlights
- Verify fuse box compatibility before purchase.
- Disconnect the battery before starting work.
- Label connectors and keep parts organized during replacement.
- Test all major systems after installation to confirm proper operation.
