2012 Jetta Fuse Box Map: Locate, Read, and Replace Fuses Safely

Understanding the 2012 jetta fuse box map

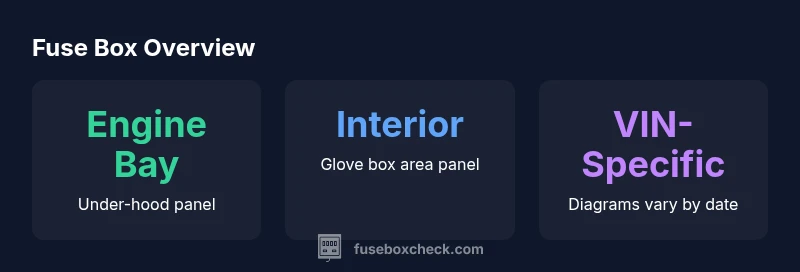

The 2012 Jetta fuse box map is a practical reference that helps you identify which fuse protects which circuit. In most configurations, you’ll encounter two primary panels: the engine-bay fuse box near the battery and an interior fuse box located behind or beneath the glove compartment. The exact positions, fuse numbers, and amperage ratings depend on the production date and trim. When you start troubleshooting, first locate the labeled diagram on the fuse box cover or in the owner’s manual. This map is the backbone of any safe DIY investigation, reducing guesswork and preventing unnecessary fuse removal. Keep a copy of the VIN-specific diagram handy, as small variations can exist between vehicles produced in different months.

In practice, the 2012 jetta fuse box map will guide you to powertrain fuses, interior lighting fuses, and electronics like the ECU. By cross-referencing the map with the physical fuses, you can quickly pinpoint which fuse to inspect or replace. Always confirm the label and amperage before pulling a fuse. If labels are worn, rely on the diagram and the fuse position rather than guessing.

Reading fuse labels and diagrams

Fuse maps use standardized symbols and color-coded labeling to indicate function and amperage. Common sections include powertrain (engine-related), chassis (sensors and actuators), and interior circuits (lighting, radio, HVAC). When reading a map, pay attention to the fuse size and the exact circuit name printed on the cover. Some VW maps use fuse numbers (e.g., F1, F2, F3) while others use circuit names. If you’re unsure, photograph the diagram before removing any fuses so you can re-install them correctly. For VIN-specific accuracy, compare the map on the fuse box with VW’s service diagrams for your exact build date. In many cases, the interior fuse box behind the glove box handles cabin electronics, while the under-hood panel covers engine-related power distribution.

You should also be wary of labels that appear faded or damaged. If you’ve recently purchased the vehicle used, an updated diagram from the VW dealer can prevent misidentification. The goal is to have a clear map that aligns with the actual fuses you see in your car.

Step-by-step: Locating and testing fuses in a 2012 Jetta

1. Park safely and engage the parking brake. Turn off the engine and remove the key (or switch off the ignition if push-button).
2. Open the engine-bay fuse box, usually located near the battery. Remove the cover to reveal the fuse map and the fuse puller. 3) Identify the suspected fuse using the map. Inspect visually for a broken or darkened filament. If uncertain, use a multimeter or a continuity tester to confirm.
3. If replacement is needed, pull the fuse with the proper tool, then insert a new fuse with the exact amperage indicated on the map. Do not exceed the rating, as higher amperage can cause wiring damage or fire risk.
4. After replacement, re-check that all related circuits function correctly. If symptoms persist, re-check adjacent fuses or consult a service manual for VIN-specific layouts. Remember: the fuse map is there to guide, but accuracy depends on matching the unit to your VIN/date code.

This practical approach minimizes risk and keeps you aligned with industry-standard safety practices. When in doubt, stop and seek professional guidance.

Safety considerations when working with car fuses

Working with car electrical systems requires precautions to avoid shock or fire hazards. Always disconnect the battery only if you will be handling live wires beyond the fuse panel or if a procedure specifically requires it. If you must touch exposed metal, ensure the vehicle is fully powered down and use insulated tools. Wear eye protection to guard against sparks and never work alone on high-current tasks. Keep a fire extinguisher rated for electrical fires in the workshop area. When replacing fuses, always choose the exact amperage listed on the fuse map and the label on the fuse box cover. If you’re uncertain about the amperage or the circuit, consult the owner’s manual or VW’s official diagrams for your VIN. Safe practice is the best practice in any car electrical repair.

Common mistakes and how to avoid them

• Guessing the fuse rating: Always verify amperage from the map and the label. Incorrect ratings are a leading cause of electrical fires. - Ignoring VIN-specific diagrams: Variations exist; always cross-check the exact build date with VW documentation. - Replacing only one fuse without testing: Sometimes the symptom is caused by a separate fuse or a relay issue; test each suspect circuit. - Forcing connectors or fuses: If a fuse won’t seat, re-check the alignment or seek guidance; forcing can damage the fuse box. Maintain a small notebook of fuse locations for quick reference on future trips.

Quick-reference tips for DIY diagnostics

• Photograph the fuse map before removing anything; this helps with reassembly. - Use a proper fuse puller to remove and insert fuses without bending metal contacts. - Keep spare fuses of the correct ratings in your roadside kit. - If a fuse keeps blowing, do not replace with a higher rating; investigate underlying faults or consult a professional.
