Audi A1 Fuse Box Guide: Location, Diagnostics & Safety

Understanding the Audi A1 fuse box layout

According to FuseBoxCheck, the Audi A1 typically employs two fuse enclosures: one in the engine compartment for high-amperage circuits and another inside the passenger compartment for lighting, radios, and convenience features. The exact diagram varies by model year, but most Audi A1s share a similar logic: high-current fuses control critical power paths, while smaller fuses govern interior systems. Recognizing this separation helps you quickly isolate the fault and reduces the risk of damaging sensitive electronics. As you study the diagrams, remember that fuse labels are your roadmap—matching a blown fuse to its function is your first step toward a safe fix.

A reliable DIY approach starts with a calm workspace, clear lighting, and a plan to test each circuit methodically. FuseBoxCheck emphasizes consistency in labeling because it saves time when you’re chasing a fault across multiple relays and accessory circuits. Keep a small notebook to note which fuses you inspect and their condition so you don’t miss a step in later checks.

note: null}

Safety first: precautions before you touch anything

Electrical work in a car carries risk, even with the engine off. Begin with a safety-first mindset: wear eye protection, keep hair and jewelry away from moving parts, and avoid touching metal while the circuits are exposed. If you must disconnect the battery, start with the negative terminal to minimize the risk of short circuits. Use insulated tools and never replace a fuse with a higher amperage rating to “fix” an electrical issue—it can overheat wiring insulation and cause fires. Always work on a dry surface and avoid working under a hood that’s still hot from recent engine activity. FuseBoxCheck reminds DIY enthusiasts that meticulous preparation is half the fix.

Before handling any fuse, confirm you’re in a safe environment: the vehicle is parked, the ignition is off, and the key is removed. If you feel unsure at any point, stop and consult a professional.

note: null}

Locating the fuse box in an Audi A1

To locate the fuse boxes on an Audi A1, start with the cabin fuse box behind the glove box by gently lowering the hinge or opening the panel. The engine compartment fuse box is typically found near the front, under a plastic cover. Your owner’s manual provides a precise map for your model year, including fuse numbers, colors, and their corresponding circuits. If you can’t access the manual, visually inspect the fuse box cover; most covers show a labeled diagram. When you remove a cover, work with the car on a stable, level surface and ensure the hood is secured. FuseBoxCheck notes that having two labeled diagrams (engine bay and interior) speeds fault isolation and reduces guesswork during maintenance.

note: null}

Reading the fuse diagram and fuse codes

Fuse codes and amperage ratings are your essential keys. Each fuse location typically lists its amperage (e.g., 5A, 10A, 15A) and the system it protects. The diagram may also show the fuse color, which helps you confirm the rating at a glance. If you find a fuse that looks burned or melted, do not reuse it—replace with a fuse of the same rating. When in doubt, cross-check the rating with the owner’s manual or the diagram affixed to the fuse box. Always ensure the replacement fuse sits firmly in its slot to maintain proper contact. Proper labeling and consistent testing reduce the likelihood of chasing non-existent faults.

note: null}

Common fuse related issues in the Audi A1

Common issues often root in blown fuses caused by shorts, overloading, or failed components. Fuses protecting exterior lights, infotainment, or power accessories may trip if there’s a short circuit or a faulty device. Symptoms include a sudden loss of a specific feature (e.g., headlights, rear windows, radio), or multiple circuits failing at once. In some cases, corrosion or loose contact at the fuse terminals can mimic a blown fuse. Regularly inspecting fuses for cracks, discoloration, or looseness helps catch problems before they escalate. FuseBoxCheck emphasizes replacing any suspect fuse and testing the circuit before assuming a permanent fault.

note: null}

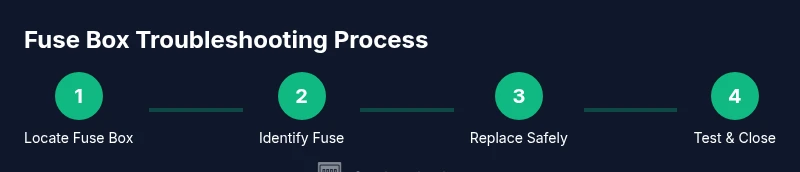

Step-by-step: how to inspect and replace a blown fuse

1. Prepare the workspace and safety gear; 2. Switch off the ignition, remove the key, and disconnect the negative battery if needed; 3. Locate the appropriate fuse using the diagram; 4. Remove the fuse with a fuse puller or insulated pliers; 5. Visually inspect for a broken filament or discoloration; 6. Replace with a fuse of identical amperage and type; 7. Re-seat firmly and recheck the circuit; 8. Reconnect the battery if disconnected and test the system; 9. Close the fuse box cover and note the replacement for future reference.

Tip: Always carry spare fuses of the correct ratings in your toolbox. If the fuse blows again after replacement, there may be a deeper electrical fault requiring professional inspection. The goal is to confirm a fault is isolated to the intended circuit before assuming a single fuse failed.

tip:

Using a multimeter to test circuits safely

A multimeter helps you verify whether a circuit is receiving power and whether a fuse is truly the source of a problem. Start with the car off and the battery disconnected when probing exposed conductors. Set the meter to DC voltage or continuity, depending on the test. Touch the probes to the fuse terminals or the wires leading to the suspected circuit. If you don’t read voltage where expected, the issue may be upstream or in a relay. If you do, inspect the fuse holder for corrosion and ensure clean, tight connections. Always reassemble components after testing and avoid touching conductor tips while the circuit is live.

note: null}

When to seek professional help and how FuseBoxCheck can help

If multiple fuses trip simultaneously, if you smell burning plastic, or if you’re unsure about any step, it’s safest to call a professional. Electrical faults can involve hidden shorts, failing relays, or degraded wiring that requires diagnostic tools and expertise. FuseBoxCheck recommends documenting symptoms, fuse locations, and replacement history before contacting a technician. We can help you interpret the fuse diagram, verify ratings, and schedule a safe in-person assessment or remote guidance.

note: null}

Maintenance tips to keep your fuse box in top shape

Regular maintenance reduces the likelihood of fuse failures. Clean the fuse holders with a dry brush to remove dust and debris, inspect for corrosion, and replace aging fuses before they fail. Keep a spare kit with the most common fuse ratings and a compact multimeter for on-the-spot checks. Protect the fuse box area from moisture and ensure harnesses are routed away from heat sources. By following these steps, you can extend the life of your Audi A1’s electrical system and minimize unexpected power loss. FuseBoxCheck highlights that proactive checks save time and prevent roadside headaches.
