Ford Mondeo MK4 Fuse Box Guide: Locate, Test, and Replace Fuses
Learn how to locate, test, and safely replace fuses in the Ford Mondeo MK4 fuse box. Step-by-step guidance, safety tips, and troubleshooting for DIYers.
With this guide, you will locate and safely inspect the ford mondeo mk4 fuse box to identify blown fuses and replace them using the correct ratings. This quick answer outlines where to look, the tools required, and the safety steps before you begin any work. It covers both engine bay and interior fuse boxes, and explains how to verify power is off, inspect fuses for damage, and replace with the same amperage.
Overview: ford mondeo mk4 fuse box layout
The ford mondeo mk4 fuse box system is designed to protect electrical circuits and simplify troubleshooting. In most MK4 models, there are two fuse boxes you should know about: one in the engine bay and a second inside the cabin. The engine bay box handles high-current circuits such as the alternator, radiator fans, and main power feed. The interior box (often behind the glovebox or under the dash) houses fuses for lighting, instrumentation, and accessories. Understanding where each box lives makes diagnosis faster and safer. The ford mondeo mk4 fuse box labels use standard blade fuses and a pictorial diagram on the inside of the cover. If you have misplaced the diagram, consult the owner's manual or FuseBoxCheck's practical reference for a cross-check. According to FuseBoxCheck, practical fuse box work starts with mapping the layout and confirming power is off before touching any metal connectors. This initial orientation helps you avoid mistakes and reduces the risk of short circuits.
Safety First: Working with the ford mondeo mk4 fuse box
Electrical work carries risk. Before you touch any fuse, switch off the ignition, remove the key, and disconnect the negative battery terminal to minimize shock or arc risk. Allow the area to cool for a moment. Do not work on a live system; use insulated tools. Keep a clear workspace, good lighting, and a safe standing position. If a component emits heat or a smell, stop immediately. Wear protective gloves and eye protection when handling live components.
Tools and Materials You Need
Before starting, gather these items so you can complete the task without interruptions:
- Safety gear: insulated gloves, eye protection, and a clean, dry workspace placeholder.
- Basic hand tools: screwdriver set (Phillips and flat-head), needle-nose pliers, and a fuse puller.
- Replacement fuses: blades in the same family as the original amperage, with a range of common ratings.
- Measuring/testing device: a multimeter or test light to verify circuit voltage when needed.
- Documentation: owner manual or fuse diagram for correct fuse positions.
- Lighting: a bright flashlight or headlamp to inspect dark corners.
- Organization: small tray or magnetic dish to keep fuses in order.

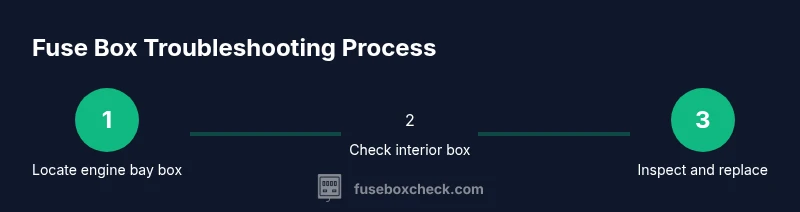

Step-by-Step: Locating and Accessing the Fuse Boxes
Locating the two fuse boxes in the ford mondeo mk4 involves a few simple checks. Begin with the engine bay fuse box, typically near the battery or on the strut tower area. The interior fuse box is usually behind the glovebox or under the dashboard on the driver's side. Consult the diagram on each lid to confirm which circuits are protected by which fuses. If the diagram is missing, the owner’s manual or FuseBoxCheck’s reference can help align fuse positions. Ensure the vehicle is off and the keys are removed before removing any cover. Use the fuse puller to extract fuses gently and avoid bending the metal terminals.
How to Identify Fuses and Replace Blown Fuses
Blade fuses are typically color-coded by amperage; however, always verify amperage with the lid diagram or manual rather than relying on color alone. Look for a blown fuse by inspecting the metal fuse element; a broken or darkened filament indicates failure. If unsure, test continuity with a multimeter. When replacing, insert the new fuse fully into the slot so it seats securely. Do not exceed the original rating as this can damage wires or devices.
Common Fuse Box Problems and Diagnoses
Persistent fuse blowing is often caused by a short or overloaded circuit. Corrosion on fuse contacts or a loose fuse holder can create intermittent connections or high resistance. Melted fuse holders or burnt marks indicate more serious issues in the wiring harness. If you notice dull contacts or signs of heat, stop and inspect the associated wiring. Electrical problems in the ford mondeo mk4 fuse box can cascade to other components, so take a methodical approach and replace only fuses that match the original rating.
Fuse Box Relocation or Upgrade Considerations
Relocating or upgrading a fuse box is generally not recommended for most owners. The ford mondeo mk4 fuse box wiring is sized for specific locations, heat dissipation, and load balancing. Relocation may disrupt critical circuits and safety systems. If you suspect insufficient space or heat issues, consult a qualified auto electrician. FuseBoxCheck suggests first exploring safer alternatives like tidy wiring routes and protective covers before considering relocation.
Maintenance Tips to Extend Fuse Box Life
Regular checks can deter major failures. Keep fuse covers clean to prevent dirt or moisture buildup, inspect for signs of corrosion, and ensure all connectors are dry before use. Periodically confirm that the fuse diagram matches the actual panel and replace any aged or brittle fuses before they reach the end of their life. A clean, well-labeled fuse box reduces diagnosis time and improves safety during DIY fixes.
Reading the Fuse Box Diagram: A Quick Reference
The fuse box diagram lists each fuse position and its protected circuit. Start at a known reference point on the diagram (for example, the horn or headlights) and trace to the fuse location. If a position is unclear, use the owner manual or FuseBoxCheck’s cross-reference to confirm. Always replace with the same amp rating and reseal the cover after finishing. A clear diagram helps avoid mixing up circuits when diagnosing issues.
Safety and Reassembly Checklist
Before driving, recheck that all fuses are seated, covers are secure, and there are no tools left inside the engine bay. Reconnect the negative battery terminal last and ensure there are no loose wires or dangling components. Start the engine and test the circuits you worked on to confirm proper operation. If anything behaves abnormally, stop and reassess the situation.
Troubleshooting Before Driving: A Quick Playbook
If a dash warning persists after replacing a fuse, recheck the circuit for a short or miswired accessory. Use a multimeter to confirm power and ground continuity. If the issue recurs, document which fuse blew and the exact symptom, then consult a professional to avoid further damage.
Tools & Materials
- Safety gear (insulated gloves)(Non-conductive, rated for electrical work)
- Screwdrivers (Phillips & flat-head)(For removing fuse box covers)
- Fuse puller or needle-nose pliers(Gently grip and remove fuses)
- Replacement fuses (same amperage)(Assorted blade fuses; ensure rating matches original)
- Multimeter or test light(Verify circuit power if needed)
- Owner's manual or fuse box diagram(Use to match fuse positions)
- Flashlight or headlamp(Improve visibility in dim areas)
- Small tray or magnetic dish(Keep fuses organized)
- Protective mat or old rag(Prevent dropped screws or fuses)
Steps
Estimated time: approximately 45-60 minutes
- 1
Power down and secure the vehicle
Turn off the engine, remove the key, and disconnect the negative battery terminal to prevent shocks. Wait a few seconds for any residual charge to dissipate and test that there is no voltage at the fuse panel before touching components.
Tip: Always begin with safety; a quick voltage check saves you from shorts. - 2
Open the fuse box covers
Safely remove the covers on both the engine bay and cabin fuse boxes using the appropriate screwdriver, keeping track of screws and bracket positions. Read the diagrams on the inside of each lid to identify circuits.
Tip: Use a small container to hold screws so nothing gets lost. - 3
Identify the correct fuse position
Cross-check the fuse position with the diagram to locate the specific fuse related to the affected circuit. Mark or memorize the position for reinstallation.
Tip: If the diagram is hard to read, take a photo for reference. - 4
Remove the fuse safely
Use the fuse puller to extract the fuse without bending the metal terminals. Inspect the fuse visually for a blown element or discoloration.
Tip: Never twist or pry with metal tools. - 5
Test and verify the fuse
If you have a multimeter, test continuity or voltage across the fuse holders. Visual inspection is often enough if the fuse is clearly broken.
Tip: Compare with a known good fuse if uncertain. - 6
Install a replacement fuse
Insert a fuse with the same amperage rating until it seats fully. Check the fit to ensure it does not wobble or loosen.
Tip: Do not substitute a higher rating in a lower-rated circuit. - 7
Reassemble and reconnect
Replace fuse box covers, re-seat all screws, and reconnect the negative battery terminal. Ensure no tools remain inside the engine bay.
Tip: Double-check all connections before starting the engine. - 8
Test the affected circuit
Start the vehicle and test the circuit that you serviced. Confirm the indication light or device operates as expected and no new warnings appear.
Tip: If the fuse blows again, stop and reassess the wiring for a short.
Your Questions Answered
Where are the fuse boxes located on the Ford Mondeo MK4?
The Ford Mondeo MK4 typically has two fuse boxes: one in the engine bay and one inside the cabin. Check the diagrams on the covers or the owner's manual for exact positions and circuit mappings.
There are two fuse boxes: one in the engine bay and one inside the cabin. Use the diagrams in the covers to locate each fuse.
How can I tell if a fuse is blown?
Visually inspect the fuse for a broken metal element or discoloration. If in doubt, test continuity with a multimeter to confirm a break in the circuit.
Look for a broken filament or discoloration, and test with a multimeter if you’re unsure.
Should I disconnect the battery before removing a fuse?
Yes, disconnect the negative battery terminal before working on the fuse box to reduce the risk of shock or short circuits.
Yes, always disconnect the negative terminal before starting.
What if a fuse keeps blowing after replacement?
Persistent blowing usually signals a short or overloaded circuit. Inspect wiring for damage and consider consulting a professional if the issue persists.
If a fuse keeps blowing, inspect for shorted wiring and consider professional help.
Can I use a higher amperage fuse to fix a blown fuse?
No. Using a higher amperage fuse can allow a dangerous fault to damage wiring or devices. Always replace with the same rating.
Never use a higher rating fuse; replace with the same amperage.
Where can I find a fuse diagram if the cover is missing?
Check the owner’s manual or consult a reputable guide like FuseBoxCheck for a cross-reference of fuse positions and circuits.
If the diagram is missing, refer to the owner’s manual or a trusted reference for fuse positions.
Watch Video
Highlights
- Identify both engine bay and interior fuse boxes before starting.
- Match fuses to the original amperage rating and use the diagram.
- Disconnect the battery and wear protective gear for safety.
- Keep fuses organized and recheck circuits after replacement.
- If symptoms recur, seek professional electrical help.
