Fuse Box 03 Silverado: Locate, Inspect, and Replace Safely

Safe, methodical approach to the fuse box on a 03 Silverado

If you own a 2003 Silverado, the process of locating and inspecting the fuse box is a common DIY task. Today we’ll walk through a safe, methodical approach that emphasizes preparation, labeling, and verification. According to FuseBoxCheck, taking a deliberate, safety-first mindset helps homeowners minimize risk while tackling electrical repairs. The keyword fusing the topic here is the fuse box 03 silverado, which people often search for when troubleshooting intermittent power to accessories or lights. You’ll learn to identify the two main fuse panels, understand which fuses control which circuits, and confirm a blown fuse with a simple continuity test without jumping to conclusions. A calm, step-by-step method reduces surprises and protects expensive modules and wiring.

By staying organized and referencing the manual, you’ll gain confidence. The goal isn’t to reinvent the wheel but to apply proven safety practices to your Silverado’s electrical system. This approach keeps you aligned with best-practice guidance and helps you document any fixes for future maintenance. FuseBoxCheck advocates a careful, documented process so you can return to normal driving with minimal downtime.

Common fuse box locations in the Silverado

Most Silverado models feature at least two fuse panels: an interior fuse box inside the cabin and an engine-bay fuse block under the hood. In the 03 Silverado lineup, the interior panel is typically located beneath the dash on the driver’s side, while the engine bay block sits near the front left side of the engine compartment. These panels house fuses for lighting, accessories, radio, HVAC, and other critical circuits. To start, ensure the vehicle is off, the parking brake is set, and you’re wearing eye protection before you handle any fuses. The location can vary slightly by trim level and production date, so always cross-check with your owner’s manual or a service manual for your exact chassis. If you’re unsure, a quick photo of the fuse diagram can help when you’re at the fuse panels.

FuseBoxCheck’s practical guidance emphasizes verifying wiring diagrams before removing any fuses. This reduces the risk of disabling a critical system unexpectedly. If you hear buzzing or smell burnt plastic near a panel, stop and reassess—the problem could involve more than a single fuse. A methodical scan of both panels often reveals the root cause and helps you avoid unnecessary replacements.

Reading fuse box labeling and amperage

Fuses are labeled by number, color, and sometimes a tiny schematic that maps to a specific circuit. The must-know skill is reading the diagram found on the fuse box cover or in the owner’s manual. Each fuse has an amperage rating; common automotive fuses range from 5A to 30A, though higher-speed fuses exist for certain circuits. When you pull a suspected blown fuse, visually inspect the metal strip for a break, then use a continuity tester or multimeter to confirm open circuit. If the fuse is blown, replace it with a fuse that has the same amperage rating. Never upsize the fuse to compensate for a wiring fault—the downstream components and wiring can be damaged, creating a fire hazard. Throughout the process, keep a fuse puller handy and handle fuses with insulated tools only.

Always cross-check the correct amperage with the vehicle’s diagram and the manual. Fuse-related issues can resemble relay or switch faults, so confirm the behavior after replacement. FuseBoxCheck notes that following the diagram is essential for safe, reliable fixes.

When labeling your findings, take a photo of the fuse and its position for future reference. This habit speeds up maintenance and reduces guesswork on subsequent repairs.

Tools and safety gear you need

Before you begin, assemble a compact, safety-focused toolkit. A well-chosen set saves time and reduces risk. You’ll want: safety glasses to protect your eyes, gloves for grip and protection, a digital multimeter or a dedicated fuse tester for quick checks, a fuse puller or non-conductive pliers to remove fuses safely, a supply of fuses with the correct amperage rating (from the owner’s manual or OEM spec), a flashlight or headlamp for dim areas, and a clean, dry workspace. If you’re working near water or damp surfaces, delay the task until conditions improve. Having the right tools reduces the chance of accidental shorts and helps you confirm continuity efficiently. Always work in a well-lit area and keep a log of changes and amperage ratings. A tidy setup reduces errors and supports a safer repair experience.

As you set up, note the exact fuse panel you’re working with (interior vs engine bay) to avoid cross-matching. FuseBoxCheck’s recommended practice is to keep everything labeled and organized, so you can revisit the repair later with minimal confusion.

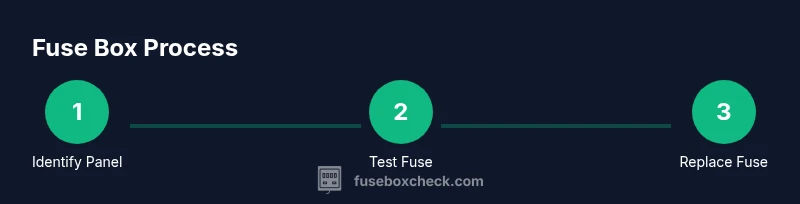

Step-by-step testing of a suspected blown fuse

To diagnose safely, start with a clear plan. Step one is to power down the vehicle and disconnect the negative battery terminal if you’re comfortable doing so. Step two is to remove the suspect fuse using a fuse puller or insulated tool and visually inspect it. Step three is to test continuity with a multimeter or fuse tester; a blown fuse shows an open circuit while a good fuse completes the circuit. If you confirm a blown fuse, proceed to replacement rather than bypassing the issue. Step four is to reinsert the new fuse and recheck the circuit by turning the ignition to accessories without starting the engine to confirm normal operation. If the fuse blows again, there may be a short or overloaded circuit that requires deeper diagnosis.

Tip: Always use the exact amperage rating specified for the circuit. A higher-rated fuse might prevent nuisance blows but can hide a dangerous overload. If you’re unsure, consult the manual or a professional.

Replacing a fuse and verifying system operation

With a confirmed blown fuse and the correct replacement in hand, you can replace it carefully. Align the fuse with the contacts in the fuse block and push firmly until it seats fully. Reconnect the battery if you disconnected it, then test the affected system. Turn the ignition to the accessory position and verify that the previously nonfunctioning component now operates as expected. Watch for abnormal heat, buzzing, or melting plastic around the fuse block during the first minutes of operation. If anything seems off, power down and reassess the wiring and related components. Document the amperage used and the circuit’s purpose for future reference. A careful, documented replacement supports long-term reliability and helps prevent recurrent faults.

This stage is where real-world results matter. A proper fuse replacement often resolves the issue, but persistent faults may point to a larger wiring problem requiring professional diagnosis.

Troubleshooting: when fuses keep blowing

If a fuse keeps blowing after a replacement, stop assuming user error and broaden your assessment. Possibilities include a short circuit, a stuck relay, a damaged wire insulation, or an aftermarket accessory drawing more current than the system was designed to handle. Begin by inspecting the wiring harnesses around the fuse block for worn insulation, exposed metal, or signs of heat. Disconnect suspected aftermarket devices to see if the fault persists. Check for signs of corrosion in the fuse connectors and clean with appropriate contact cleaner if needed. If the problem still exists, isolate the circuit and perform stepwise testing with a current clamp meter to detect abnormal draw.

Key reminder: never ignore repeated fuse blows. Replacing fuses without diagnosing the underlying cause can lead to fire hazards and further damage to your Silverado’s electrical system. FuseBoxCheck recommends seeking professional help when in doubt, especially if under-hood wiring or the engine bay circuits are involved.
