Fuse Box Ford Escape: Practical Troubleshooting Guide

Location and Scope of the Ford Escape Fuse Boxes

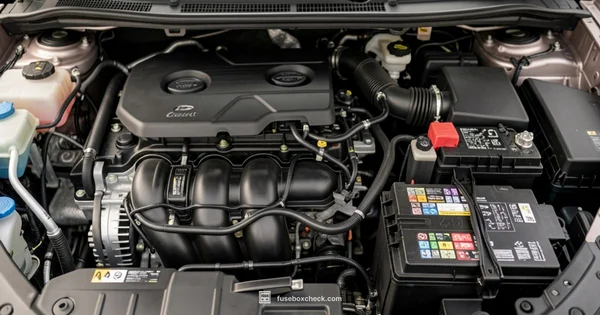

The Ford Escape typically uses two fuse enclosures: an interior cabin fuse box located under the dash near the driver’s knee and an engine bay fuse box (often referred to as the power distribution center). The exact layout and fuse mapping can vary by model year and trim. Always start by consulting the vehicle’s owner manual or the fuse box cover, which usually shows a diagram with circuit labels and amperage ratings. For DIY electrical care, treat both boxes as potential culprits when you experience non-functioning accessories, lights, or power windows. If a fuse blows repeatedly, the issue may be broader than a single circuit, such as a short in wiring or a failing relay. Fuse selection should follow the label on the fuse diagram; never substitute an improper amperage fuse without understanding the circuit’s demand.

In practice, plan to inspect one box at a time to avoid confusion and to keep the work area organized. Use a flashlight, a clean surface, and a way to label circuits as you test them. If you’re unsure about the exact fuse location for your specific Ford Escape year, check online resources or the dealer’s service bulletin database to confirm the correct diagram. This approach reduces guesswork and protects sensitive electronics from accidental power surges.

Safety-first: prerequisites and protective steps

Before touching any fuse box, ensure the ignition is off and the key is removed. Engage the parking brake and, if you plan to disconnect the battery for more certainty, disconnect the negative terminal using insulated tools and at a safe pace. Wearing gloves reduces the chance of cuts from sharp metal edges or exposed connectors. Keep metal jewelry away from the fuse area to minimize the risk of short circuits. A clean, dry workspace helps prevent moisture intrusion into the fuse boxes and electrical components. If you’re working in a cold or humid environment, give components time to acclimate to room temperature to reduce condensation risk.

Documenting the current state with a quick photo can help you reassemble the panel correctly. When in doubt, consult the owner’s manual or a service manual for exact amperage ratings and fuse types. Fusible links and relays sit adjacent to regular fuses and can mimic fuse failures in some circuits, so don’t ignore non-obvious symptoms like intermittent power or flickering lights.

Understanding fuse types, amperage, and labeling

Fuses in modern vehicles are color-coded and labeled with amperage (e.g., 10A, 15A, 20A). Ford Escape diagrams may show blade-type fuses for interior circuits and different forms in the engine bay. The correct approach is to replace a blown fuse with one of the same amperage rating; using a fuse with higher amperage may allow the circuit to overheat and could cause wiring damage or fire risk. Some circuits use mini fuses or micro fuses, which require a small fuse puller or needle-nose pliers for removal. If the fuse appears intact but the circuit remains dead, the problem could be a broken relay, a corroded connector, or a short elsewhere in the wiring. Always inspect the fuse holder for corrosion or discoloration, and replace any damaged components along with the fuse if needed.

When labeling, record the circuit name from the diagram and note its amperage. This makes future maintenance easier and reduces the chance of incorrect fusing. If you lack a diagram, seek a reputable online OEM diagram or community guide for your year model. Correct labeling helps you troubleshoot efficiently and keeps the cabin tidy.

Safe testing: verifying a blown fuse and diagnosing the circuit

Testing a fuse requires caution and a systematic approach. Start with the ignition off and the fuse cover removed. Visually inspect the fuse; a blown fuse often has a broken metal link or a milky appearance inside the clear plastic. If you’re unsure, use a multimeter in continuity mode or a dedicated fuse tester to confirm a break in the circuit. For continuity testing, place probes on both fuse terminals; a continuous beep indicates a good fuse, while no beep indicates a blown fuse. When testing, avoid touching metal parts with bare skin and keep power tools away from damp surfaces. If the fuse tests good but the circuit remains dead, inspect the fuse box contacts for corrosion or a loose blade connection, and examine the relay controlling that circuit.

Document any abnormal findings and consider testing related circuits that share a common power source. The Ford Escape’s fuse network is designed to protect sensitive electronics, so a failing fuse is often a symptom of a larger issue than a single blown fuse.

Replacing a blown fuse in the Ford Escape: step-by-step

If you confirm a blown fuse, replace it with the exact same amperage rating and type (blade or mini) as indicated by the diagram. Use a fuse puller or insulated pliers to remove the blown fuse and insert the new one firmly until it sits flush. After replacement, recheck the circuit immediately to confirm power restoration. Do not test a circuit by turning on the ignition repeatedly while a fuse is removed; instead, test with caution to prevent backfeed or short circuits. If the new fuse blows again, stop driving and investigate for shorts, damaged wires, or faulty relays. In some cases, moisture ingress or battery ground issues can cause repeated blows.

Carefully reassemble the fuse panel and secure all screws or latches. Keep spare fuses in a labeled container in the glove box for quick access. If you’re not confident replacing a fuse, seek assistance from a qualified technician or an experienced DIYer who can guide you through the correct amperage ratings and wiring paths.

Diagnosing related electrical symptoms: beyond the fuse

A blown fuse can be a symptom of a broader electrical fault. If multiple circuits fail simultaneously or repeatedly, check for a weak battery, alternator issues, or grounding problems. Inspect main power feeds and the battery negative terminal for corrosion or loose connections. A failing relay can mimic a blown fuse by interrupting current to a branch circuit; in this case, swapping the suspected relay with a known-good unit can help confirm the fault. Also consider moisture intrusion under the hood or in the cabin that may short out connectors. After replacing a fuse, operate the affected device and nearby accessories to confirm stability. If the symptom persists, systematically test each connector and wire run that feeds the circuit. Persistence of issues despite proper fusing indicates a wiring fault that may require professional repair.

Maintenance, prevention, and safe handling for fuse boxes

Regular maintenance of your Ford Escape fuse boxes reduces the odds of unexpected failures. Periodically inspect fuse holders for corrosion, ensure blade contacts are clean and seated, and replace any damaged covers to protect against moisture. Keep a small toolkit and spare fuses with clear labeling in the glove box, and consider adding a lightweight voltmeter for quick checks on battery health. When cleaning around the fuse areas, avoid spraying water or cleaners directly onto the fuses. If you notice frequent fuse blows, a diagnostic scan may reveal circuit irregularities, such as compromised insulation or degraded wiring insulation near moving parts. Preventative care also includes noting the circuits that share a power feed, so you can avoid unnecessary disconnections when performing maintenance on one area of the car’s electrical system.

Common mistakes to avoid and how to troubleshoot efficiently

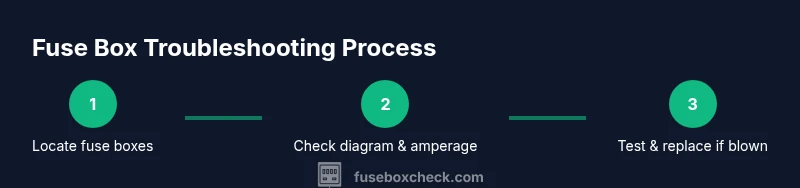

Common mistakes include using a higher-amp fuse to bypass a blown fuse, failing to disconnect the battery when required, and neglecting to inspect relays and connectors. Another pitfall is using non-OEM or generic fuses that do not have precise tolerances. Always refer to the diagram for the exact amperage and type, and replace any corroded contact surfaces. To troubleshoot efficiently, create a simple checklist: confirm ignition off, verify diagram and fuse amperage, test continuity, inspect contacts for corrosion, replace fuse, and re-test. If issues persist, consult a professional to avoid potential electrical fires or component damage.

Wrap-up: maintain confidence with a documented approach

By following a structured process for locating, testing, and replacing fuses in the Ford Escape, you can handle most fuse-related electrical issues without specialized tools. The key is patience, proper safety gear, accurate labeling, and an emphasis on diagnosing underlying causes rather than merely addressing symptoms. Regular checks and a well-organized fuse box will empower you to keep your vehicle’s electrical system reliable.
