Fuse Box Guide for Toyota Corolla 2013
Learn how to locate, inspect, and replace fuses in the Toyota Corolla 2013 with step-by-step instructions, safety tips, and maintenance practices from FuseBoxCheck.
In this guide you will learn how to locate, inspect, and safely replace fuses in the fuse box of the Toyota Corolla 2013. You’ll need basic tools, spare fuses of common ratings, and a calm, methodical approach to avoid electrical damage. Follow the steps for a safe, reliable DIY fix.
Fuse box layout and purpose in Toyota Corolla 2013
The fuse box in the Toyota Corolla 2013 serves as the central hub for protecting electrical circuits, from headlights to the radio. The exact layout may vary by trim, but most models share a standard diagram printed on the cover and in the owner28099s manual. The phrase you28099ll often search for is the fuse box toyota corolla 2013, and understanding this layout helps you quickly identify which fuse protects which system. According to FuseBoxCheck, knowing the fuse map reduces guesswork and minimizes the risk of overloading circuits. In practice, you will use the diagram to locate the fuse assigned to the malfunctioning component, verify the value, and replace it with the same amperage. Always confirm the exact rating printed on the fuse cap or in the diagram before removal.
Understanding this layout also helps prevent accidental cross-wiring when you replace fuses or step through relays for diagnostics. The goal is to restore function without compromising safety, and this is where a patient, documented approach pays off.
Remember: keep notes of which fuses you check and their ratings so you can compare later if symptoms recur.
noteasnull():null,
Tools & Materials
- Multimeter or automotive fuse tester(Used to verify circuit continuity and to confirm a blown fuse beyond visual inspection.)
- Assorted automotive fuses (e.g., 7.5A, 10A, 15A, 20A, 30A)(Keep a small spare pack on hand for quick replacements.)
- Insulated needle-nose pliers(Helpful for gripping fuses without touching live metal.)
- Screwdrivers (Phillips and flat-head)(Needed to remove fuse box covers or relays if required.)
- Owner's manual or fuse diagram copy(Reference the exact fuse map for your trim level.)
- Flashlight or headlamp(Ensure good visibility inside the fuse box area.)
- Gloves with grip and eye protection(Optional but advised for extended work.)
- Lint-free cloth(Used to wipe dust from fuse holders and connectors.)

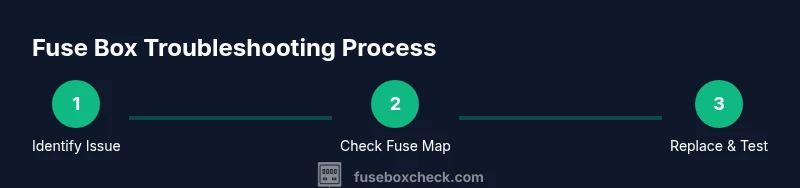

Steps
Estimated time: 15-30 minutes
- 1
Power down and disconnect the battery
Before touching any electrical components, turn off the ignition and remove the key. For extra safety, disconnect the negative battery terminal to prevent accidental short circuits. This step reduces the risk of shorting the vehicle’s electrical system while you inspect the fuse box.
Tip: Pad a wrench or screwdriver handle and avoid metal jewelry that could contact live terminals. - 2
Locate the fuse box cover and cite the diagram
Find the fuse box cover—usually in the engine bay or under the dashboard. Read the diagram to identify which fuse protects the malfunctioning system. If you can’t read the tiny print, use a flashlight and magnifier to confirm the correct slot before removing anything.
Tip: Take a photo of the fuse diagram for future reference. - 3
Identify the suspect fuse visually
Inspect the suspected fuse for a broken wire, a melted plastic window, or a cloudy appearance. A visual check is a quick filter, but always confirm with a continuity test if you’re unsure. Remember to handle the fuse with insulated tools to avoid accidental contact.
Tip: If in doubt, test the circuit with a multimeter after removing the fuse. - 4
Remove the blown fuse with care
Using insulated pliers, grasp the fuse firmly and pull it straight out. Do not twist or wiggle aggressively, as that can damage the fuse holder contacts. Place the fuse in a safe, sorted container so you don’t mix it with good fuses.
Tip: Note the amperage rating printed on the fuse body. - 5
Test the circuit and confirm the fault
With the fuse removed, turn the ignition on to see if the connected component remains off, indicating the fuse was the fault. If the component still malfunctions, check for relay issues or wiring faults rather than assuming a fuse problem.
Tip: If you’re unsure, test the power lead with a multimeter to verify voltage presence. - 6
Install a replacement fuse of the same rating
Insert a new fuse with the same amperage rating into the correct slot. Ensure it sits firmly and flush with the contact points. An improper seating can cause intermittent failures.
Tip: Never replace with a higher rating to compensate for a faulty circuit. - 7
Reassemble, reconnect, and test the system
Reconnect the battery if you disconnected it, reinstall the fuse box cover, and restore power. Turn on the vehicle and test the affected system to confirm the fix.
Tip: Do a full-system test rather than only checking the single symptom to catch related faults. - 8
Document results and monitor over time
Record the replacement, fuse rating, and performance in your maintenance log. Monitor the system for a few driving cycles to ensure the issue doesn’t recur.
Tip: Keep a small spare set of essential fuses in your glovebox.
Your Questions Answered
Where is the fuse box located on the 2013 Toyota Corolla?
Most 2013 Toyota Corolla fuse boxes are under the dashboard and in the engine bay. The exact position is shown on the owner28099s manual diagram. If you cannot locate it, consult the diagram on the fuse box cover and the vehicle manual.
The fuse box is usually under the dashboard or in the engine bay; check the cover diagram and the manual for exact location.
How can I tell if a fuse is blown?
A blown fuse typically shows a broken internal metal strip or a gap when you visually inspect it. For accuracy, use a multimeter to test continuity across the fuse before replacing it.
Check the fuse visually for a break or test with a multimeter to confirm continuity.
Is it safe to replace a fuse with a higher amperage?
No. Replacing with a higher amperage can cause wiring damage or fire. Always match the original rating printed on the fuse and diagram.
Never up-rate the fuse; use the same amperage the diagram calls for.
Do I need to replace the entire fuse box if a fuse blows?
Usually not. A blown fuse is a simple fuse-level fault. If a fuse repeatedly fails, there may be a broader wiring issue or a faulty relay requiring professional evaluation.
Usually not—fuses are replaceable, but persistent issues may require a pro.
Is there a fuse diagram in the owner28099s manual?
Yes, most Corolla manuals include a fuse diagram and a legend. If you don’t have the manual, the fuse cover typically includes a map.
Yes, check the manual or the fuse box cover for a diagram.
What safety precautions should I take before working on the fuse box?
Turn off the ignition, remove the key, and disconnect the battery if you’re near the engine bay. Wear eye protection and insulated tools to avoid shocks or burns.
Turn off power, protect your eyes, and use insulated tools.
Watch Video
Highlights
- Know the fuse map to identify circuits quickly
- Use the correct amp rating for replacements
- Test circuits safely with power off, then verify with a live test
- Document replacements to track recurring issues
