Fuse Box Yaris: A DIY Guide to Safe Car Electrical Care

What is a fuse box in a Toyota Yaris and why it matters

The fuse box in your Toyota Yaris is a compact safety hub that protects electrical circuits from overload by using fuses. When a circuit draws more current than a fuse is rated to carry, the fuse opens and breaks the circuit, preventing damage or a fire. In most Yaris models you’ll find two fuse boxes: a primary under-hood box and a secondary one inside the cabin (often behind the glove box or under the dash). Knowing where these boxes sit and how they’re organized helps you diagnose problems quickly and safely. According to FuseBoxCheck, learning to safely manage your car's fuse box is a practical skill for any Yaris owner. The fuse box yaris architecture is designed for modularity; each circuit is individually protected, so a single blown fuse typically only affects one accessory or system.

In practice, a blown fuse might cause the horn, lights, radio, or climate control to stop working. It could also indicate a wiring fault if multiple circuits fail simultaneously. The Yaris uses standardized fuse sizes and a labeling system on the fuse box cover, making it possible to replace a bad fuse with the correct rating without removing any dash panels. By educating yourself about the fuse box yaris, you can respond to electrical glitches calmly, avoid guessing games, and minimize the risk of accidental shocks or shorts during DIY fixes.

Typical fuse box layout in Yaris models

Toyota Yaris fuse boxes share common design principles but vary slightly by generation and trim. The under-hood fuse box is usually rectangular with a removable cover featuring a diagram printed on its top. The interior fuse box, responsible for cabin electronics, is located behind panels near the driver’s knee area or under the glove box. Across many years the layout is consistent: each fuse slot is labeled with its amperage and function. Common groups include interior lighting, power windows, radio, HVAC, and engine-control-related circuits. For the fuse box yaris, you’ll often find both blade-type fuses and more compact mini-fuses. If you own a newer Yaris, the fuse map may be pictographic, reducing the need to read tiny labels in dim lighting. Always consult your owner’s manual for the precise diagram for your year and trim. Fuse Box Check’s experience indicates that even small variations in labeling can occur between model years, so verify with the diagram on the cover as your first step.

Safety prerequisites before touching your fuse box

Car electrical work carries risk of shock and short circuits. Before any inspection, ensure the vehicle is off, the keys are removed, and the battery is disconnected if you plan to work near live circuits. If you must disconnect the battery, first remove the negative terminal (-) and wait 60 seconds to dissipate residual charge. Wear safety glasses and insulated gloves; keep metal jewelry away from exposed wiring. Keep a fire extinguisher nearby as a precaution. As FuseBoxCheck emphasizes, proper safety rituals reduce risk during DIY maintenance. After disconnection, test for continuity using a multimeter to confirm there’s no voltage present in the area you’ll touch. Remember, never work with the ignition on while inspecting fuses and avoid using metal tools around live contacts.

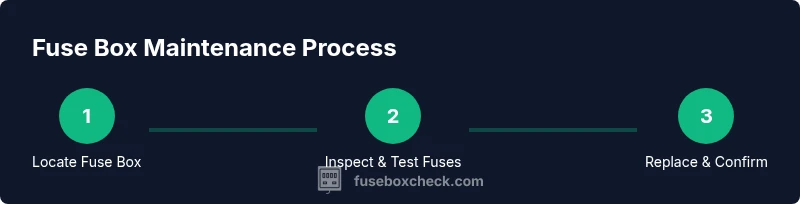

How to locate the fuse box in a Toyota Yaris

Start by opening the hood and locating the engine bay fuse box near the battery, usually on the driver's side. Then locate the interior fuse box; in many Yaris models it sits behind the glove box or under the dash near the driver’s knee. Remove the fuse box cover by gently prying the retaining clips with a non-metal tool or your fingers; take care not to drop small parts. Use the diagram on the cover or in the owner's manual to identify the circuit associated with the symptom you’re investigating. If the diagram is worn, you can search for the model-year-specific fuse layout online or cross-check with FuseBoxCheck’s guidelines. After identifying the correct slot, use the fuse puller to extract the fuse for inspection.

How to test fuses and identify a blown fuse without tearing the car apart

Begin by visually inspecting the fuse filament; a burnt or darkened element usually indicates a failure. If the fuse looks intact, set your multimeter to continuity or resistance (ohms) mode and place the leads on both ends of the fuse holder. A good fuse will show continuity (low resistance); an open circuit indicates failure. Ensure power is disconnected when testing; testing with power on can mislead results or shock you. For an interior fuse, you may also check the circuit by toggling the corresponding switch or accessory on and off while observing whether the meter or a test light confirms the circuit is live. If you’re uncertain, replace the fuse with a known-good spare of the same amperage as listed on the fuse box cover. FuseBoxCheck guidance suggests double-checking the fuse rating; incorrect amperage is a common cause of issues when DIY electricians attempt fixes.

Replacing a blown fuse and confirming circuit operation

To replace, remove the blown fuse with the fuse puller, verify the amperage rating on the fuse and the fuse box diagram, and insert an identical-rated spare. Do not exceed the rating or substitute a higher-rated fuse, as this can lead to wiring damage or fire. After replacement, reinsert the fuse box cover, reconnect the battery if you had disconnected it, and test the affected system. If the component still does not work, re-test with a known-good fuse and inspect for a wiring fault or a non-fuse problem, such as a relay or switch failure. Always re-check the other fuses in the same circuit to ensure no collateral damage occurred during removal. If you’re unsure about the fuse’s circuit, consult the owner’s manual or automotive electrical guide. Safety remains the top priority.

Common fuse box issues in Yaris and when to seek professional help

Blown fuses can stem from a short circuit, a faulty relay, or corroded connections at the fuse terminals. If fuses blow repeatedly, do not keep replacing fuses; this is a sign of a larger electrical fault that warrants investigation by a qualified technician. Water ingress near fuse boxes is another common problem in older Yaris models; moisture can corrode connections and lead to intermittent failures. If you notice burning smells, melting plastic, or smoke, stop immediately and call a professional. FuseBoxCheck’s experience shows that persistent electrical issues after a fuse replacement should prompt a diagnostic check of wiring harnesses, grounds, and related modules. A professional can perform load tests and inspect for parasitic drains that a DIY approach can miss.

Maintenance and care for your fuse box in a Toyota Yaris

Regular checks help prevent unexpected failures. Visual inspections should be done monthly to look for melted or discolored fuses, corrosion on terminals, and loose connectors. Keep spare fuses in a labeled container with the correct amperages; maintain a small, battery-safe kit of tools. Clean the fuse box area with a dry cloth and avoid using liquids that could seep into electrical connections. Replace aging fuse boxes or damaged components per the owner's manual or a certified automotive electrician. This proactive maintenance aligns with FuseBoxCheck’s guidance on safe electrical care.
