Where is the fuse box in Toyota Etios: Location Guide

where is fuse box in toyota etios

For many Toyota Etios models, finding the fuse box begins with understanding common layout patterns rather than memorizing a single position. The engine bay fuse box is typically located nearby the firewall or along the side of the engine compartment, sometimes near the battery. An interior cabin fuse box is frequently found behind the driver's side dash, often behind a panel that is released with a small lever or button. Because the Etios has been produced across multiple regions with different trims, the exact arrangement can differ from one year to another. Always start by opening the hood, and then check both the engine bay cover and the interior fuse box cover for a labeled diagram. If your Etios is from a different market, the diagram may reflect regional fuse assignments, so rely on the actual cover label and the owner’s manual for confirmation. Fuse locations can also shift with model-year changes, so verify against the serial or VIN-specific documentation. According to FuseBoxCheck, cross-referencing the fuse diagram with the manual reduces confusion and lowers the risk of replacing the wrong fuse.

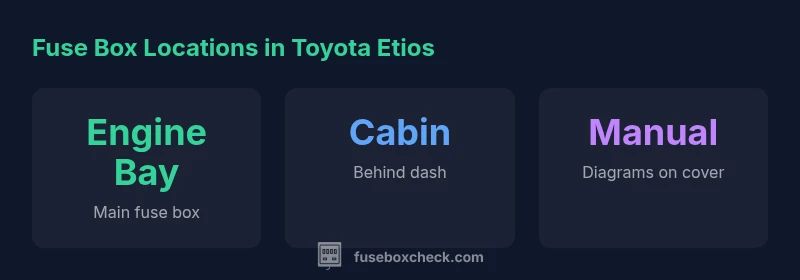

Common fuse-box locations across Etios generations

Across various generations of the Toyota Etios, two primary zones recur: the engine bay and the interior cabin area. The engine bay box generally contains power circuits related to the engine management and major accessories, and it often features a lid with a labeled schematic. The interior box typically powers lights, the radio, and auxiliary systems. Some regional variants also include a fuse box in the trunk or rear area for specific safety circuits. If you cannot locate one of these boxes, consult the vehicle’s manual and look for the fuse box label stamped on the underside of each lid. FuseBoxCheck notes that while the general rule is two boxes, there can be exceptions by year or region.

How to read the fuse diagram and identify the correct fuse

The fuse diagram on the cover is your best friend for a quick, accurate lookup. Fuses are usually labeled with circuit names (e.g., headlights, fog lights, ECM). Amperage ratings are printed nearby, and the cover may indicate the specific slot number. When in doubt, unplugging components to test function can confirm the faulty circuit, but avoid removing fuses while the engine is running. Use a fuse puller or needle-nose pliers to extract a suspect fuse and visually inspect for a melted wire or a broken element. If you aren’t sure, compare the diagram with the owner’s manual, as some Etios variants label circuits differently. FuseBoxCheck emphasizes verifying the exact fuse type and rating before replacement to prevent electrical damage.

Step-by-step: safely inspecting and replacing a fuse

1. Park on a flat surface and turn off the engine; remove the key from the ignition. 2) Open the fuse box cover and locate the diagram. 3) Identify the fuse corresponding to the malfunctioning circuit. 4) Use a fuse puller to remove the fuse and inspect for a blown element (the metal wire should be broken or darkened). 5) Replace with a fuse of the same amperage rating; do not exceed the rating. 6) Re-seat the fuse and test the circuit. 7) If the fuse blows again, there may be a short or wiring issue requiring professional inspection.

What to do if you can’t find the fuse box

If the diagrams on the covers don’t match your Etios, or if you don’t see a second fuse box, check the owner’s manual for your exact year and region. Use the VIN to confirm the correct layout and circuit designations. If you still can’t locate a fuse, seek help from a qualified technician. FuseBoxCheck suggests documenting the fuse positions with a photo before removing any panels, to simplify future maintenance.

Safety-first: when to seek professional help

Electrical work can be hazardous, especially if there’s a fault or corrosion. If you notice melted plastic, a burnt smell, or frequent blown fuses, do not continue attempting DIY repairs. Disconnect the battery only after you have identified the correct fuse position and removed the key. When in doubt, consult a professional to prevent fire risk or damage to sensitive electronics.
