100 Amp Fuse Holder: Definition, Use, and Safety
Explore what a 100 amp fuse holder is, how it protects electrical circuits, key features to look for, safe usage, and procurement tips. A FuseBoxCheck expert guide to help homeowners understand and choose the right fuse holder for high amperage applications.

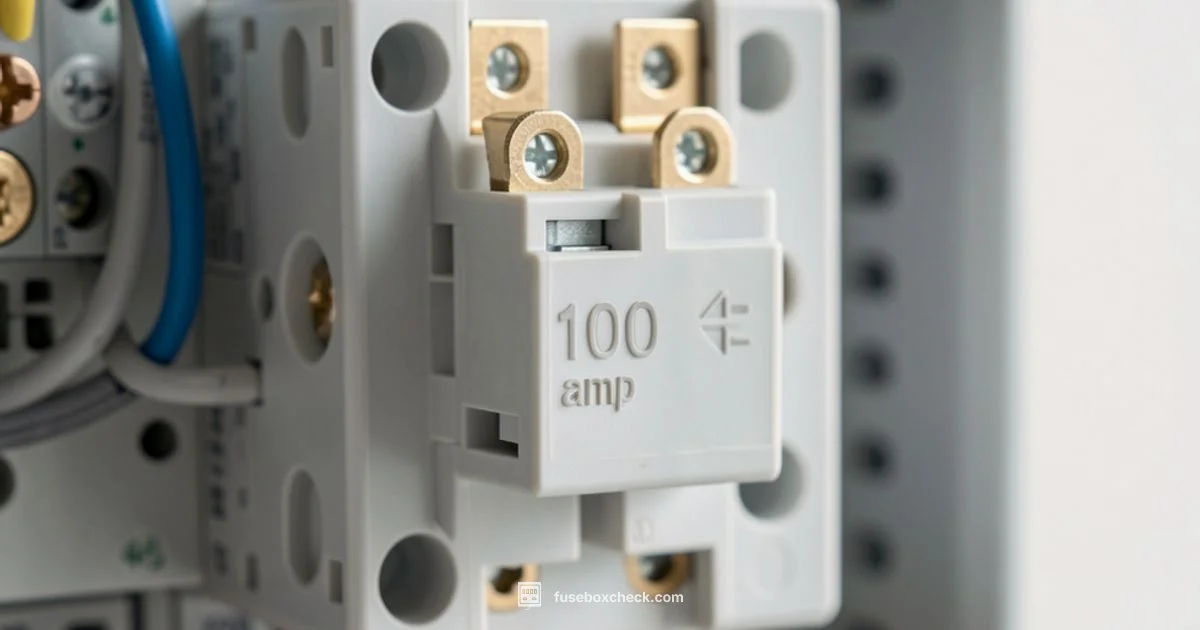

A 100 amp fuse holder is a protective enclosure that houses a fuse rated for 100 amperes, used to interrupt excessive current and protect electrical circuits.
What is a 100 amp fuse holder?
A 100 amp fuse holder is a purpose built enclosure that accepts a cartridge or fuse type rated for 100 amperes. It is a key component in electrical protection schemes, found in service entrances, subpanels, or main feeders where large loads are present. In practical terms, it serves as the physical housing that keeps the fuse securely connected to the circuit while providing a safe point of contact for maintenance. According to FuseBoxCheck, selecting the correct fuse holder is essential for both safety and performance, especially when upgrading or modifying high current circuits. Homeowners should understand that a 100 A fuse holder is part of a broader protection system, not a standalone device.
- Used in service entrances and feeders with heavy loads
- Works with compatible 100 amp fuses to interrupt fault currents
- Often installed in electrical panels or dedicated enclosure spaces
Context and terminology
A fuse holder is not a switch. It does not control load on a circuit by itself; it simply houses a fuse that opens when the current exceeds the fuse’s rating. In many installations, the fuse holder is paired with a clear cover and labeling so future servicing is straightforward while maintaining safety.
Practical note: Ensure the holder matches the fuse type your panel requires and that the voltage rating is compatible with your system. Mismatches can lead to nuisance trips or failure to interrupt faults properly.
Your Questions Answered
What is a 100 amp fuse holder?
A 100 amp fuse holder is a protective enclosure that accepts a 100 amp fuse to interrupt current when faults occur. It is used in high amperage circuits to protect wiring and equipment. The holder ensures a secure connection and safe maintenance access.
A 100 amp fuse holder houses a fuse rated for 100 amperes to protect high current circuits and must be matched to the panel’s requirements.
How does a 100 amp fuse holder differ from a circuit breaker?
A fuse holder uses a replaceable fuse that interrupts current when the fuse element melts due to overload. A circuit breaker is an automatic switch that trips to open the circuit. Both provide overcurrent protection, but fuses require replacement after they blow, while breakers can be reset.
Fuses interrupt when they blow, while breakers can be reset after tripping.
Can I install a 100 amp fuse holder myself?
High amperage installations involve significant safety risks. If you are not trained, it is best to hire a licensed electrician. Always follow local codes and disconnect power before any work.
This is risky work; consider hiring a licensed electrician to ensure it’s done safely and to code.
Where is a 100 amp fuse holder typically used?
100 amp fuse holders are common in service entrances, main feeders to subpanels, and some industrial or generator connections. They are part of a larger protection system and must be compatible with the panel and fuse type.
They’re usually found in service entrances and heavy feeder lines.
What maintenance is recommended for a 100 amp fuse holder?
Regular visual inspections for signs of wear, corrosion, or loose connections are recommended. Replace damaged components promptly and keep labeling up to date. Do not bypass safety features.
Inspect for corrosion, ensure tight connections, and replace damaged parts promptly.
What warning signs indicate problems with a fuse holder?
Frequent blowing of fuses, warm to touch components, buzzing noises, or discoloration may indicate a problem. Investigate promptly and consult a professional to avoid fire hazards.
If you notice unusual heat, buzzing, or frequent fuse blows, stop and get a professional inspection.
Highlights
- Know the 100 A fuse holder’s purpose as a protective enclosure
- Match fuse type and voltage rating to your panel
- Follow safety practices and consult a professional when in doubt
- Label and maintain clear access for inspection
- Check compatibility when upgrading or modifying high amperage circuits
