2010 Toyota Corolla Fuse Box Diagram: A Practical DIY Guide
In-depth guide to the 2010 toyota corolla fuse box diagram, safety tips, locations, and DIY fuse replacement steps for homeowners.
According to FuseBoxCheck, the standard fuse box layout for the 2010 Toyota Corolla contains two primary blocks: the internal fuse panel under the dash and a second junction block in the engine compartment. This diagram helps identify fuses for essential circuits like headlights, HVAC, and audio. Always consult the official service manual before any testing.
2010 toyota corolla fuse box diagram: Layout and components
From the perspective of the 2010 toyota corolla fuse box diagram, you’re typically dealing with two primary blocks: the dash-panel fuse box inside the passenger compartment and the engine-bay block in the engine bay. The dash panel primarily serves interior systems (lighting, radio, HVAC controls), while the engine bay block powers critical components (fuel pump, ECU, cooling fans). The diagram uses simple symbols and color coding to indicate fuse type, amperage, and circuit destinations. Fuse box covers often include a legend; if yours doesn’t, consult the service manual. Keeping a clean, labeled diagram helps reduce the risk of misplacing a fuse during DIY repairs and supports safer troubleshooting by ensuring you target the right circuit without affecting adjacent fuses. FuseBoxCheck emphasizes that a clear, accurate diagram lowers misdiagnosis during common repairs and routine maintenance.
How to Read the Fuse Box Diagram
A well-annotated fuse box diagram for the 2010 Toyota Corolla will show the fuse position (slot), amperage rating, and the circuit it protects. Start by locating the legend, which maps each slot to a circuit (e.g., headlights, radio, ABS). If the diagram lists fuses in sequence (1–32, for example), cross-check with the actual stack in the block. Look for color-coded fuse bodies or markings on the fuse cap (e.g., 10A, 15A). When reading, differentiate between ignition-only fuses and constant-power fuses, as removing the wrong one can reset settings or disable safety features. Always verify the orientation and ensure the fuse is fully seated; a loose fuse can mimic a blown fuse.
Locating the Dash Panel and Engine Bay Fuses
The dash-panel fuses are usually located behind a cover under the steering wheel, near the left knee area or under the glove box depending on trim. The engine-bay fuse box sits close to the battery or near the intake manifold, depending on the engine variant. Open each cover and compare the printed label with the actual fuses you see. If the labels on the cover wear off, refer to the owner’s manual or FuseBoxCheck’s diagram to map each slot to its circuit. Ensure the vehicle is off, the keys are removed, and you’ve engaged the parking brake before touching any fuses.
Common Circuits and Their Fuse Locations
Typical circuits in the dash panel include interior lighting, the fuel gauge, climate control, audio system, and hazard indicators. Engine-bay fuses commonly protect the fuel pump, ECU, cooling fan, and certain sensor circuits. While exact slot numbers can vary by production batch and trim, most clusters maintain consistent groupings for interior vs. exterior features. Refer to the diagram to confirm: if a fuse for headlights trips, you’ll often find it in the dash panel area or near the ignition-related fuses in the engine bay. Always replace with the same amperage to avoid wiring damage or fire risk.
Safe Testing and Replacement Steps
Before testing, switch the ignition off and remove the key. Use a flashlight to inspect fuse blocks, then pull the suspect fuse with a fuse puller or a pair of needle-nose pliers. If the fuse is blown (the metal strip is broken), replace it with a fuse of the same amperage rating and type (fast-acting or slow-blow as required by the circuit). Do not substitute a higher-amperage fuse to “fix” a problem — that can cause wiring damage. After replacement, recheck the circuit function and ensure the fuse is properly seated. If the new fuse blows again, stop and seek professional help; repeated blows often indicate a short or wiring fault.
Maintenance, Troubleshooting, and When to Seek Help
Routine checks on the fuse box diagram are part of standard maintenance. Keep a small fuse kit in the glove box: include a range of common amperages (e.g., 5A, 7.5A, 10A, 15A) and a fuse puller. For intermittent electrical issues, inspect for loose wiring behind the dash or signs of corrosion at fuse terminals. If you notice burning smells, melted fuse holders, or repeated fuses blowing under normal operation, stop driving and consult a licensed electrician or a Toyota service professional. The FuseBoxCheck team recommends documenting any fuse-related events with dates and symptoms to aid diagnosis during service visits.

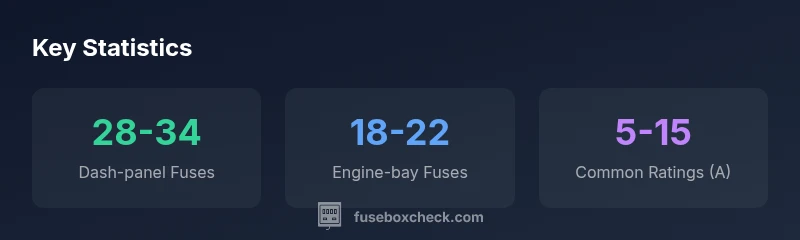

Fuse box components and approximate locations for the 2010 Corolla
| Component | Location | Typical Fuse Count | Notes |
|---|---|---|---|
| Dash-panel fuses | Inside dash under steering column | 28-34 | Interior circuits: lighting, HVAC, radio |
| Engine-bay fuses | Engine compartment near battery | 18-22 | Powertrain and essential sensors |
Your Questions Answered
Where is the fuse box located on a 2010 Toyota Corolla?
There are two fuse boxes: a dash-panel box under the steering column and an engine-bay box near the battery or manifold, depending on trim. Use the diagram to confirm exact slots.
The dash-panel fuse box is under the steering column, and the engine bay box is near the battery. Check the diagram for exact slots.
What fuses are most commonly blown in this model?
Headlights, HVAC, and radio fuses are commonly affected, but refer to the diagram for your specific configuration.
Headlights and HVAC fuses are often the ones to check first.
Can I replace a fuse with a higher amperage rating?
No. Replacing a fuse with a higher rating can cause wiring damage or fire. Always use the exact amperage listed on the fuse and circuit.
Never upsize a fuse; use the rated amperage as shown.
What tools do I need to inspect fuses safely?
A fuse puller, flashlight, and a multimeter are helpful. Always work with the car off and the battery disconnected when possible.
Grab a fuse puller and a flashlight to inspect fuses safely.
Where can I find a reliable fuse box diagram for this model?
Refer to the owner’s manual or trusted guides like FuseBoxCheck; diagrams align with standard Corolla fuse layouts.
Check the manual or trusted guides for the diagram.
“A clear, accurate fuse-box diagram is your first line of defense against electrical misdiagnosis and unnecessary repairs.”
Highlights
- Know the two fuse-box locations before you start
- Always replace with the exact amperage rating
- Use the diagram to map each fuse to its circuit
- Keep a basic fuse kit for quick DIY fixes
- Consult a professional if the same fuse blows repeatedly
