You can safely locate, inspect, and replace an ATC fuse block using simple safety steps and the right gear. This guide covers identification, testing, and replacement, plus essential precautions to avoid shock or fire. Follow the sequence exactly, avoid power on tasks, and use a multimeter to verify circuits before re-energizing.
What is an ATC fuse block?
In many vehicles and some off-grid electrical setups, an ATC fuse block is a housing that accepts automotive-type cartridge fuses (ATC). It acts as the protective point for a circuit, so when a fuse blows, power to that branch is cut to prevent damage. According to FuseBoxCheck, understanding the layout—where power enters, where the block feeds, and how fuses are labeled—helps DIY troubleshooters locate failures quickly. These blocks are designed for reliable contacts and quick fuse replacement, but they can degrade from corrosion or exposure to moisture. Recognize the common layouts, labeling conventions, and where the block sits in your system to minimize guesswork during maintenance. A thorough understanding reduces risk and speeds up repairs, especially when you’re dealing with multiple circuits or vintage components.
Safety-first: essential precautions
Working with fuse blocks—whether automotive or home-adapted—requires strict adherence to safety. Always disconnect the power source before any inspection, and use insulated tools to prevent accidental contact with live terminals. Wear protective eyewear and gloves, and keep your workspace dry. If you’re unsure about any step, pause and consult a professional. FuseBoxCheck emphasizes that the key to a safe DIY approach is a deliberate, methodical routine rather than hurried trial and error. If you notice melted plastics, corrosion, or a smell of burnt material, stop immediately and replace the affected parts.
Signs your ATC fuse block needs attention
Common indicators include frequent fuse blows on a single circuit, visible corrosion at terminals, discoloration or melting of fuse housings, or a burning odor near the block. A loose connection can also cause intermittent fuse failures. Regular inspection helps catch wear before it causes an outage. For DIYers, documenting fuse ratings and circuit loads helps you identify unusual patterns that suggest a short, overload, or wiring fault. FuseBoxCheck notes that proactive checks—especially on older setups—prevent surprise outages and potential safety hazards.
Tools, tests, and planning (overview)
Before you begin, map out the circuits connected to the ATC fuse block. A multimeter is essential for continuity and voltage checks, and insulated screwdrivers reduce the risk of short circuits. It’s smart to have replacement fuses of the same amperage rating and a spare ATC fuse block if corrosion or damage is suspected. Prepare a clean, dry workspace with ample lighting. Keep a digital record of fuse ratings and locations for future maintenance. This planning stage helps you work efficiently and safely when you move to testing and replacement.
Step-by-step inspection and testing (high-level)
This section outlines the practical workflow you’ll follow in the detailed STEP-BY-STEP block. Start by powering down and isolating the system, then locate the ATC fuse block and inspect each fuse for signs of damage. Use a multimeter to test fuse continuity and circuit voltage, noting any anomalies. When a blown fuse is confirmed, replace with the correct amperage rating and reseat the fuse block to ensure a solid connection. If corrosion or heat damage is found, consider replacing the entire block. Finally, re-energize the system and perform targeted circuit tests to confirm everything operates normally.
Replacing the ATC fuse block or fuses safely
If a fuse repeatedly blows or the block shows signs of damage, replacement is often the safest option. Disconnect power, remove the old block, and fit a new ATC fuse block in the same location. Reinstall all fuses in their corresponding positions and verify each connection is secure. After replacement, recheck all circuits with a multimeter and test run the connected devices to ensure proper operation. Remember to update any labeling to reflect the new block and fuse arrangement.
Maintenance, durability, and common mistakes
Regular inspections reduce surprises. Check for corrosion, loosened terminals, moisture ingress, and brittle wiring insulation. Avoid forcing connectors or over-tightening screws, which can damage terminals. A common mistake is mixing fuse types or using a higher amperage rating than specified; this defeats the protective purpose of the fuse block. Keep a maintenance log and replace any degraded components promptly to maintain system integrity.
Authority sources
For safety standards and best practices, consult the following references:
- OSHA: https://www.osha.gov
- NFPA: https://www.nfpa.org
- Energy.gov: https://www.energy.gov
Tools & Materials
- Insulated gloves (Class 0 or better)(Keep dry; use when working near live circuits.)
- Multimeter (DC voltage and continuity)(Set to appropriate range; verify fuse resistance.)
- ATC fuses of correct amperage(Use manufacturer-approved ratings.)
- Replacement ATC fuse block (optional but recommended)(Have a spare if corrosion or damage is suspected.)
- Screwdrivers with insulated handles(Phillips #2 and flathead as needed.)
- Safety glasses(Eye protection at all times.)

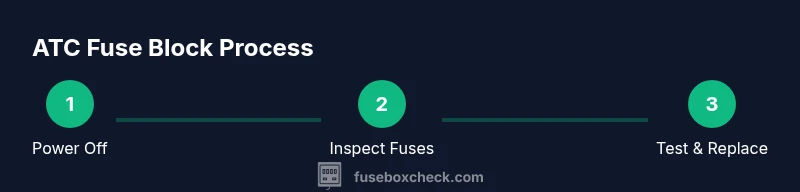

Steps
Estimated time: 60-90 minutes
- 1
Power down and isolate
Turn off the power to the circuit or vehicle. Disconnect the negative battery cable if working on a vehicle, and wait a few minutes to let any stored energy dissipate. Verify isolation with a non-contact tester or multimeter on a known neutral point.
Tip: Always verify there is no voltage present before touching any terminals. - 2
Locate the ATC fuse block
Find the fuse block housing and note its labeling. If working in a vehicle, consult the owner’s manual or the fuse diagram on the block itself. Take a photo for reference before removing any fuses.
Tip: Label connectors and fuses as you go to avoid mix-ups. - 3
Inspect fuses for damage
Look for a broken filament, blackening, or melted plastic around the fuse. A fuse with any of these signs should be replaced. Do not reuse damaged fuses, even if they look intact.
Tip: Handle fuses with insulated tools and avoid touching conductive parts with bare hands. - 4
Test fuse continuity and voltage
With the system isolated, use the multimeter to test each fuse for continuity. For active circuits, check subsequent voltage at the output side to confirm delivery to the load. Document any fuses that fail the test.
Tip: If a fuse tests open, verify that the fault is not in the wiring before replacement. - 5
Replace with correct amperage and reseat
Install a new fuse of the same amperage rating and reseat into its holder firmly. If the fuse block shows corrosion or loose contacts, consider replacing the block.
Tip: Do not oversize a fuse to hide a wiring issue. - 6
Re-energize and test the circuit
Reconnect power and test the circuits individually. Turn devices on and confirm expected operation without unusual warmth or smells. If a fuse blows again, re-evaluate for a short or overload in the wiring.
Tip: Test one circuit at a time to isolate issues quickly.
Your Questions Answered
What is an ATC fuse block and where is it used?
An ATC fuse block holds automotive-type cartridge fuses and provides protection for circuits in vehicles and some off-grid setups. It’s common in legacy electrical configurations and can be adapted for certain home or RV applications. Always follow the manufacturer’s guidance when integrating ATC blocks.
An ATC fuse block holds automotive fuses and protects circuits in vehicles and some off-grid setups. Follow the manufacturer’s guidance for any integration.
Can I replace ATC fuses myself?
Yes, you can replace ATC fuses yourself provided the power is fully off and you use the correct amperage rating. If you see corrosion or damage to the block, replacing the entire unit is safer than a partial repair.
Yes, with power off and correct fuse rating. If the block is corroded, replace it entirely.
What tools do I need to work on ATC fuse blocks?
You’ll need insulated gloves, a multi-meter with continuity and voltage testing, insulated screwdrivers, replacement ATC fuses, and a spare fuse block if damage is suspected.
Insulated gloves, a multimeter, insulated screwdrivers, and replacement fuses are essential.
Is it safe to test fuses with a multimeter?
Yes, but only with the power off. A multimeter should show continuity for good fuses and no continuity for blown ones. Never test a live circuit when you’re handling fuses.
Only test fuses with the power off; check for continuity when safe.
What should I do if a fuse keeps blowing?
A repeatedly blowing fuse indicates an overload, short, or wiring issue. Diagnose the circuit load and inspect wiring for damage before replacing any fuses.
If a fuse keeps blowing, check for overloads or wiring faults and inspect the circuit before replacing.
How do I know when to replace the entire fuse block?
Replace the entire fuse block if there’s visible corrosion, melting, or repeated issues across multiple circuits. A damaged block can be unsafe and less reliable than a full replacement.
Replace the whole block if there’s corrosion or melting, not just individual fuses.
Watch Video
Highlights
- Power down before inspection and testing.
- Use a multimeter to confirm fuse continuity.
- Replace only with correct amperage ratings.
- Replace the block if damage is evident.
