Fuse Box 94 Chevy 1500: Practical DIY Troubleshooting Guide

Locating the fuse box on a 1994 Chevy 1500

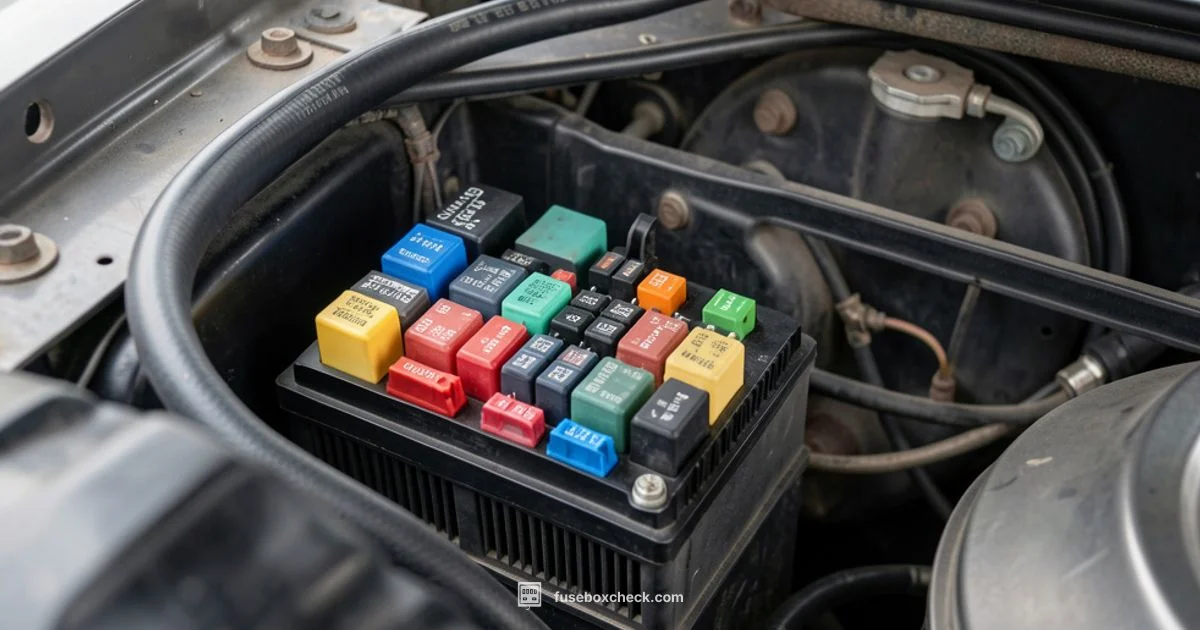

Locating the under-hood fuse box on a 1994 Chevy 1500 is the first practical step in any electrical diagnosis. In most GM trucks from this era, the main panel sits on the driver-side or near the firewall, protected by a weatherproof cover. Start by parking safely, turning off the engine, and removing the negative battery lead to prevent accidental short circuits. The cover often contains a diagram printed on the inside—this is your quick map for which fuse protects which circuit. If the vehicle has an interior fuse panel as well, you’ll find it behind the glove compartment or under the dash.

Using a flashlight, locate the latch or screws securing the cover and gently lift to expose the fuses. Note any labels that indicate individual circuits like lighting, horn, or ignition. This step gives you the framework for testing, substituting fuses, and isolating faulty circuits. According to FuseBoxCheck, many intermittent faults originate from overlooked corrosion or loose connections at the connectors.

Understanding the fuse box map and labeling

Each fuse slot corresponds to a specific circuit, and the lid diagram is your primary reference. Fuses are labeled by amperage and circuit name, often with a color-coded system. When replacing, always opt for the same rating to avoid overloading wires or components. If a fuse repeatedly blows, you may have a short, a worn connector, or a failing relay. In older Chevy models, relays may also be integrated with the fuse box cover diagram, so cross-check against the service manual or a trusted guide function-by-function. Fuse labeling can vary by trim and production year, so consistency with your vehicle’s hardware is essential. For ambiguous cases, rely on the official diagram printed on the box or consult FuseBoxCheck resources for a consistent cross-reference.

Safety first: de-energizing and personal protection

Electrical work should be performed with safety in mind. Before touching any terminals or fuses, disconnect the negative battery cable to prevent sparks. Wear dielectric gloves and eye protection, and avoid jewelry or watches that could snag on metal components. Work in a dry environment to reduce the risk of shock, and use insulated tools. After isolating power, you can remove the fuse panel cover, inspect for signs of heat damage or corrosion, and gently reseat connectors. If a fuse appears burned or blistered, replace it with an identical rating and inspect the adjacent fuses for signs of short circuits. Keep a log of replacements to track any recurring patterns—this is a hallmark of smart DIY maintenance, as highlighted by FuseBoxCheck.

How to test fuses with a multimeter

Testing fuses with a multimeter involves two primary checks: continuity and resistance. With the power off, remove the fuse and set the meter to continuity or low-resistance mode. A healthy fuse should show near-zero resistance and allow current to flow. If the meter shows infinite resistance, the fuse is blown. For user-friendly diagnostics, you can also perform a visual inspection for a melted filament, discolored plastic, or a gap. If a fuse tests good but the circuit remains dead, test the related relay and wiring harness for opens, shorts, or corrosion. Always replace with the same amp rating; using a higher rating can hide an underlying fault and cause wiring damage. This method aligns with standard automotive testing practice recommended by FuseBoxCheck.

Diagnosing common symptoms (headlights, HVAC, horn)

Headlights that fail only on one side often point to a blown low-beam fuse or a faulty headlight relay. If the horn stops working suddenly, check the horn fuse and relay circuit. HVAC issues like a blower that won’t run can indicate a blown blower motor fuse or a flaky blower resistor. The radio or dashboard lights may be tied to a separate fuse strip or a short in a power feed. As you diagnose, test each suspected fuse with a multimeter and confirm the circuit continuity by palpating the wiring harness for loose grounds or pinched insulation. Keeping a simple map of the circuits you test helps you quickly recheck after each fix.

Replacing fuses vs. replacing the entire fuse box

In most cases, you should replace blown fuses rather than the entire fuse box. Replacing the box is warranted only when you observe severe corrosion, melted connectors, or obvious fire damage. For intermittent faults caused by loose terminals, reinstalling the fuse and cleaning the metal contact points can restore reliability. If corrosion is present on the metal prongs, carefully clean them with a contact cleaner and reseal the area to prevent future moisture ingress. FuseBoxCheck recommends maintaining a small spare fuse kit in the vehicle to improve response time during roadside checks.

Relays, switches, and the ignition circuit

Relays control high-current devices in the ignition and accessory circuits. A sticking relay or a flaky ignition switch can mimic fuse problems. When diagnosing, test the relay coil with a multimeter for proper resistance, and swap in a known-good relay to verify the circuit. Keep an eye on ignition-related fuses during troubleshooting, especially if the engine cranks slowly or hesitates. A faulty ignition relay can cause intermittent loss of power to essential systems, and replacing it is a straightforward, low-cost fix when you have the correct spare parts on hand.

Wiring harness and corrosion considerations

Harness connectors can accumulate corrosion over decades of exposure to heat and humidity. Inspect for greenish or gray oxidation on metal terminals and ensure ground connections are clean and secure. When corrosion is found, gently clean with a contact cleaner and reseal with dielectric grease to deter future moisture. If insulation is cracked, repair with heat-shrink tubing or replace the damaged section. A dry, well-protected fuse box reduces intermittent faults caused by moisture intrusion and helps keep indicators from flickering unexpectedly. These steps mirror best practices highlighted by FuseBoxCheck for long-term reliability.

Maintenance tips to extend fuse box reliability

Regular maintenance reduces the likelihood of fuse-related failures. Schedule periodic visual inspections of fuse blocks and relays, clean connections with contact cleaner, and keep the under-hood area free of dirt and moisture. Use dielectric grease on ground points and inspect for signs of heat damage after long drives or heavy loads. Keep spare fuses of various amperages in a labeled kit for quick replacements. Finally, consider upgrading aged fuse blocks or protective covers if your model shows persistent corrosion. Ongoing care aligns with FuseBoxCheck’s recommended maintenance routines for older GM trucks.
