Fuse Box Guide for Can-Am Defender: DIY Troubleshooting
Learn how to safely inspect, test, and replace fuses in the Can-Am Defender fuse box with practical steps, tools, and safety guidance for homeowners and DIY enthusiasts.
Goal: Learn to safely inspect or replace fuses in the fuse box can am defender, locate fuse blocks, and reset circuits. Gather basic tools: multimeter, replacement fuses, insulated screwdriver, and protective gloves. According to FuseBoxCheck, always disconnect the battery and wear eye protection before opening the fuse box.
What the fuse box does in your Can-Am Defender
In the Can-Am Defender, the fuse box protects electrical circuits and power-consuming components from overloads or short circuits. Understanding the fuse box can am defender arrangement helps you quickly pinpoint which circuit is affected during a fault, so you can isolate and fix issues without unnecessary disassembly. At a high level, a fuse block serves as a safety valve between the battery and accessories like lights, winches, communication gear, and power outlets. When a fuse blows, the circuit is interrupted to prevent wire damage or fire.
According to FuseBoxCheck, most Defender owners experience faults in circuits tied to lighting, accessory power, or ignition systems. Keeping a basic reference of which fuse controls which accessory can save time during a fault. Start with the owner’s manual to identify the fuse map, noting the fuse color and amperage. If you don’t have the manual handy, you can often find diagrams online for the Defender platform. Always treat the fuse box as safety protection for the electrical system and proceed with care to avoid damaging modules or wiring.
Locate and interpret the fuse box layout
To begin, locate the fuse box in the Defender by consulting the owner’s manual and any on-vehicle diagrams. In many Defender configurations, the primary fuse box is behind a side panel or under a seat, with a secondary box for accessories. The fuse map explains which blade or cartridge fuses protect each circuit. If you’re unsure, look for color-coded fuses and a legend that matches the diagram. When reading the map, note the circuit name (e.g., lights, winch, auxiliary power) and the recommended amperage. If you can’t access the manual, use trusted Defender forums or official service documents to verify the map. Treat the diagram as your navigational chart for safe troubleshooting and avoid guesswork that could damage wiring.
Safety first: PPE and electrical safety for off-road vehicles
Electrical work on a live vehicle can be risky, especially in rugged environments. Always wear eye protection and gloves with good grip. Before touching any fuse, switch the vehicle off, remove the key, and disconnect the battery to minimize the risk of sparks. Work in a dry, stable area and avoid metal jewelry that could accidentally bridge contacts. Use insulated tools to prevent shorting a circuit. If you smell burning or see melted insulation, stop immediately and seek professional help. FuseBoxCheck emphasizes structured safety steps to protect yourself and the Defender’s electrical system.
How to identify a blown fuse and choose a replacement
Visual inspection is often the first check: look for a broken metal strip inside the fuse and any discoloration. If the fuse appears intact, test continuity with a multimeter set to the continuity or resistance range. When replacing, always match the original fuse’s type and amperage rating; using a higher rating can allow dangerous current and heat to travel through the circuit. If you do not know the exact rating, consult the Defender’s fuse map or a service manual. Keep spare fuses in a labeled kit and arrange them by circuit so you can quickly locate the right size in future situations.

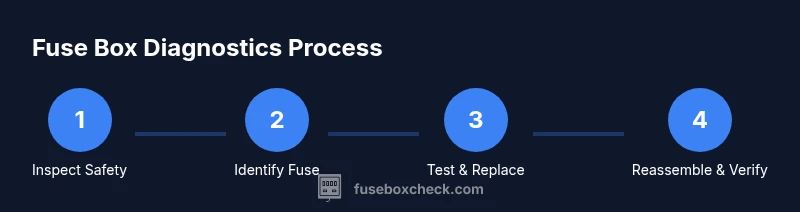

Step-by-step inspection and testing guidance
- Prepare the workspace and safety: park on level ground, turn off the vehicle, and disconnect the battery.
- Access the fuse box: remove the panel or seat cover as instructed by the manual, keeping track of fasteners.
- Identify the suspect fuse: locate the circuit related to the issue and remove the fuse using insulated tools.
- Test the fuse: use a multimeter for continuity and verify voltage on the circuit side when safe.
- Select replacement: choose a fuse with the same type and rating; never overrate a fuse to fix a problem.
- Reinstall and test: reinsert the fuse, reassemble the panel, reconnect the battery, and verify the circuit works as intended. Tip: label any replaced fuses and replace the panel securely to avoid rattles or panel gaps. Estimated time: 30-45 minutes.
Aftercare: testing, reassembly, and preventing future issues
After reinstalling fuses, re-test all affected circuits to ensure proper function. Check for any signs of heat buildup, buzzing, or abnormal smells near the fuse box. Keep the fuse map updated as components change, and consider adding a small, clearly labeled spare fuse kit in your tool bag. Regular inspection during routine maintenance can prevent surprise failures while off-road or on the trail.
Troubleshooting symptoms in the Can-Am Defender fuse box
If a fuse repeatedly blows, it may indicate an underlying issue such as a short, a worn wiring harness, or a failing accessory. Double-check the wiring harness and connectors for corrosion or frayed insulation. If multiple circuits fail at once, inspect ground connections and the battery health. Document which circuits are affected and compare with the fuse map to identify patterns that point toward a degraded component or an intermittent short. Always address recurring fuse failures promptly to avoid cascading electrical problems.
Tools & Materials
- Digital multimeter(to test fuse continuity and voltage)
- Replacement fuse (same type and rating)(carry a few spares in a labeled kit)
- Insulated screwdriver set(flat-head or Phillips as needed)
- Gloves (insulated)(hand protection and grip)
- Safety goggles(eye protection for sparks or debris)
- Fuse puller or needle-nose pliers(optional for tight fuses)
- Rag or brush for cleaning(gentle, non-conductive)
Steps
Estimated time: 30-45 minutes
- 1
Prepare workspace and safety
Park on level ground, turn off the Defender, remove the key, and disconnect the negative battery terminal to minimize shock or arcing. Put on eye protection and gloves before touching any metal or wiring.
Tip: Use insulated tools and keep metal jewelry away from the fuse area to prevent accidental contact. - 2
Access the fuse box
Remove the panel or seat cover per the owner’s manual. Keep fasteners organized and avoid forcing panels that resist; improper removal can damage clips or wiring.
Tip: Take a quick photo of the panel layout before removing to aid reassembly. - 3
Identify the suspect fuse
Refer to the fuse map or diagram for the circuit related to the symptom. Extract the fuse using an insulated tool and inspect the fused element visually.
Tip: If the fuse looks intact but symptoms persist, test continuity with a multimeter. - 4
Test the fuse
Set the multimeter to continuity or resistance. Compare across the fuse contacts; if there is no continuity, the fuse is blown. Check circuit voltage on the supply side after ensuring safety.
Tip: Perform tests with the battery disconnected to avoid live-circuit shocks. - 5
Replace fuse and reinstall
Insert a fuse of the same type and rating into the correct slot. Reassemble the panel and reconnect the battery safely.
Tip: Label fuses or create a quick-reference note for future maintenance. - 6
Verify operation
Power on the Defender and test the affected system to confirm proper function. If the fuse blows again, stop and diagnose for a short or wiring fault.
Tip: If repeated failures occur, consult a professional for wiring diagnosis.
Your Questions Answered
Where is the fuse box on Can-Am Defender?
The Defender’s fuse box is typically located behind a side panel or under a seat, with a map showing circuits. If unsure, check the owner’s manual or Defender service resources.
The fuse box is usually behind a panel or under the seat; check the manual for the exact location and circuit map.
Can I bypass a fuse to test a circuit?
No. Bypassing a fuse defeats protection and can cause wiring damage or fire. Use the fuse map and a meter to test instead.
Don’t bypass fuses. Use a meter and the circuit map to diagnose the issue safely.
What type of fuse does the Defender use?
Most Defender configurations use blade-type automotive fuses. Always match the original type and rating when replacing.
It generally uses standard blade automotive fuses; replace with the same type and rating.
How do I know a fuse is blown?
Visual signs include a broken metal strip or melted plastic. You can also test with a multimeter for continuity.
Look for a broken fuse or melted plastic, and verify with a multimeter.
Should I inspect the fuse box regularly?
Yes. Regular checks during maintenance help catch issues early and prevent in-field failures.
Regular checks during maintenance help prevent unexpected failures.
Watch Video
Highlights
- Identify fuse map for Defender circuits
- Always disconnect battery before opening fuse box
- Match fuse type and rating for replacements
- Label fuses and maintain a spare kit
- Test circuits after replacement to confirm function
