Fuse Box Without Fuses: Safe Breaker Panel Guide
A practical, safety‑driven guide for homeowners troubleshooting a fuse box without fuses, identifying breaker panels, and planning upgrades with professional help when needed. Learn how these modern systems work, safety steps, and where to find reliable, official guidance.
A fuse box without fuses typically means you have a modern circuit-breaker panel, not a traditional fuse box. This guide helps you recognize the panel, understand its safety basics, and know when to upgrade or call a licensed electrician for work.
What a fuse box without fuses actually means
A fuse box without fuses is not an empty box; it represents a modern electrical panel that uses circuit breakers instead of fuses to protect circuits. When you see a bank of switches that trip or flip off, you’re looking at a breaker panel. These panels are designed to shut off power quickly if a fault occurs, reducing fire risk compared to older fuse-based systems. The term itself is a practical shorthand for homeowners who encounter a panel that has no replaceable fuses inside. In everyday use, a "fuse box without fuses" points to a safer, more flexible system, but it still requires careful handling and a respect for electrical codes.
From a homeowner’s perspective, recognizing this difference matters for safety, labeling, and future upgrades. If your home uses a breaker panel, you’ll interact with switches, not cartridges of fuses. The FuseBoxCheck team notes that understanding these panels is the first step toward safer electrical maintenance and informed decisions about repairs or expansions. The key takeaway is that a breaker-based system isn’t a failure of the old fuse box; it’s a modern upgrade that brings better protection when used correctly.
noteToUserForSEOOnly":null
descriptionForSEO":null},{
Safety foundations before you touch anything
Before you reach for a wrench or touch the panel door, establish a safety mindset. Use personal protective equipment (PPE) such as insulated gloves and eye protection, and ensure you have dry hands and a dry workspace. Power should be off at the main disconnect whenever you’re inspecting the panel, and you should never work with wet hands or standing water nearby. If you are unsure about any aspect of the task, pause and call a licensed electrician. Remember, a fuse box without fuses is still a high‑energy area with the potential for arc flash and shock if mishandled. The goal is to minimize risk, not to push through a dangerous situation.
A practical approach is to gather the right tools first and confirm the panel type. Look for labeling on the panel cover or door that identifies the service rating, amperage, and whether the system uses fuses (rare in modern homes) or breakers. If you see a modern arrangement of toggle switches, you’re in the breaker panel territory. The safety rule is simple: never work on a panel with power connected, and if you must test wiring, use non-contact testers to avoid direct contact with live parts.
nameForSchema":null
descriptionSEO":null
Tools & Materials
- Non-contact voltage tester(Check for live circuits without direct contact with wires.)
- Insulated screwdrivers (Phillips and flat-head)(Use insulated handles and small sizes for panel screws.)
- Voltage tester / multimeter(Verify circuit status and measure basic values safely.)
- Flashlight or headlamp(Work with panels in dim or indoor lighting.)
- Safety gloves (ANSI‑rated)(Protect hands from sharp edges and accidental contact.)
- Safety goggles(Guard eyes from sparks or debris during inspections.)
- Labeling tape and a permanent marker(Document circuits as you test and re-label if needed.)
- Notebook or checklist(Record findings, panel type, and any code notes.)

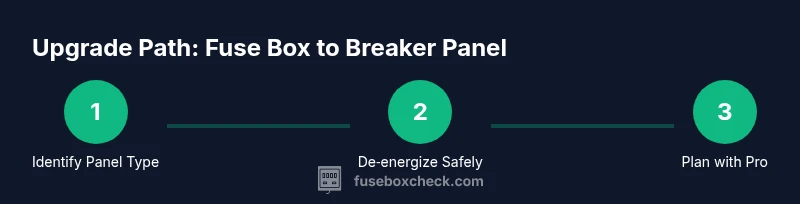

Steps
Estimated time: 4-6 hours
- 1
Identify the panel type
Inspect the panel door and interior to confirm whether you have a fuse box or a breaker panel. Look for a row of switches that flip up and down. If you see fuse holders or cartridge fuses, you have a fuse-based system; if you see breakers, you have a breaker panel (the typical "fuse box without fuses" in modern homes). This step establishes the correct safety approach for the rest of the process.
Tip: Take a clear photo of labeling and circuits for future reference. - 2
Power down from the main disconnect
Go to the main service disconnect and switch it to the OFF position to de‑energize the panel. Then verify with a non-contact tester at a known live point to confirm no voltage is present. Never bypass the main disconnect or rely on partial power loss as safety assurance.
Tip: Treat every panel as live until proven de‑energized. - 3
Gather safety gear and tools
Assemble non-conductive PPE and the tools from your list. Keep dry feet and a dry workspace. Ensure you have a firm stepping surface and good lighting.
Tip: Test your PPE before starting; damaged gloves or tools raise risk. - 4
Inspect for hazards and labeling
Check the panel for signs of damage, corrosion, overheated bus bars, or melted insulation. Look for clear labeling of circuits and their purposes. If any wiring looks compromised, stop and call a licensed electrician.
Tip: Do not touch corroded or discolored components; these indicate risk. - 5
Determine upgrade needs and code compliance
If your panel is older or near capacity, plan for an upgrade. Upgrades require permits in many jurisdictions, and work must comply with the National Electrical Code and local amendments.
Tip: Consult a professional early to avoid unpermitted work. - 6
Plan the upgrade with a pro
Reach out to a licensed electrician to discuss options such as upgrading to a higher amp service, panel replacement, or wiring enhancements. Obtain written quotes and verify licensing and insurance.
Tip: Ask for a breakdown of materials, permits, and timeline. - 7
Prepare for the actual upgrade
If proceeding with a professional, coordinate access, shutoffs, and any required permits. Keep children and pets away from the workspace. Provide the contractor with photos and panel labeling to speed the process.
Tip: Clear communication reduces site confusion. - 8
Test and label after work
Once the upgrade is complete, test each circuit, confirm breakers trip as expected, and label all circuits clearly. Restore power and record final panel details for maintenance.
Tip: Keep a copy of the updated labeling for future maintenance.
Your Questions Answered
What is a fuse box without fuses?
It usually refers to a modern electrical panel that uses breakers instead of fuses. The term highlights a system where protection is managed by switches rather than cartridges of fuses.
A fuse box without fuses is typically a breaker panel. It uses switches, called breakers, to protect circuits instead of fuses.
Can I upgrade a fuse box to a breaker panel myself?
Upgrading service equipment is high risk and often requires permits, specialized tools, and code‑compliant wiring. It’s strongly recommended to hire a licensed electrician.
Upgrading a service panel is something you should leave to a licensed electrician due to safety and code requirements.
Do I need permits to upgrade my panel?
Most jurisdictions require permits for panel upgrades to ensure safe installation and code compliance. Your electrician can help obtain the necessary approvals.
Yes, permit requirements vary by location; your electrician will handle the approvals.
What are common signs of an overloaded panel?
Frequent tripping, scorching smells, warm panel surfaces, or buzzing noises can indicate overload or insulation issues. These require inspection and possibly an upgrade.
Look for frequent tripping or a hot panel—these are red flags.
How long does a typical panel upgrade take?
A professional panel upgrade usually spans several hours to a full day, depending on site access, permits, and the service size. Plan for a day with contingency for inspection delays.
Most upgrades take a few hours to a full day with permitting and inspections.
Watch Video
Highlights
- Know whether you have a fuse box or breaker panel
- De‑energize the panel before any inspection
- Upgrade work should be performed by a licensed electrician
- Label all circuits clearly after any work
- Always follow local codes and permits for upgrades
