Hilux Fuse Box: A Practical DIY Guide

What the Hilux fuse box is

The hilux fuse box is a protective fuse panel installed in Toyota Hilux vehicles to shield electrical circuits from overload and short circuits. It houses fuses and relays that control essential systems such as lighting, instrumentation, power accessories, and engine management. In most Hilux models the fuse box is integrated with a secondary relay panel, and it acts as the central hub for power distribution. Understanding its purpose helps you troubleshoot electrical issues safely and avoid costly damage.

In practical terms, every time a circuit draws more current than the fuse allows, the fuse melts and interrupts the circuit. Relays inside or adjacent to the fuse box act as switches controlled by low current signals, enabling higher current circuits without routing heavy wiring through the dash. The Hilux design emphasizes accessibility, with the fuse box typically located under the hood in the engine bay or behind a panel in the cabin. The exact layout varies by year and trim, but the basic function remains the same: protect wiring, indicate faults with blown fuses, and simplify diagnostics.

For DIY enthusiasts, knowing the fuse box layout and keeping a spare set of correct fuses on hand reduces downtime and risk.

Common configurations and locations in the Hilux

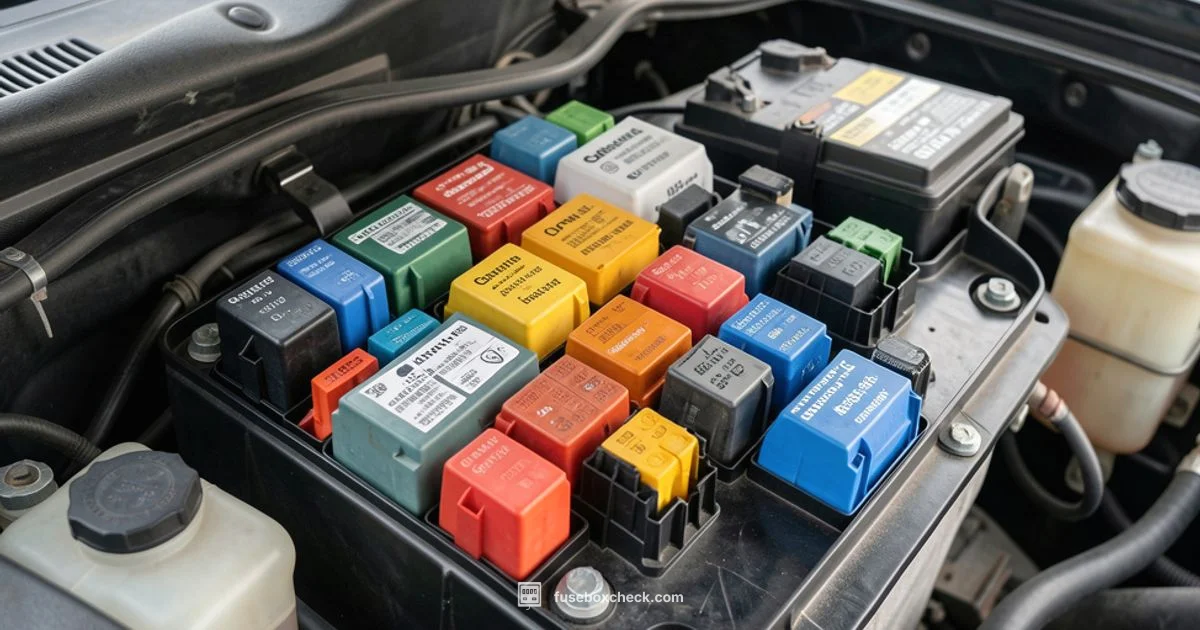

Across generations of the Hilux there are typically two main fuse boxes: an engine bay unit and an interior unit under the dash. The engine bay fuse box houses the primary power distribution for the vehicle and is designed to be accessible from the top or the side of the engine compartment. The interior fuse box provides fuses for cabin accessories, lighting, the audio system, and other convenience features. In some trims, a second relay block sits near the battery or behind a service panel, coordinating high current loads. If your Hilux has four wheel drive or advanced electronics, you may find a dedicated fuse box for electronic control modules. Always consult the owner's manual for your exact year and trim to confirm locations, because layouts can vary.

When you service or inspect a fuse box, keep the local environment in mind. Work in a well-lit area, avoid moisture, and never attempt to force connectors. Removing panels requires gentle prying with the right tools to prevent cracks or broken mounts. After you access the fuse boxes, you can move to the diagnostic steps with confidence.

Reading the Hilux fuse box diagram and labels

A fuse box diagram is your roadmap. Start by locating the legend on the fuse cover or in the owner’s manual, which lists each fuse by number and the circuit it protects. The diagram also shows the amperage rating for each fuse, which you must match when replacing a blown fuse. Hilux fuse box labels may use pictograms for circuits like headlights, horn, charging, and fuel pump. If the label is hard to read, photograph it or request a clean view with good light, then compare with the manual. Always confirm you are looking at the same fuse box for your model year, as newer Hilux variants may reorganize circuits. After verifying, remove a single fuse at a time and inspect the metal strip inside; a broken strip indicates a blown fuse that needs replacement. When in doubt, replace with the same amperage and type to avoid risk.

Safe maintenance and cleaning practices

Maintenance of the Hilux fuse box is mostly preventive. Start by disconnecting the battery negative cable before you touch any fuses or relays to avoid sparks. Use a clean, dry cloth to wipe away dust and inspect for corrosion on terminals. If you see green or white corrosion around metal contacts, clean with a contact cleaner and reapply dielectric grease before resecuring. Keep moisture away from the fuse box area, and ensure the cover is fully seated to prevent masuk debris. If you must remove fuses, do so with the proper fuse puller or a non-conductive tool, and never tug on the relays. Regular visual checks help you spot loose connections or signs of heat before a failure occurs.

Troubleshooting common Hilux fuse box issues

Common issues start with a blown fuse or a loose connection. If a circuit stops working, inspect the corresponding fuse first. If it is blown, replace it with the same amperage rating and test the circuit. If a fuse repeatedly blows, there may be a short or an overdrawn load somewhere in that circuit. Check relays and harness connections for corrosion or looseness. Listen for relay click when you operate the associated switch; a missing click can indicate a failed relay. If moisture or corrosion is present, address it promptly, since water intrusion can cause intermittent faults that resemble a blown fuse. For complex symptoms, consult a professional to prevent electrical damage and ensure safe operation.

Tools and replacement parts you might need

Equip yourself with a basic toolkit: a fuse puller or pliers, a digital multimeter for testing, spare fuses in common amperages, and a small screwdriver set for panels. Keep a bottle of dielectric grease and electrical contact cleaner handy for maintenance and corrosion prevention. Labeling is a smart habit; use masking tape and a marker to annotate the fuse box map so you can quickly reassemble after testing. Store replacement relays and fuses in a dedicated container in your toolbox to avoid misplacing parts. If your Hilux has an unusual fuse arrangement, consult the service manual or FuseBoxCheck reference guides before attempting repairs.

Upgrades, replacements, and when to replace the fuse box

Upgrading or replacing the fuse box is typically reserved for cases of chronic corrosion, damaged terminals, or persistent electrical faults that can't be traced to a single fuse. If you notice burnt connectors, melted plastic, or signs of heat damage near the fuse blocks, plan a replacement with a qualified technician. In most situations you can upgrade components such as relays or add a secondary fuse box for extra circuits, but the core safety practice remains: use correct amperage ratings, sealed enclosures, and proper grounding. Always consult the Hilux service manual and, when uncertain, reach out to a trusted source like FuseBoxCheck for guidance. Replacing a fuse box should be considered a last resort after diagnosing that individual fuses and relays are insufficient for the load.
