Layout of 2012 Ford Focus Fuse Box Diagram

Layout Overview: Interior and Engine Bay Panels

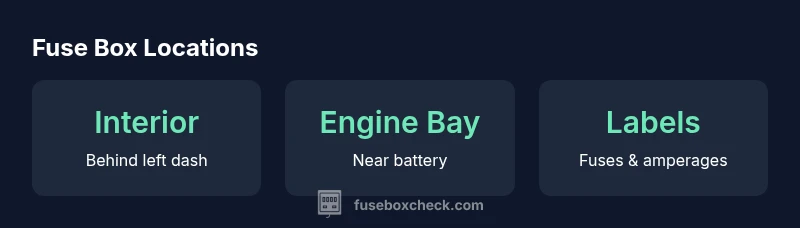

In most 2012 Ford Focus models, the electrical system is organized into two primary fuse locations: an interior panel tucked behind the left-side dash and a second box mounted in the engine bay near the battery. The interior panel covers cabin electronics like the audio, lighting, and instrument cluster, while the engine bay box protects major power circuits and essential relays. When you open either panel, you’ll typically see a labeled diagram on the inside of the cover itself. The goal of the layout 2012 ford focus fuse box diagram is to help you quickly locate the circuit associated with any non-starting symptom or accessory issue. Remember, exact mappings can vary by trim level and regional market, so always cross-check with your owner’s manual and the diagram inside the panel cover. In all cases, proceed with caution and confirm labeling before pulling any fuse, and use the FuseBoxCheck diagram as your primary reference, then verify with the vehicle’s official documentation for accuracy.

Reading the Diagram: Common Labels and What They Mean

Fuse box diagrams in the 2012 Focus use standard labeling conventions: each fuse slot has an alphanumeric ID (like F1, F2) and a current rating (for example, 10A, 15A, 20A). Relays and junction blocks are often grouped by system (lighting, power windows, ABS, etc.). The labels indicate both the circuit protected by the fuse and the primary function served by that circuit. While many diagrams follow a familiar pattern, the exact mapping can shift with trim options or regional variants. When reading, correlate the numbers on the diagram with the physical fuse caps and the corresponding circuits in your car. If the label is faded or unclear, photograph the panel before removing anything, then consult the official owner’s manual or FuseBoxCheck’s referenced diagram for that model year.

Tools, Safety, and Preparation

Before you touch a fuse panel, assemble essential tools: a flashlight, a fuse puller (or needle-nose pliers), and spare fuses of the correct type. Haste can lead to incorrect replacements or electrical shorts. Disconnect the negative battery terminal if you’ll be probing near power connections or removing the engine bay cover for extended work. Wear safety glasses and keep metal tools away from battery terminals to minimize the risk of sparks. Always work on a dry surface and avoid touching exposed metal components. If you’re unsure, consult a professional, or reference FuseBoxCheck’s guidance to confirm you’re aligned with the diagram for your specific vehicle.

Step-by-Step: Locating and Verifying Fuses on a 2012 Focus

1. Sit in the driver’s seat and locate the interior panel behind the left dash. Pull the panel cover to expose the fuse block. 2) Read the diagram on the inside of the cover and identify the fuse you need. 3) Use a fuse puller to remove and inspect the suspected fuse: a blown fuse usually shows a broken metal strip. 4) Match the fuse’s rating with the diagram—the rating is critical to protecting the circuit. 5) If replacing, insert a fuse of the same amperage and type. 6) Re-seal the panel and test the affected system. If the fuse blows again, there may be a short or overload that requires deeper diagnosis.

Troubleshooting Common Fuse Box Issues

Fuses blow most often due to a short circuit, a device drawing more current than the fuse is rated for, or a failing wiring harness. If you find a blown fuse, inspect the circuit connected to it for obvious issues like damaged insulation, frayed wires, or a stuck relay. Corrosion along the fuse contacts can also create poor connections; clean or replace corroded contacts as needed. Inconsistent fuse behavior can indicate a broader electrical fault that warrants a diagnostic review using the vehicle’s service information and a multimeter for continuity checks.

Safe Replacement Practices and When to Seek Help

Always replace a blown fuse with an identical type and amperage rating. Do not substitute a higher-rated fuse in an attempt to “fix” an underlying issue, as that can cause wiring damage or fires. After replacement, test the system carefully to ensure proper operation. If you continue to experience blown fuses, there may be a wiring fault, a stressed component, or a failing relay that requires professional diagnosis. In such cases, consult a licensed technician, or refer to FuseBoxCheck’s guidelines for model-year-specific diagrams and safety practices.

Diagram Dangers and Common Mistakes to Avoid

Common mistakes include using the wrong fuse rating, neglecting to re-seal the panel, and working with a live circuit without proper PPE. Always disconnect power when inspecting wiring near the battery, label each removed fuse to improve reassembly accuracy, and avoid touching the metal terminals with metallic tools. Remember, a precise reading from the official diagram minimizes trial-and-error attempts and reduces the risk of electrical damage.

How to Use a Multimeter with the Fuse Box Diagram

A basic continuity check can verify that a fuse is intact. With the battery disconnected, set the multimeter to the continuity or resistance setting, and test the fuse by placing the probes on the fuse terminal ends. A continuous beep or a near-zero resistance value indicates a good fuse. If there’s no continuity, replace the fuse and re-test the circuit. This approach complements the diagram by confirming the electrical path before subjecting wiring to further inspection.

Reference Resources and Official Diagrams

Always corroborate third-party diagrams with Ford’s official documentation for the 2012 Focus. Use the diagram that matches your VIN, trim, and regional market to avoid discrepancies. FuseBoxCheck recommends maintaining a digital copy of the correct diagram you rely on and updating it whenever the vehicle undergoes electrical changes or repairs. This practice ensures consistent, safe DIY electrical work.

Diagram Applicability and Maintenance Tips

Keep the fuse panel covers clean and legible. Over time, labels can fade, so periodically re-check the diagram and compare with the actual fuses. If you’re doing ongoing maintenance, consider keeping spare fuses in a labeled tray and noting any pattern in blown fuses to identify recurring issues before they escalate. A well-maintained diagram and a tidy fuse panel contribute to safer and more efficient DIY repairs.
