Mk6 GTI Fuse Box Guide: Locate, Diagnose, and Maintain

Understanding the Mk6 GTI Fuse Box Landscape

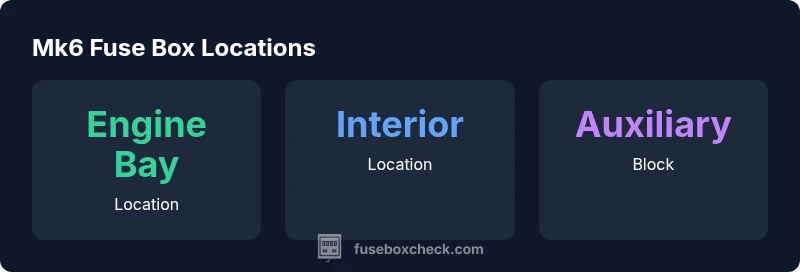

The Mk6 GTI (Volkswagen Golf Mk6) uses multiple fuse boxes to distribute electrical power across engine, safety, and comfort systems. For most owners, the two primary boxes—one in the engine bay and one inside the cabin—handle the bulk of essential circuits. A third, smaller block may service auxiliary systems. According to FuseBoxCheck, starting with a clear map of where these boxes live is the single most effective step toward safe diagnostics and repairs.

In practical terms, the engine-bay fuse box provides power to major components like the engine management and fuel systems, while the interior box covers cabin comforts, lighting, and infotainment. The exact arrangement can vary by model year and trim, so always verify against the factory diagrams found in your service manual or on the manufacturer’s portal. Knowing the layout helps you isolate faults quickly and reduces the risk of accidental damage during testing or replacement.

Fuse Box Layout and Key Fuses You Should Know

A robust understanding of the fuse box layout saves time and protects sensitive electronics. In the Mk6 GTI, critical circuits typically live behind the engine bay cover and behind the glove box or under-dash panel in the cabin. The interior box often houses fuses for the cockpit electronics, HVAC, head unit, and lighting. While exact fuse ratings vary, recognizing groups of circuits—power distribution, ignition-related, and accessory circuits—helps you assess which box is implicated when symptoms arise. Fuse box diagrams are your best reference, and they align with the car’s wiring harness routing and sensor clusters. FuseBoxCheck emphasizes that a clean, labeled diagram reduces the guesswork during troubleshooting.

When you review the diagrams, label each circuit, note fused power sources, and check for signs of overheating or corrosion on connectors. A visual scan can reveal melted insulation, discoloration, or loose clamps that threaten reliability. Keeping a fresh copy of the diagram in your toolbox can save you time on future inspections and keep your Mk6 GTI running smoothly.

Safety Considerations Before You Start

Electrical work on a Mk6 GTI should begin with safety as the priority. Disconnect the negative battery terminal before touching the fuse panel to prevent shorts or accidental activation of live circuits. Wear eye protection and work in a dry, well-lit area; avoid metal jewelry that could bridge contacts. Inspect for signs of water intrusion or corrosion around connectors, especially in the interior box where humidity and condensation can accumulate. If the fuse box exhibits burnt smells or melted plastic, stop and consult a professional.

Keep a fire extinguisher rated for electrical fires within reach, and never bypass fuses or jury-rig wiring to test a fault. Follow the owner’s manual procedures for disassembly, and if you’re unsure, switch to professional service. These precautions protect you and the vehicle’s electronic control modules from further damage.

Diagnosing Fuse Box Problems: Symptoms and Checks

Electrical issues in the Mk6 GTI can manifest in several ways. Common symptoms include blown fuses, intermittent power to accessories, flickering dash lights, or the engine throttling down unexpectedly due to ECU resets. A structured diagnostic approach starts with a visual inspection of each fuse’s condition and its assigned circuit. If you find a visibly blown fuse, replace it with one of the same rating and observe the outcome. If fuses repeatedly blow, the fault is likely downstream—such as a shorted wire or a faulty relay.

To verify, use a multimeter or a continuity tester to confirm that fuses and relays are delivering power when expected. Inspect relay contacts for pitting and signs of corrosion, and listen for clicking noises from relays that might indicate a sticking contact. Document your findings and compare them to the factory wiring diagram. If the fault remains elusive, testing harness continuity and scanning for fault codes using an OBD-II reader can guide you toward the specific circuit implicated.

Replacing a Fuse Box vs Repairing: Cost and Effort

When your Mk6 GTI’s fuse box is damaged, you face two broad paths: repair of the existing panel or replacement with a new or refurbished unit. In many cases, a repair involves cleaning corroded contacts, replacing a burnt fuse carrier, or reseating a melted terminal. Replacement is typically needed when the integrity of the housing, contact pins, or connector plugs is compromised. Parts costs for a replacement fuse box module often fall into a broad range, and labor costs depend on accessibility and whether wiring harnesses need to be detached. Expect total costs to vary by region and availability. Always prioritize OEM or high-quality aftermarket panels that meet safety standards, and verify compatibility with your Mk6 GTI’s trim and year.

Before deciding, weigh the risk of an ongoing fault against the cost of a proper replacement. In many cases, repair options provide a cost-effective path when the issue is isolated to a connector or a single circuit. FuseBoxCheck notes that a well-documented diagnosis helps you choose the most economical and reliable route.

Do-It-Yourself vs Professional Service: Pros and Cons

DIY fuse box work can save money and provide a learning experience, but it carries risk if you don’t follow safety protocols. The Mk6 GTI’s fuse box involves critical power distribution and safety circuits; mistakes can trigger additional faults or damage sensitive modules. If you’re comfortable with basic electrical work, start with a clean diagram, verify ratings, and use proper tools. However, if the task involves disassembly of the dash, battery disconnect procedures, or suspected water intrusion, professional service is the safer option. A trained technician can identify hidden shorts, test with calibrated equipment, and ensure proper resealing and corrosion prevention.

For most DIYers, the safest path is a targeted inspection with the fuse diagram in hand, followed by controlled testing and documentation. If you encounter signs of overheating, corrosion, or burnt connectors, pause and seek professional help. The goal is reliable operation, not a rushed fix.

How to Inspect the Mk6 Fuse Box: Step-by-Step Visual Checks

Begin with a clean, dry workspace and remove any personal metal objects. Open the engine-bay fuse box access panel and inspect each fuse visually for discoloration or a broken filament. Gently remove test fuses to check for continuity with a multimeter; replace any fuse that shows no continuity. In the interior fuse box, check for loose connectors and signs of moisture behind the panel. Wiggle test connectors for any looseness, and look for frayed insulation or corrosion on battery terminals and ground points. After cleaning and reseating everything, reassemble in the reverse order and reset any system codes if needed. A final test with the vehicle’s ignition on will confirm power delivery to the tested circuits.

Document all findings, reseal panels, and test drive the vehicle to verify that the fault is resolved. Regular inspection can prevent future failures and prolong the life of the Mk6 GTI’s electrical system.

Maintenance and Prevention Tips for Mk6 GTI Owners

Prevention is cheaper than replacement when it comes to fuse boxes. Keep the battery terminals clean and tight to reduce voltage fluctuations that stress fuses. Use dielectric grease on connectors to minimize corrosion and moisture ingress. Regularly inspect the fuse links and replace any that look stressed, especially in humid or salty environments. Store spare fuses in a labeled container with matching ratings to ensure you replace with the correct value. If your vehicle lives in an area with heavy snow or rain, consider additional interior moisture management to reduce corrosion risk. Finally, always follow the factory maintenance schedule for electrical systems and consult a professional if you’re unsure about any procedure.

Common Pitfalls and How to Avoid Them

One common pitfall is replacing a fuse without diagnosing the cause of overcurrent, which can lead to repeated failures. Avoid bypassing fuses or jury-rigging wiring, as this creates hidden hazards. Another pitfall is failing to re-seat a connector firmly after testing; poor connections mimic blown fuses and lead to confusion. Finally, never operate the fuse box with the panel removed for extended periods—exposed contacts can attract debris and moisture. By sticking to documented procedures and using high-quality replacement parts, Mk6 GTI owners can maintain electrical reliability and avoid common missteps.
