Relay Fuse Block: Safe Use, Testing, and Maintenance

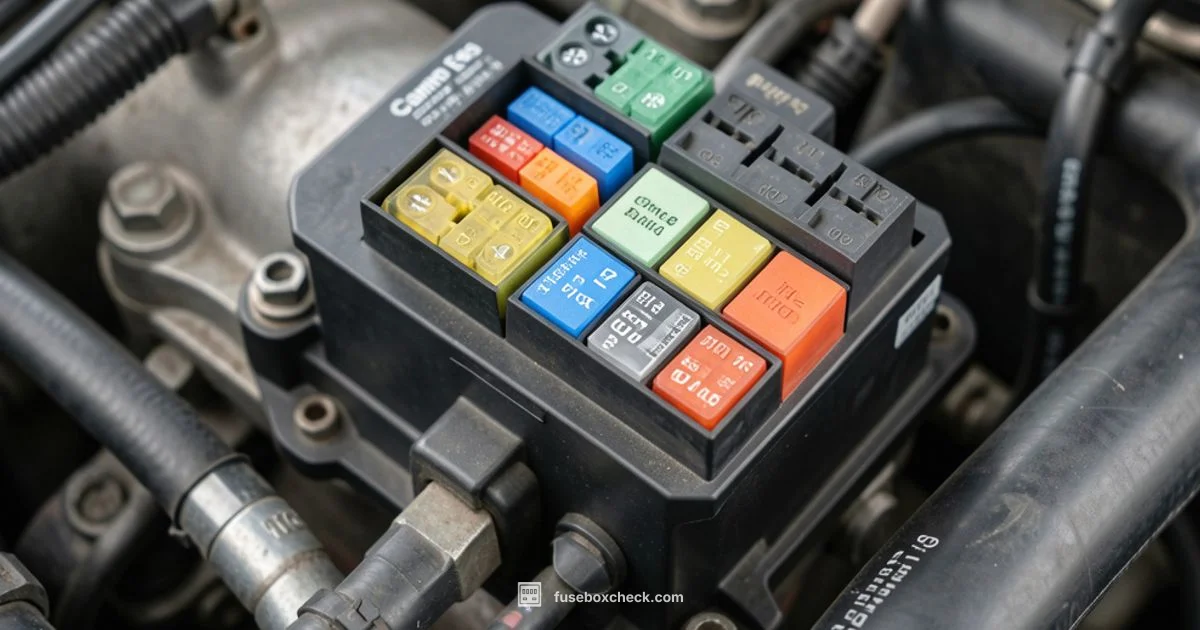

What is a relay fuse block?

A relay fuse block is a compact enclosure that houses fuses and electrical relays to protect and switch high current circuits. It combines overcurrent protection with controlled switching in a single unit. These assemblies simplify wiring, improve reliability, and allow quick diagnosis when problems arise. In automotive and industrial settings, a relay fuse block can manage heavy loads such as lighting, pumps, fans, and climate controls by combining multiple fuses and relays in one module. The term is sometimes used interchangeably with fuse blocks or relay modules, but the core idea remains the same: a single unit that protects circuits and provides controlled switching for safe operation.

From a DIY perspective, knowing what a relay fuse block does helps you identify where problems originate, plan safe repairs, and avoid bypassing protective components that can lead to bigger hazards.

Where you find relay fuse blocks

Relay fuse blocks appear in several environments. In cars, you will often find them in the engine bay or behind the dashboard, near the firewall where they can protect critical systems. Recreational vehicles, trucks, and marine vessels use similarly designed blocks to protect electrical accessories while allowing high current to run loads safely. Some home or industrial panels also adopt relay fuse blocks for compact control of multiple circuits. When you locate a block, take note of the model markings, current ratings, and the arrangement of fuses and relays. This information helps you assess compatibility when you need to replace or upgrade. Understanding the layout also helps you plan future expansions without overloading any single circuit.

Inside the enclosure: components explained

A relay fuse block contains several key components that work together to protect circuits and enable controlled power delivery:

• Fuses or fuse holders that provide sacrificial protection by opening the circuit when an overcurrent occurs.
• Relays that act as electromagnetic switches controlled by a low power signal.
• Terminal blocks and connectors for clean, reliable wire connections.
• Bus bars or jumpers that organize power paths and minimize voltage drop.
• A protective lid or cover that keeps dust and moisture out and helps meet safety standards.
• Rating marks and labeling that indicate voltage, amperage, and configuration. Understanding these parts helps you diagnose faults and plan safe repairs.

Knowing these elements helps you quickly spot mismatches during replacement and avoid pairing an incompatible fuse with a relay that cannot handle the same load.

How it protects circuits: the core principle

The relay fuse block protects electrical circuits by combining protective devices with switching elements. Fuses provide overcurrent protection by opening the circuit when a fault occurs, while relays allow a low current control signal to safely switch a high current load without routing power through the control circuit. This separation reduces heat in the control side, minimizes wiring complexity, and enables centralized control of multiple loads. Different fuse types (fast-acting versus slow-blow) cater to distinct load profiles, such as motors with inrush currents. In practice, the block helps ensure that a fault in one branch does not propagate to other parts of the system, preserving safety and enabling easier maintenance.

Understanding current flow and control signals

In a typical relay fuse block, the control side energizes the relay coil with a low power signal from a switch, sensor, or controller. When energized, the coil creates a magnetic field that closes the contacts, allowing current to flow from the power source to the connected load. When the control signal stops, springs reopen the contacts and cut power to the load. The fuse line sits in series with each load, so if a fault causes excessive current, the corresponding fuse opens and isolates that circuit. Proper design and labeling help prevent false triggers and accidental cross-wiring, which are common sources of trouble for DIY projects.

Common failure modes and symptoms

Relays and fuses in a block can fail in several ways. Common symptoms include blown fuses that repeatedly fail, a relay that clicks but does not power the load, or no sound at all when the control signal is applied. Loose or corroded terminals can cause intermittent operation, heat damage can discolor plastic, and water intrusion can short circuits inside the enclosure. A failed relay may stall the entire circuit, complicating diagnostics. Regular visual checks help you catch corrosion, loose connections, or signs of overheating before a breakdown occurs. Proactive inspection is especially important in harsh environments like engines bays, moisture-prone basements, or humid garages.

Testing a relay fuse block with basic tools

Begin with safety as your top priority: disconnect power and, if possible, disconnect the battery in automotive applications. Start with a visual inspection for corrosion, damaged wires, or loose terminals. Then use a multimeter to check fuse continuity and relay coil resistance. Verify that energizing the control signal produces a click and that power reaches the load. If you cannot energize the coil or the load remains dark, recheck the wiring and the control signal. For a thorough test, measure voltage at the input and output of the block under normal operating conditions to identify where power is being lost. Remember to reassemble and retest after any adjustment.

Replacing or upgrading a relay fuse block

If you determine a block is beyond repair, replace it with a unit that matches the required voltage rating, current capacity, and pin configuration. Before removal, label or photograph wires to ensure correct reattachment. Disconnect power and remove mounting screws, then transfer wires carefully to the new block, ensuring clean, tight connections. Reconnect power and perform a controlled test to confirm that each circuit powers on and that no fuses blow prematurely. Upgrading to a higher amperage unit can accommodate additional loads, but do not exceed the system’s design limits, as that can introduce new risks. Always dispose of the old unit according to local regulations.

Installation tips and best practices

Install the relay fuse block in a dry, ventilated location away from heat sources and moisture. Use properly rated connectors and ensure each wire is terminated securely with the correct torque. Keep the wiring harness tidy, route wires away from moving parts, and label every circuit for future maintenance. If the block is mounted in an engine bay, consider vibration damping and shield from motor heat. Use sealant or protective covers where needed and follow the manufacturer’s installation instructions and local electrical codes.

Maintenance routines and preventive care

Create a simple maintenance routine that includes periodic visual inspections for corrosion, loose connections, and signs of moisture or heat damage. Clean dust and debris from the block, reseat connectors, and replace aging components before they fail. Maintain a log of inspections and any replacements to track wear over time. While many blocks are designed for long service life, a proactive approach helps avoid unexpected outages and keeps electrical systems reliable.
