Understanding the Vauxhall Insignia fuse box layout

According to FuseBoxCheck, the Vauxhall Insignia fuse box is designed with separate compartments for engine bay fuses and interior fuses. The engine bay box tends to be larger and houses power-critical circuits, while the cabin box controls interior accessories such as lights, HVAC, and infotainment. Understanding this layout helps you quickly locate the fuse responsible for the symptom you’re troubleshooting. Always start by consulting the owner’s manual or the fuse diagram found on the fuse box cover. This reduces the chance of pulling the wrong fuse and triggering a larger electrical fault.

For homeowners and DIY enthusiasts, taking a moment to map the two boxes on a simple sketch can save time when symptoms arise. If you don’t have the manual, many diagrams are also printed on the underside of the fuse box lid. Keeping a labeled diagram handy makes future diagnostics faster and safer.

Interior fuse box vs engine bay fuse box: what’s inside

The Insignia typically features at least two fuse boxes: an interior fuse box behind the glove compartment or under the dash, and an engine bay fuse box near the front of the engine compartment. Each box contains fuses of varying amperages labeled for specific circuits. Spares may be provided in a small compartment or in the lid. When diagnosing a problem like a non-working horn or dimmed headlights, you’ll often start with the interior box for convenience, then check the engine bay box if symptoms point to high-draw circuits.

Knowing the exact fuse layout helps you quickly determine whether a fault lies with lighting, HVAC, or control modules. If you’re unsure, a quick cross-check against the printed diagram on the lid can prevent misdiagnosis and unnecessary part replacements.

Safety first: working near a live car electrical system

Electrical work on a vehicle should be approached with caution. Disconnect the battery if you’re going to remove or replace fuses that could interact with alarm systems or airbags. Wear insulated gloves and use a plastic fuse puller if available to avoid shorting terminals. Keep metal tools away from exposed terminals. If you smell burning insulation or notice melting plastic, stop and consult a professional.

Safety isn’t optional — it’s foundational. Set up a clean, dry workspace and never work on a live circuit without taking precautions. When in doubt, step back and consult a professional rather than risking personal injury or further damage to the car’s electrical system.

Reading the fuse diagram and identifying fuses

Fuse diagrams show each fuse position with its amp rating and a short description of the circuit it protects. Visual inspection can reveal a blown fuse (the metal filament is broken). For a more reliable check, use a multimeter in continuity mode to verify an open circuit. Always replace with the same amperage rating and type (fast-blow vs slow-blow). This helps prevent overloads and electrical fires.

Reading the diagram accurately is a skills-building moment for DIYers. If the fuse positions are unfamiliar, pause and verify against the car’s service manual or trusted online diagrams. A small mistake here can lead to larger electrical faults or intermittent problems that mimic a fuse issue.

Tools, fuses, and spare parts you should have

Keep a basic kit ready: a flashlight, insulated gloves, a multimeter, a fuse puller, and a supply of blade or mini blade fuses in the correct amperages. The most common ratings in modern vehicles are 5A, 10A, 15A, 20A, and 30A; check the diagram to confirm. Also carry a spare relay if a relay-related fault is suspected.

Having the right tools on hand makes the diagnostic process smoother and safer. Store spare fuses in a labeled container. Before purchasing extras, confirm the Insignia’s fuse box type (engine bay vs interior) so you buy compatible fuses and relays.

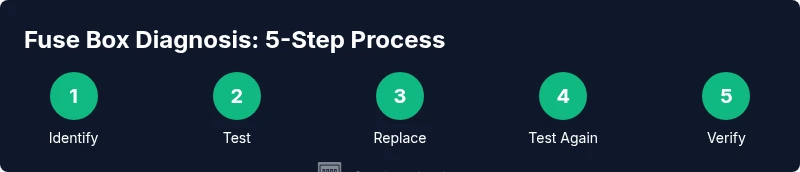

Step-by-step diagnostic approach: when and how to test

Begin by turning off the ignition and removing the key to avoid accidental power. Inspect the fuse box cover for circuit labels. Remove a suspected fuse with the fuse puller and test for continuity. If the fuse is blown, replace it with a fuse of the same rating and type. Reconnect the battery if you had it disconnected and test the circuit. If the fuse blows again, check for short circuits or devices drawing excessive current.

A methodical approach reduces guesswork and keeps you safe. Document the result of each test and the exact fuse position to track patterns over time, which helps in diagnosing recurring issues without unnecessary replacements.

Replacing a blown fuse: how to do it safely and correctly

With a blown fuse, insert a replacement fuse of identical rating. Do not use higher-rated fuses to compensate for a fault. After installation, re-test the circuit with the key in accessories or ignition as appropriate. If you’re replacing a fuse in the interior box for the horn or lights, re-check those functions. If the fuse immediately blows again, stop and seek professional help.

Always handle fuses with dry hands and avoid touching the fuse element directly. If the fuse cover is difficult to reseal, recheck that you’ve seated the fuse fully and that the lid’s seal is intact to guard against moisture ingress.

Common causes of fuse failure and prevention tips

Fuses blow for several reasons: a temporary overload, a short circuit, a failing component, or loose connections. Loose battery or ground connections can also cause intermittent faults that look like a blown fuse. Regularly inspect the fuse boxes for corrosion, especially in areas with high humidity. Use proper torque when reinstalling cover screws to ensure a tight seal.

Preventive care is often simpler than reactive fixes. Periodic visual inspections, keeping the area dry, and ensuring the battery terminals and ground connections are clean reduces the chance of unexpected fuse failures and keeps the Insignia’s electrical system reliable.

Quick path to reliability: maintenance plan and next steps

Create a simple maintenance schedule: monthly quick checks of fuse box covers, yearly battery and alternator tests, and keeping spare fuses on hand. Follow your car manual for recommended fuse ratings and inspect critical circuits like ignition, charging, and climate control. The FuseBoxCheck team suggests keeping a log of fuse replacements and symptoms to spot patterns early.

Laying out a routine now pays off later. A few minutes spent each month can prevent a roadside emergency, ensure comfort features work when you need them, and extend the life of electrical components by avoiding corrosive damage and heat buildup. The habit also makes it easier to troubleshoot with a trusted guide or mechanic when anomalies occur.

],
