What Old Fuse Boxes Look Like: Identification Guide
Learn how to identify what old fuse boxes look like, common designs, safety hazards, and upgrade options. A practical guide by FuseBoxCheck for homeowners and DIY enthusiasts.
Old fuse boxes are the original electrical distribution panels that house fuse carriers instead of circuit breakers. They protect circuits by interrupting current when a fuse melts.
What Do Old Fuse Boxes Look Like? A Practical Overview

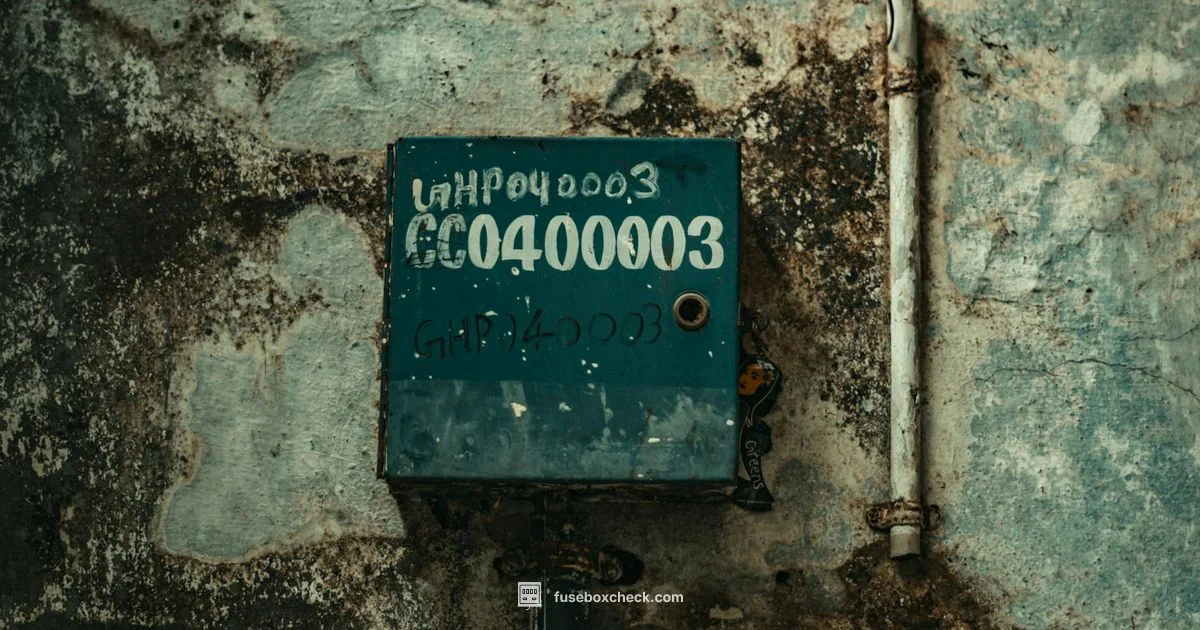

What do old fuse boxes look like in real homes? The short answer is that designs vary by era and region, but there are common visual cues you can rely on. According to FuseBoxCheck, recognizing these cues is the first step toward safety and planning an upgrade. In many houses, the panel sits in a basement, utility room, or garage, hidden behind a metal or wooden door. You may see a row of fuse carriers or cartridge fuses behind a cover plate. If you run your hand along the top edge and feel a metallic or wooden frame with a simple latch, you are likely looking at an older installation. The phrase what do old fuse boxes look like is a frequent search among homeowners, especially when they want to determine if a retrofit is needed. Remember that the exact appearance varies, but the core idea remains the same: a standalone box with fuse holders rather than modern breakers.
Common Enclosure Styles and Materials
Old fuse boxes come in several enclosure types. Metal enclosures are common and may show signs of wear like rust or pitting, while wooden backings are also seen in retrofits and early homes. Some panels are flush-mounted for a seamless wall look, others protrude slightly from the surface. The doors are often simple and uninsulated, with a small window or label area for circuit information. Whether metal or wood, these boxes usually have a removable front cover exposing the fuse holders. You may also notice screws, rivets, or hinges that reflect manufacturing practices from decades past. Fuse holders behind the door are often visible as cylindrical cartridges or straight fuse elements. Recognizing these features helps you gauge the age and the scope of any upgrade you may plan.
Inside the Box: Fuse Carriers, Labels, and Wiring
Behind the front cover of an old fuse box you typically find a row of fuse carriers that hold individual fuses for each circuit. Labels indicating which room or appliance each fuse protects are common, though they may be faded. Wiring inside is usually larger gauge than modern circuits, and you may see cloth-insulated leads or early plastic coverings. The layout is straightforward: a panel with a bank of fuses corresponding to different circuits, and a main fuse or main switch that controls the overall feed. The lack of modern labeling and color coding can make it harder to read, which is a hint that a professional evaluation is wise before any work begins. If you’re curious about the exact model or era, compare visible features to era-based guides from reputable sources.
Safety Hazards Frequently Found in Aged Panels
Aged fuse boxes can pose safety risks. Common hazards include signs of overheating like discoloration around fuse slots, a warm or acrid smell, corroded terminals, bent or exposed wiring, and a lack of proper labeling. Dust and rust can compromise connections and increase resistance, producing heat. In some cases, panels are mounted near water sources or in damp basements, which is a red flag for electrical safety. Any popping, buzzing, or repeated tripping suggests you should stop using the system and call a licensed electrician. FuseBoxCheck emphasizes that visible damage is not just a modernization issue; it is a clear safety concern that warrants professional assessment.
Era Clues: Dating Your Fuse Box by Features
Owners often wonder how old their fuse box is. The era can sometimes be inferred from construction materials, label typography, and fuse type. For example, screw-in fuses and cartridge fuses were common in mid-century homes, while certain finishes and enclosure styles point to specific decades. The design of the door, the presence of a main switch, and the arrangement of the fuse holders can provide hints. While dating an exact year can be tricky without serials or permit records, comparing features to published industry timelines helps narrow down the probable era. FuseBoxCheck notes that understanding the approximate age guides you toward reasonable upgrade timelines and compliance checks.
Upgrading Paths: Options for Modern Safety
Upgrading from a traditional fuse box to a modern panel is often a smart safety decision. Options include converting to a circuit breaker panel, adding a subpanel, or upgrading the service entrance with new metering and grounding. The choice depends on your home’s wiring, service capacity, and local codes. Modern panels offer clearly labeled circuits, arc fault and ground fault protection, and easier maintenance. When planning upgrades, consider whether to replace the entire panel or install a subpanel to minimize disruption. FuseBoxCheck recommends consulting a licensed electrician to assess service capacity and ensure code compliance.
Safety First: Handling An Old Fuse Box Without Risk
If you must approach an old fuse box, start with safety. Turn off the main power at the meter or main switch if present, and avoid touching exposed conductors. Do not attempt to replace aged fuses or open if you’re unsure of your wiring knowledge. Use insulated tools and keep water away from the area. A professional assessment is essential before any work begins. The goal is to determine whether the old panel can be safely upgraded or if a complete replacement is required. This is particularly important in homes with outdated or damaged insulation, corroded terminals, or signs of overheating.
DIY Review Checklist Before Upgrading
Before calling a contractor, perform a basic homeowner check. Confirm the main service size matches your home’s needs, inspect for visible corrosion or loose connections, note any unusual odors, and photograph the panel for documentation. Check that labels are legible and describe each circuit. Prepare a rough space plan indicating room-by-room loads to help an electrician design an appropriate upgrade. Remember, safety comes first; if anything looks compromised, pause and seek professional guidance. This checklist helps homeowners gather essential information for a smoother upgrade.
Your Questions Answered
What does an old fuse box look like?
Old fuse boxes usually come in a metal or wood cabinet with a removable front plate. Behind it, you’ll find a bank of fuse carriers or cartridges that protect each circuit. The design varies by era, but the general layout is a panel, door, and fuse holders.
Old fuse boxes are metal or wood enclosures with a removable door and a set of fuse holders behind it.
Are old fuse boxes safe to have in a home?
They can be safe if well-maintained and up to code, but many require upgrading to modern breakers for improved safety and reliability. If you notice overheating, buzzing, or tripped fuses, treat it as a warning and consult a professional.
They can be safe with proper maintenance, but signs of aging often mean an upgrade is wise.
When is upgrading from a fuse box necessary?
Upgrade is typically recommended when the panel is outdated, shows signs of wear, or when you plan major electrical work. Upgrading improves safety features like overcurrent protection and arc fault protection, and helps meet current electrical codes.
Upgrade is often necessary when the panel is old or damaged or when you’re adding new circuits.
Do I need permits to upgrade my fuse box?
Most jurisdictions require permits for service upgrades and panel replacements. A licensed electrician will handle the permitting process and ensure all work meets local codes and safety standards.
Permits are usually required; a licensed electrician will manage them for you.
Can I upgrade the panel without rewiring the house?
In many cases you can upgrade the panel itself without rewiring the entire house, but older wiring may need inspection and replacement if it doesn’t meet current safety standards. An electrician will determine the best approach.
Often you can upgrade the panel first, but your wiring might need attention too.
What does a modern replacement involve and how long does it take?
A typical upgrade involves installing a new breaker panel, upgrading service capacity if needed, and ensuring proper grounding. The duration depends on the home and complexity but planning with a pro helps minimize disruption.
A typical upgrade takes a day or two, depending on complexity.
Highlights
- Identify the look and materials to determine age
- Recognize common hazards to avoid risky DIY work
- Plan upgrades with a licensed electrician for safety and compliance
- Document labeling and wiring before upgrading
- Understand that modern panels improve safety and reliability
