What Is a Fuse Box Relay? A Practical Homeowner Guide
Learn what a fuse box relay is, how it works, where it sits in your panel, and safety tips for DIY homeowners. A practical guide by FuseBoxCheck.

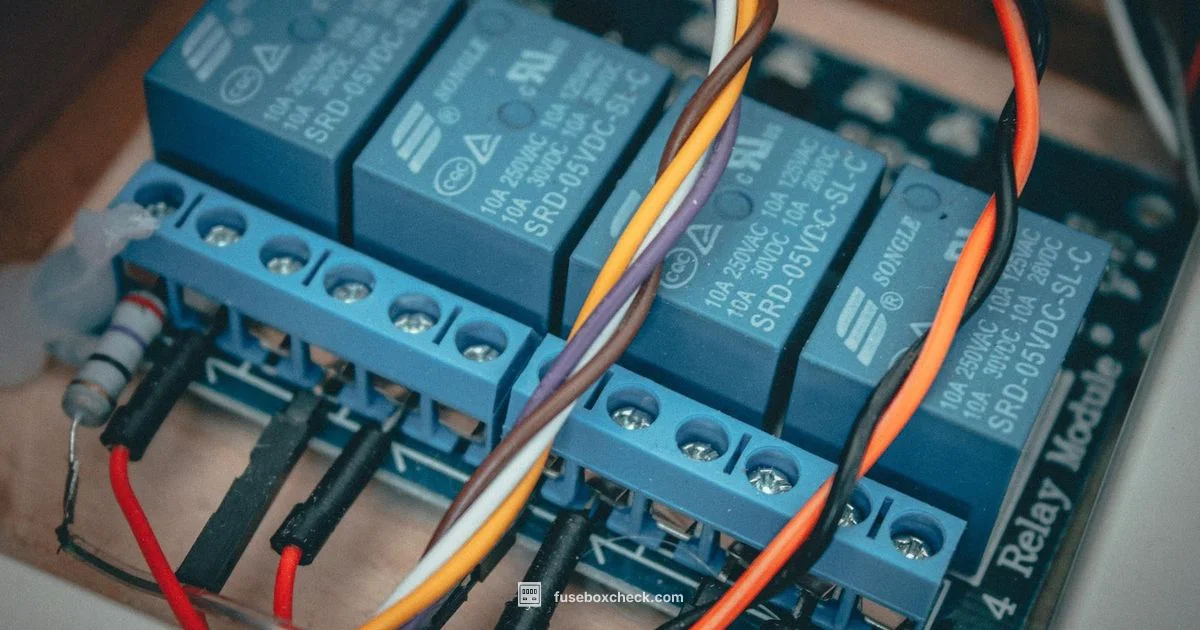

A fuse box relay is an electrically operated switch inside or connected to a fuse box that uses a low-current control signal to switch a higher-current circuit on or off. It enables automated control of loads without running heavy current through the control wiring.
What a fuse box relay does in electrical systems
According to FuseBoxCheck, a fuse box relay is an electrically operated switch that uses a small control signal to turn on or off a larger electrical load. In a typical domestic panel, relays receive a low current control signal from a timer, switch, or smart controller and complete the higher current path to the circuit. This arrangement allows a single control point to manage multiple devices, from automatic lighting sequences to motorized appliances, without running heavy current through control wiring. Relays are designed with isolation between the control circuit and the load circuit, reducing risks and enabling safer automation. When the control signal energizes the coil, the relay’s contacts close and complete the circuit; de-energizing opens the contacts and stops current flow. This simple mechanism provides a robust way to actuate high-current loads with low risk and precise timing. In short, what is a fuse box relay? It is an electrically operated switch inside or connected to a fuse box that uses a low-current control signal to switch a higher-current circuit on or off.
How relays differ from fuses
Relays and fuses perform different protective and control roles in electrical systems. A fuse is a one-time safety device that interrupts current when a fault occurs, while a relay is a switch that can be controlled repeatedly. In many fuse boxes, relays handle automatic switching tasks while fuses provide primary overcurrent protection. This separation helps prevent nuisance trips and extends the life of both components. FuseBoxCheck notes that relying on relays for controlled switching improves reliability and enables modern automation, but a faulty relay can imitate a fuse failure by cutting power without a blown fuse. Regular inspection helps catch wear, corrosion, or coil failure before a fault becomes dangerous.
How to identify a relay in your panel

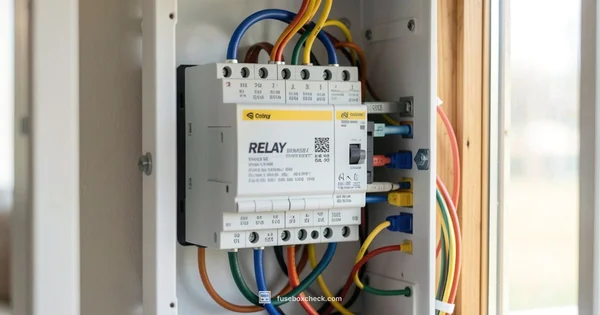

Identifying a fuse box relay involves looking for a compact device with a coil and a set of contacts connected to a circuit. In many panels, relays are labeled as RLY or relay, or by a part number on a modular block. If your panel has a separate control module for automation, the relay may be mounted in a small enclosure or backed by a removable cartridge. Modern panels with smart home integration may place relays on a separate printed circuit board adjacent to the main bus. When inspecting, ensure the main power is off and use proper PPE. Relays may heat slightly during operation, so check for warm housings and signs of corrosion or pitting on contact points.
Common types of relays used in fuse boxes
Domestic and small commercial panels commonly use electro mechanical relays and contactors for higher current tasks. In many cases, these devices are designed for repeated switching with a long service life and audible click when they engage. Some panels employ solid state relays for quiet operation but with limitations on surge handling and heat dissipation. Knowing the type of relay in your panel helps you estimate life expectancy, plan replacements, and work safely. FuseBoxCheck recommends choosing relays with appropriate contact ratings, coil voltages, and protective features such as flyback diodes or snubbers where needed.
Safety considerations and best practices
Working with fuse boxes requires respect for electrical hazards. Before touching any components, turn off the main power and verify with a non-contact tester that sections are de-energized. Wear insulating gloves if available and avoid touching exposed conductors. Keep water away from the panel and use a properly rated insulated screwdriver. If you are unsure about a relay’s location or function, consult a licensed electrician. Relays should be kept clean and free of dust, which can affect contacts and heat dissipation. Do not attempt to bypass safety features or bypass a relay to restore power by hand.
When to replace a faulty relay
A relay should be replaced if it shows signs of wear, such as sticking contacts, buzzing noises, excessive heating, or intermittent operation. Visual indicators like pitting on terminals or corrosion at connection points are also red flags. If power to a circuit remains inconsistent after a fuse is intact, a faulty relay could be the culprit. Replacement requires matching the coil voltage and contact ratings to the panel’s specifications. After replacement, recheck the circuit to ensure the load operates as intended and that no other components are contributing to the fault.
Troubleshooting steps you can perform safely
First, turn off the main power and verify that the panel is de-energized. Check for obvious signs of damage on relays and their wiring, including discoloration, scorching, or loose terminals. Use a multimeter to verify continuity across relay contacts when the coil is energized, but do not measure live circuits. If you detect an open contact when voltage is present or a coil that refuses to energize, the relay is likely faulty and should be replaced. Keep a simple log of symptoms and timing to help a professional diagnose the issue more quickly.
Maintenance and future-proofing
To keep fuse box relays reliable, schedule periodic inspections of the entire panel, especially in older homes. Keep panels clean, dry, and free of clutter that could obscure warning lights or labels. When planning any electrical work, consider upgrading to a modern consumer unit with clearly labeled relays and automated controls. Investing in protective components, like surge suppression and proper enclosure ratings, can extend relay life and prevent nuisance failures. Always consult a qualified electrician for upgrades and ensure work complies with local codes and safety standards.
Your Questions Answered
What is a fuse box relay?
A fuse box relay is an electrically operated switch inside a panel that uses a small control signal to switch a higher current on or off. It enables automated control of circuits without passing heavy current through control wiring.
A fuse box relay is an electrically operated switch in your panel that turns circuits on or off via a small control signal.
Can I replace a fuse box relay myself?
Only if you are trained and the panel is fully deenergized. Replacing a relay usually requires de energizing the main feed, verifying no voltage, and using proper safety procedures. If unsure, hire a licensed electrician.
Only if you are trained and the power is off. If in doubt, hire a professional.
How do I know if a relay is failing?
Look for intermittent power, buzzing or clicking sounds, excessive heat, or circuits that won’t stay energized. A failing relay may mimic a blown fuse.
Look for buzzing, heat, or intermittent circuit power, which can indicate relay failure.
Are home relays the same as car relays?
They operate on the same basic principle but are designed for different voltages, loads, and environments. Do not substitute car relays in a home panel without checking specs.
They work similarly but have different specs and ratings for home panels versus cars.
Do relays require routine maintenance?
Relays generally do not require routine maintenance, but periodic inspection helps catch wear, corrosion, or loose connections early.
Relays usually don’t need routine maintenance, but inspect them periodically.
What safety steps should I take before inspecting a fuse box?
Turn off the main power, verify de-energization with a tester, and wear protective gear. Keep water away and avoid touching live parts.
Power off the main switch and verify it is off before touching anything.
Highlights
- Understand that a fuse box relay is an electrically controlled switch.
- Relays enable safe, repeatable switching of high current loads.
- Identify relays by labeling and panel layout while powered off.
- Prioritize safety and consult a licensed electrician for complex tasks.
- Regular inspection helps prevent unexpected panel faults.
