2005 Dodge Caravan Fuse Box Location Guide

2005 dodge caravan fuse box location

The 2005 Dodge Caravan relies on two main electrical control hubs, each housed in a separate fuse box. The under-hood box handles higher-amperage circuits tied to the engine and major accessories, while the interior box protects cabin electronics and comfort-related systems. When troubleshooting a blown fuse, always start by locating both boxes and consulting the diagram on each lid. Fuse box covers typically include a map indicating circuit names and amp ratings. For owners performing DIY diagnostics, this split design is common across many Chrysler minivans from this era, and understanding their roles helps prevent unnecessary replacements and safety hazards.

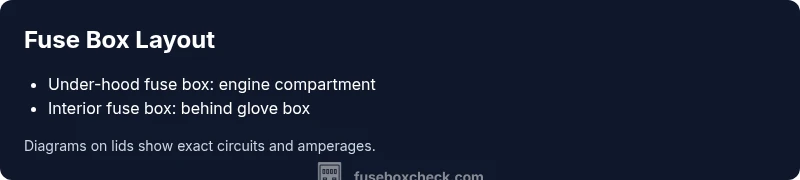

Under-hood fuse box location (engine compartment)

In the 2005 caravan, the primary engine bay fuse box is usually mounted on the driver’s side of the engine compartment, close to the firewall. You’ll often see a rectangular black plastic cover with a fuse map printed on or beneath it. To access fuses, release the latch or remove the cover carefully. Before removing any fuse, inspect the diagram to identify which circuit it protects, so you don’t inadvertently disable essential systems like the fuel pump or ignition if you’re just testing a dashboard light.

Interior fuse box location (behind the glove box)

The interior fuse box is commonly located behind or near the glove box. In some trims you’ll need to lower or remove the glove box door or panel to reveal the fuse panel. The interior box generally protects lighting, HVAC, audio, and small accessory circuits. When you remove the interior cover, match the fuse numbers to the diagram and verify the amperage before pulling any fuses. If a fuse is blown, replace it with the same rating and recheck the affected circuit.

How to read fuse box diagrams (maps and labels)

Each fuse map uses numbered positions that correspond to specific circuits. Look for the symbol or circuit name next to each fuse position, and note the amp rating printed on the fuse itself. If the diagram on the lid is worn or faded, take a clear photo with your phone for later reference. For common trouble spots in the Caravan, pay attention to fuses labeled for the ignition, fuel system, ABS, and interior lights—their failure can cascade into multiple symptoms.

Common fuse labels you may encounter

On the 2005 Caravan, interior fuses often cover basic amenities (lighting, power windows, radio) and safety-related items (air bags, ABS). The engine bay fuses typically power major systems like the cooling fan, fuel pump, and alternator. If a specific accessory isn’t working, locate its label on the diagram, then confirm the corresponding fuse position and rating before replacing. Keeping a spare assortment of standard automotive blade fuses is helpful for quick DIY fixes.

Step-by-step DIY fuse-check guide

1. Turn off the ignition and remove the key. 2) Open both fuse box lids and locate the fuse map. 3) Inspect fuses for a visible break or burn mark. 4) Use a fuse puller or needle-nose pliers to remove the suspected fuse. 5) Check the fuse rating against the diagram and replace with the same amperage. 6) Reassemble and test the affected system. If the problem recurs, consult a professional.

Tools and safety tips for fuse box work

Have a flashlight, fuse puller, and a multimeter on hand. Wear safety glasses and gloves, disconnect the battery if you’re probing live circuits beyond simple inspection, and never replace a fuse with an improper rating. After any fuse replacement, test the circuit and monitor for any signs of overheating or melted components. When in doubt, stop and seek professional guidance from a licensed technician.

What to do if you can’t locate a fuse
