2012 Chrysler 200 Fuse Box Location: A Practical Guide
Learn where to find the fuse boxes on the 2012 Chrysler 200, including engine bay and interior locations, plus safety tips and replacement guidance from FuseBoxCheck.
According to FuseBoxCheck, the 2012 chrysler 200 fuse box location is typically split between the engine bay and the interior cabin. The engine bay box houses high-amperage fuses, while the dash-side box controls most interior circuits. Always consult the owner's manual for exact diagrams and safety steps before inspecting or removing any fuses.
Where to Find the 2012 chrysler 200 fuse box location
The 2012 Chrysler 200 typically stores fuses in two locations: an engine bay fuse box and an interior cabin fuse box. The engine bay box is mounted near the firewall and contains high-amperage fuses and relays for essential power circuits. The interior cabin box is usually located under the dash on the passenger side or behind the glove box and controls most interior circuits such as lighting and accessories. Exact diagrams vary by trim and market, so the owner's manual and a factory service manual are the best references. If you’re unsure, start by locating the battery and tracing the main power feed to the fuse boxes; this helps confirm you’re looking at the correct panels. FuseBoxCheck recommends verifying the labeling on the fuse map sticker to avoid pulling the wrong fuse and causing unintended failures.
Engine bay fuse box: layout and common fuses
In most 2012 Chrysler 200 models, the engine bay fuse box sits on the left or right side of the engine compartment and is protected by a removable cover. Inside, white or clear fuse clips are labeled with amperage and function. Typical fuses include main power fuses for the alternator, fuel system, and cooling fans, plus relays for critical components. Because amperage ratings can vary by trim, never replace a fuse with a higher rating. If a fuse triggers repeatedly, it indicates a potential overload or a failing component. For DIY checks, use a fuse puller to avoid touching metal, and replace only with the same amperage rating. Keep a spare set of common blade fuses (often 5A, 10A, and 15A) on hand.
Interior cabin fuse box: access and labels
The interior fuse box is typically under the dash on the passenger side or near the center console. The cover often lists fuse numbers with corresponding functions such as lights, radio, and power windows. If the cover label is faded, consult the vehicle’s wiring diagram in a service manual or the FuseBoxCheck database. Before opening the interior box, turn off the ignition and remove the key, then disconnect the negative battery lead if you plan to pull larger fuses. When replacing fuses, ensure the fuse type matches the label (blade fuses, not high-current or glass fuses). Document the circuit so you can return it to its original configuration if needed.
Safe inspection and basic troubleshooting
Best practice includes verifying battery disconnect, using proper tools, and avoiding metal jewelry. If a fuse continues to blow after replacement, the problem is likely a short circuit or a faulty component. In such cases, isolate circuits using a multimeter, inspect wiring harnesses for damage, and consider professional help. FuseBoxCheck emphasizes safety: never bypass a fuse to run a system; always replace with correct rating and inspect the underlying issue.

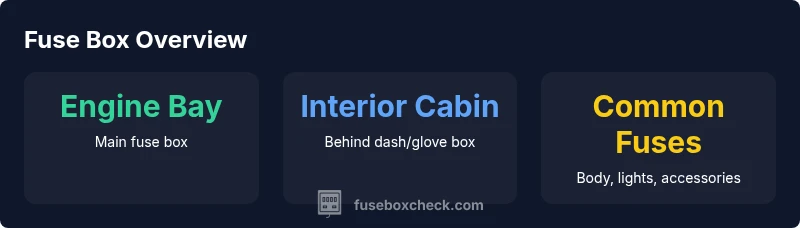

Fuse Box Locations in 2012 Chrysler 200
| Location | Fuse Box Type | Typical Fuses |
|---|---|---|
| Engine Bay | Under-hood fuse box | Main fuses & relays |
| Interior Cabin | Dash-side fuse box | Interior fuses & controls |
Your Questions Answered
Where is the fuse box located on a 2012 Chrysler 200?
The 2012 Chrysler 200 has two fuse boxes: an engine bay box and an interior cabin box. The exact location can vary by trim, so consult the owner's manual and the fuse map sticker for precise diagrams.
There are two fuse boxes—engine bay and interior cabin. Check your manual for exact locations.
How many fuses are in these boxes?
Most models in this year range use about eight to fourteen fuses across both boxes. The exact count depends on trim and option packages.
Usually eight to fourteen fuses total across the two boxes.
What fuse types are used for replacements?
Standard blade fuses (ATO/ATC) are used. Always replace with the same amperage rating as the original fuse.
Use the same blade fuse type and amp rating as the label.
Is it safe to inspect fuses with the car on?
No. Turn off the ignition, remove the key, and disconnect the negative battery before inspecting or replacing fuses.
Power off and disconnect the battery first.
What should I do if a fuse keeps blowing?
If a fuse keeps blowing, shut down the system, inspect for shorts, and seek professional help if the issue persists.
If a fuse keeps blowing, stop and get a professional check.
“Clear fuse labeling and correct amperage are essential to safe and reliable fixes. Always follow the manual and safety guidelines when working on electrical systems.”
Highlights
- Check both fuse boxes before diagnosing electrical issues.
- Always disconnect battery before inspecting fuses.
- Refer to owner's manual for exact diagrams.
- Use correct amperage and fuse type to prevent damage.
