By following this guide, you will locate, inspect, and safely replace a blown fuse in a Kawasaki Mule fuse box. Start by powering off the vehicle and removing the key, then locate the fuse box (often under the dash or behind a panel), identify the blown fuse, and replace it with the correct amperage. Always re-test the circuit.
Kawasaki Mule fuse box basics
The fuse box is your Mule's first line of defense against electrical faults. Understanding its role helps you diagnose issues quickly and safely. The fuse box protects critical circuits—from headlights to the ignition—by breaking the circuit when a fault occurs. For Kawasaki Mule owners, knowing how to identify the fuse box and read its diagram minimizes downtime and prevents accidental damage. In this guide, we use plain terms and practical steps you can perform in a home or shop setting. The FuseBoxCheck team emphasizes that working with electrical systems requires care and respect for safety, especially with off-road equipment exposed to vibration and moisture. By developing a simple routine for inspection, you can prevent common fuse-related failures and keep your Mule running reliably. Remember that the exact layout can vary by model year, so consult the owner's manual for a fuse map and numbering scheme. Fuse box kawasaki mule is the core concept you’ll master here, with concrete steps to locate, test, and replace fuses effectively.
Locating the fuse box on Kawasaki Mule models
Locating the fuse box on a Kawasaki Mule can vary by model year and trim. Common placements include under the dashboard, behind a side panel, or under the seat base. Start by checking the dash area and passenger side panels for a rectangular black box with a removable cover. The lid often includes a diagram or listing of fuse positions and current ratings. If you cannot find it by sight, consult the owner’s manual or a service supplement for your specific Mule model. Fuse box kawasaki mule diagrams are typically color-coded, which helps you quickly identify which circuit is protected by each fuse. For DIY diagnostics, familiarity with where these fuses live reduces downtime and helps you add a small fuse kit to your tool stash for emergencies.
Common fuse types and why amperage matters
Fuses come in several types, including blade fuses and glass fuses, each with a specific rating. Using the correct amperage is essential to protect wiring and components from overloading. Do not substitute a higher-rated fuse in a low-amperage circuit, as that can mask faults or cause wiring damage. Conversely, using a fuse with too low an rating can cause nuisance blowing, interrupting important functions. Always refer to the fuse map in your Mule’s manual to confirm the right type and rating for each circuit, and never improvise a different fuse as a temporary fix. Fuse box kawasaki mule guidance emphasizes sticking to manufacturer specifications to preserve safety and reliability.
Safety first: powering down, PPE, and diagnostic mindset
Electrical work on ATVs and UTVs like the Kawasaki Mule requires rigorous safety precautions. Always power down the vehicle, remove the key, and disconnect the negative battery terminal before touching any wiring or fuses. Wear eye protection and insulated gloves, and work on a dry, non-conductive surface. Keep metal tools away from exposed terminals to avoid short circuits. Maintain a calm diagnostic mindset: look for obvious signs of damage such as melted plastic, corrosion, or loose connections. Fuse box kawasaki mule procedures prioritize de-energizing steps and safe testing practices to prevent shocks or accidental re-energization.
Tools and prep for fuse work
Before you begin, gather the essential tools and materials. A fuse puller or small needle-nose pliers helps remove fuses without bending metal prongs. Have a supply of replacement fuses that match your model’s original ratings. A multimeter or continuity tester confirms fuse integrity and circuit continuity. Keep a flashlight for dim environments, and have the owner’s manual handy for model-specific fuse maps. A small tray for screws and a marker can speed up reassembly. With these tools ready, you’ll approach fuse work with clarity and safety.
Step-by-step diagnostic workflow (high-level overview)
This section provides a high-level workflow you can follow to diagnose and address fuse-related issues without skipping important checks. Start with a visual fuse inspection, then test continuity, verify related circuits, and finally replace the fuse if needed. Always re-test the affected system after replacement. If the fuse continues to blow, there may be an underlying short or accessory fault that requires deeper diagnosis. Fuse box kawasaki mule troubleshooting emphasizes a systematic approach to isolate the fault and prevent repeated failures.
Step-by-step inspection and fuse replacement (practical walkthrough)
The following workflow complements the step-by-step block and gives a practical path to refreshing a fuse. First, disable power and remove the panel cover for access. Then identify the specific fuse tied to the malfunctioning component using the fuse map. Remove the suspected fuse with the fuse puller, inspect for a broken element, and test with a multimeter if available. Install a replacement fuse of the same rating, reseal the panel, and recheck the system. If the fuse blows again, the issue is likely a short or overloaded circuit that needs professional attention. Fuse box kawasaki mule steps prioritize safety, accuracy, and verification of results.
Troubleshooting related circuits and common symptoms
A blown fuse can signal multiple underlying issues, from a simple accessory fault to a larger wiring problem. Common symptoms include dim lights, non-functional accessories, or intermittent electrical faults. If multiple fuses blow or a fuse repeatedly fails, inspect related components such as switches, relays, wiring harnesses, and grounds. Check for damaged insulation, pinched wires, or water intrusion after off-road use. Document the symptoms and map them to circuits on the fuse diagram, which helps you decide whether the fault is localized or system-wide. Fuse box kawasaki mule troubleshooting often reveals the root cause and prevents future blowouts.
Post-repair checks and preventative maintenance
After replacing a fuse, test the affected system to confirm proper operation. Restore power, start the Mule, and engage the circuit to verify correct function. Inspect for heat or buzzing around the fuse area—unusual warmth may indicate a hidden short. To prevent future failures, keep a small fuse kit with the same ratings, periodically inspect fuses for signs of wear, and clean any corrosion from fuse contacts. Regular maintenance reduces the risk of sudden electrical failures and extends the life of your Mule’s electrical system.
When to seek professional help and final reminders
If you’ve replaced a fuse and the circuit fails again, or you discover signs of wiring damage, moisture exposure, or melted plastics, stop and seek professional assistance. Electrical work on off-road vehicles can be hazardous, and a recurring fuse problem may indicate deeper faults that require diagnosis with specialized tools. The FuseBoxCheck team recommends documenting symptoms and consulting the owner’s manual or a qualified technician for a thorough assessment. Fuse box kawasaki mule practices prioritize safety and proper diagnosis.
Tools & Materials
- Fuse puller or needle-nose pliers(Essential for safely removing fuses without bending prongs)
- Replacement fuses(Use fuses with the same type and rating as the original)
- Multimeter or continuity tester(For verifying fuse integrity and circuit continuity)
- Owner’s manual / fuse map(Model-specific diagrams identify fuse positions)
- Screwdrivers (flathead and Phillips)(To remove access panels safely)
- Insulated gloves(Adds protection when handling exposed conductors)
- Flashlight(Useful in dim or tight spaces)
- Small tray or magnetic dish(Keep fasteners organized during disassembly)

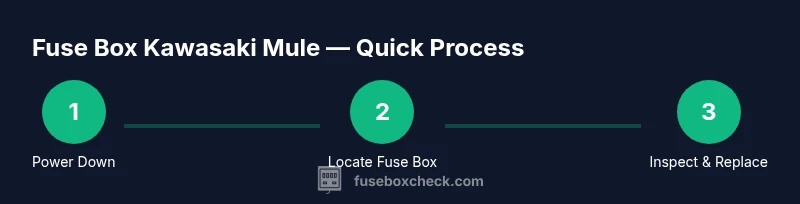

Steps
Estimated time: 30-40 minutes
- 1
Power down and prep
Turn off the Mule, remove the key, and disconnect the negative battery terminal to de-energize the electrical system. This reduces the risk of shocks or shorts while you work. Have a clean work area and gather your tools before proceeding.
Tip: Wait at least 30 seconds after disconnecting power to ensure capacitors discharged. - 2
Locate the fuse box
Refer to the owner’s manual fuse map to locate the fuse box. Common locations include under the dash, behind side panels, or beneath the seat base. Identify the box cover and remove it using the appropriate screwdriver.
Tip: Use a headlamp or flashlight to clearly read the diagram on the fuse box cover. - 3
Inspect the fuse visually
Remove the suspect fuse with the fuse puller and inspect the element for a visible break or darkened appearance. If uncertain, proceed to testing with a multimeter for continuity.
Tip: Keep track of which fuse you removed; reinsert the panel nearby to avoid mix-ups. - 4
Test the fuse with a multimeter
Set the multimeter to continuity or resistance mode and touch the probes to the fuse terminals. A reading of continuity indicates a good fuse; no continuity means a blown fuse requiring replacement.
Tip: If you don’t have a multimeter, visually inspect; a blown fuse almost always shows a broken filament. - 5
Replace with the correct fuse
Insert a replacement fuse that matches the original type and rating from the manual. Do not exceed the rated amperage, and ensure the fuse is firmly seated in its slot.
Tip: Use a fuse puller to avoid bending prongs; reseat the fuse fully before proceeding. - 6
Reassemble the panel and re-test
Reattach the fuse box cover, reconnect the negative battery terminal, and restore power. Test the malfunctioning circuit by operating the affected controls to confirm proper function.
Tip: Observe for any heat or unusual smells during the first test run. - 7
Check related circuits
If the circuit still fails, inspect related wiring, switches, and relays for damage or shorts. Look for corroded connectors or moisture infiltration, especially after off-road use.
Tip: Take clear notes or photos of any damage to assist future troubleshooting. - 8
Document and maintain
Record the date, fuse type, and outcome of the test. Regularly inspect fuse contacts and keep spare fuses on hand as part of maintenance.
Tip: Create a quick maintenance checklist to simplify future DIY checks.
Your Questions Answered
Where is the fuse box located on a Kawasaki Mule?
Location varies by model year, but it’s typically under the dash, behind a side panel, or beneath the seat. Always check the owner's manual fuse map for your specific Mule. Fuse box kawasaki mule diagrams help you confirm the exact position.
The fuse box is usually under the dash or behind a side panel; check your model's manual for the exact location and fuse map.
Can I replace a fuse with a higher amperage?
No. Replacing with a higher amperage can allow excessive current through wires and cause overheating or fires. Always match the original fuse rating as listed in the fuse map.
Do not use a higher amperage fuse; match the original rating to avoid overheating or fire risk.
What if the fuse keeps blowing after replacement?
A recurring blown fuse suggests a short or a failing component in the circuit. Stop and inspect related wiring, switches, and loads for damage or moisture. If necessary, consult a professional.
If a fuse blows again after replacement, inspect the wiring and components for damage or moisture and seek professional help if needed.
Should I disconnect the battery before replacing a fuse?
Yes. Disconnect the negative terminal to reduce shock risk and prevent accidental shorts while you work on the fuse box.
Yes—disconnect the negative battery terminal before starting.
How do I test a fuse with a multimeter?
Set the multimeter to continuity or ohms, touch the probes to the fuse terminals, and look for a reading indicating continuity. If there’s no continuity, the fuse is blown and needs replacement.
Use a multimeter to check continuity across the fuse; no continuity means it’s blown.
Is it safe to drive with a blown fuse?
No. A blown fuse can disable critical systems. Don’t operate the Mule until the fuse is inspected and replaced if needed.
Don’t drive with a blown fuse; address the issue before operating the Mule.
Watch Video
Highlights
- Power down before touching any fuse components.
- Always replace fuses with the original rated type and amperage.
- Test circuits after replacement to confirm proper operation.
- Keep a dedicated fuse kit and label fuse maps for quick future fixes.
- If symptoms persist, consult professional support and review wiring for shorts.
