Fuse Box Location Guide for 2005 Ford F-150

Where to Find the Fuse Boxes on the 2005 Ford F-150

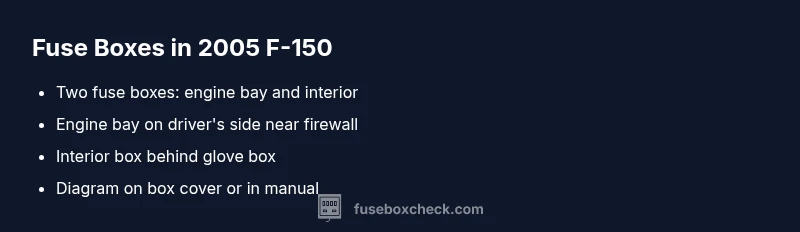

In the 2005 Ford F-150, you’ll typically find two fuse boxes that guard essential electrical circuits. The exterior engine-compartment box is located on the driver’s side near the firewall. Inside the cabin, the fuse box is usually behind the glove box or under the dash on the passenger side. Each box has a cover with a diagram showing fuse numbers, amperage, and the circuits they protect. Always confirm locations with the vehicle’s manual or the fuse-box diagram on the cover; variations can occur by trim level or options. Before opening a box, switch off the ignition and disconnect the negative battery cable if you’re planning to replace fuses, to minimize the risk of sparks or shorts. When you pull a fuse, note its color and amperage; this helps you replace it with the correct rating later. If you’ve recently installed aftermarket devices, start by checking the relevant fuse first.

Key tip: Keep a small fuse puller in the glove box for quick checks, and label spare fuses by amperage to reduce downtime during repairs.

Exterior Engine-Compartment Fuse Box: Organization and Key Circuits

The engine-compartment fuse box in the Ford F-150 is designed to separate high-power circuits from cabin fuses. The cover usually includes a map that labels channels such as lighting, charging, ignition, and ECU-related fuses. Expect groups like accessories (front lights, horn, and auxiliary power) and major power feeds (battery and alternator). Because the 2005 model year predates some “smart” features, you’ll still see traditional blade fuses and relays rather than the more modern circuit-breakers in newer trucks. When inspecting, use a fuse puller to test for a blown fuse by pulling it and inspecting the metal strip inside. If a fuse is blown, replace it with a fuse of identical amperage rating. Do not substitute a higher rating as this can lead to wiring insulation damage or fire risk. After replacement, reset any affected components and retest the circuit.

Interior Cabin Fuse Box: Location and Common Circuits

The interior fuse box is typically located in the cabin, often behind the glove box or under the dash on the passenger side. The interior map covers circuits like interior lights, radio, HVAC controls, and convenience outlets. In older Ford F-150s, some fuses might serve multiple subsystems, so label-check is important. When you open the interior box, avoid pinching wiring or forcing the cover; ensure clips are seated properly after reassembly. If you’re troubleshooting a malfunctioning accessory, start by locating the corresponding fuse on the interior map, remove it, inspect for a melted strip, and replace it with an equivalent rating. If a fuse repeatedly blows after a replacement, there may be a short or an accessory problem that requires a professional diagnostic. Document the fuse mapping for future maintenance to speed up troubleshooting.

Reading Fuses, Relays, and Labels: A Practical Guide

Fuse labels indicate circuit coverage and amperage. The labeling on the 2005 F-150 fuse boxes uses color and number codes; a typical blade fuse ranges from 1 to 30 amps. Relays control higher-current devices like the starter or cooling fans; when a relay fails, you may notice delayed startup or intermittent operation. Always confirm the exact amperage on the fuse label and match it during replacement. If a fuse looks intact but the circuit is dead, there might be a bad connection, a blown relay, or a separate power issue. Use a multimeter or a dedicated fuse tester to verify continuity. Keep a small spare fuse assortment in the glove box or center console to make on-the-spot replacements easier. Document the fuse mapping so future owners understand the system layout.

Quick Troubleshooting Scenarios for Common Circuits

Scenario 1: Headlights go out. Check the engine compartment fuses for headlight circuit and the interior harness for related relays. Scenario 2: Radio or dashboard lights fail. Check interior fuse box; verify the radio fuse and a potential ground issue. Scenario 3: Power outlets dead. Inspect the fuse linked to the aux power and the instrument cluster feed. Always replace with the same amperage and inspect wiring around the affected circuit for signs of corrosion or loose connections. If you’re uncertain, step back and consult the owner's manual or a professional.

Maintenance and Safety Tips for Fuse Boxes

• Regularly inspect fuse covers for cracks, ensure the diagram is legible.
• Use the right tools: fuse puller, insulated pliers, and a multimeter.
• Keep spare fuses organized, labeled, and sorted by amperage.
• Avoid taping or jury-rigging wiring; replace damaged wires rather than adding fuses.
• If you’re wiring aftermarket devices, consider a dedicated relay and fused power supply rather than overloading the stock circuits.
• Always disconnect the battery before heavy work on the fuse box.

Pro tip: Periodic checks after battery or alternator work help catch issues early.

When to Seek Professional Help

If you notice repeated fuse blows, signs of melted circuitry, burning smells, or diagnostic trouble codes related to electrical subsystems, professional service is advised. A certified technician can perform insulation resistance tests, trace wiring harness faults, and assess relay integrity without risking personal injury. For most routine checks, following the fuse-map in the manual and keeping a labeled spare-fuse kit is sufficient for DIY troubleshooting.
