In most XC90 models, the primary fuse box is located in the engine bay under the hood, with a second interior fuse panel behind the glove box or under the driver’s dash. The xc90 fuse box location can vary by year and trim, so always consult the owner's manual for exact diagrams and amperage ratings before attempting any DIY fuse work. For quick troubleshooting, start with the engine bay panel, then proceed to the interior panel to diagnose common cabin electrical issues.
XC90 Fuse Box Location Overview
According to FuseBoxCheck, the xc90 fuse box location varies by year and trim, but the general two-panel layout is common across many Volvo XC90 generations. The XC90 fuse box location isn't a single, universal spot; instead, owners will typically find a primary fuse box under the hood in the engine bay, plus an interior panel for cabin circuits. In practice, using the correct location and amperage rating is crucial when diagnosing issues like a blown fuse or a malfunctioning accessory. The keyword xc90 fuse box location appears frequently in owner forums and service manuals, underscoring the importance of knowing both primary access points. For DIY repairs, map the two main areas first: the engine bay fuse box and the interior cabin panel, then move outward to any model-year-specific panels. Remember that the exact fuses and amperage values are listed on the cover or in the owner's manual.
Under-Hood Fuse Box: Location and Access
The under-hood fuse box in the XC90 is typically mounted near the engine block or on the shock tower area, protected by a labeled cover that lists fuse numbers and amperage ratings. Access usually requires lifting the hood and removing the cover. Before you touch anything, ensure the vehicle is off and the negative battery terminal is disconnected to avoid sparks or short circuits. The xc90 fuse box location under the hood often houses fuses for engine controls, charging circuits, and main power relays, so identifying the correct fuse is essential to avoid disabling critical systems. If you are unsure, consult the owner's manual diagrams or a service manual for the exact fuse map for your model year.
Interior Fuse Box: Behind the Glove Box
The cabin fuse box in the XC90 is frequently located behind the glove box or under the driver's side dash. Accessing this panel may require removing the glove box damper or a panel cover. The interior fuse box typically contains fuses for lighting, infotainment, HVAC controls, and safety systems like airbags; however, exact fuse assignments can differ between years and trims. To reach the interior panel, carefully release the glove box stops, hinge it down, and locate the fuse box cover. The diagram on the cover will help you identify which fuse controls which component.
Additional Access Points and Variants by Year
Some XC90 variants include additional fuse points in the cargo area, under-seat compartments, or near the rear hatch. These locations are year- and trim-dependent, so verify with the manual or service documentation. If you own an older model, there may be fewer access points, whereas newer variants might add a secondary panel for added electronics. Create a simple map in your garage that marks each known fuse panel location for your specific year and trim, and keep spare fuses of the correct amperage handy.
How to Identify Fuses and Read the Diagram
Fuse diagrams use a combination of numbers and icons to describe which circuit each fuse protects. Start by turning the ignition off and ensuring the battery is disconnected. Then, use the diagram on the fuse box cover to locate the correct fuse by number or color. Replacing a fuse with the same amperage rating is essential for safety. If a fuse continuously blows after replacement, there is likely an underlying issue that should be diagnosed by a professional. Always check for signs of corrosion or a blown fuse with a visible gap in the metal element.
Safe Testing and Replacing Fuses: Step-by-Step Guide
When you test a fuse, use a fuse puller or insulated pliers to remove it, inspect the metal element for a break, and replace with an identical amperage fuse. Do not use higher-rated fuses to bypass the problem, as this can cause wiring damage or fires. After replacement, rejoin the fuse box cover, reconnect the battery, and test the system. If the component still fails, inspect related wiring or consult a qualified technician.
Common Pitfalls and Quick Troubleshooting
Avoid mixing up fuse locations by always double-checking the diagram. Take care not to force fuse pulls, and avoid touching metallic surfaces when the battery is connected. If you smell burning or notice melted plastic, stop immediately and disconnect power. Keep a small fuse kit with various amperages and a multimeter to test continuity when necessary. The xc90 fuse box location and its related circuits should be treated with caution to prevent electrical hazards.

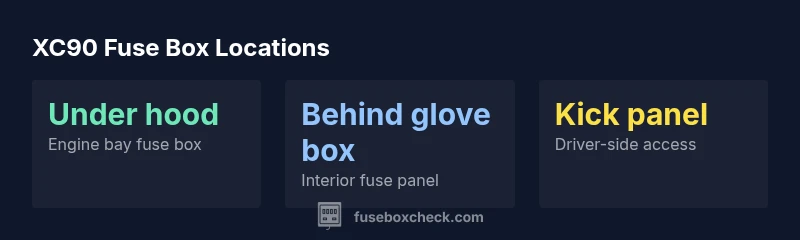

XC90 fuse boxes: locations and purpose
| Location | Access Point | Typical Fuses Covered | Notes |
|---|---|---|---|
| Under hood | Engine bay fuse box cover | Engine and powertrain circuits | Check for corrosion; ensure cover is seated |
| Interior panel | Behind glove box or dash panel | Lighting, climate, infotainment | Careful with glove box removal |
| Driver-side panel | Kick panel / footwell | Accessory circuits | Refer to year-specific diagram |
Your Questions Answered
Where is the XC90 fuse box located?
In most XC90 models, there are two fuse boxes: an under-hood panel and an interior panel behind the glove box or under the dash. Exact locations vary by year and trim; consult the owner's manual for the precise diagram.
Typically there are two fuse boxes: under the hood and behind the glove box or dash. Check your owner's manual for the exact layout.
Are there multiple fuse boxes in the XC90?
Yes. The XC90 generally has at least two fuse boxes: an under-hood panel and an interior panel. Some model years add a third panel in a different location.
Yes, usually two fuse boxes, sometimes a third panel depending on the year.
How do I access the interior fuse box behind the glove box?
Open the glove box, remove any stops or padding, and locate the fuse box cover. Remove the cover to view the fuse diagram and replace fuses with the same amperage.
Open the glove box and remove the cover to reach the fuse box and diagram.
What tools do I need to inspect fuses safely?
A fuse puller or needle-nose pliers, a flashlight, and a replacement fuse of the same amperage. Do not bypass fuses or use higher amperage without testing.
Keep a fuse puller handy and replace fuses with the same amperage.
Can I drive with a blown fuse?
Driving with a blown fuse is not advised; it can cause auxiliary systems to fail. Replace the fuse promptly after diagnosing the issue and ensure circuits are safe.
Not recommended to drive with a blown fuse; replace it and verify the system first.
What safety steps should I take before replacing a fuse?
Turn off the ignition, disconnect the negative battery terminal, and wear eye protection. Use the correct amperage fuse to avoid hazards.
Turn off power, disconnect the battery, and use the right fuse amperage.
“Knowing fuse box locations is essential for safe, effective DIY electrical work on vehicles like the XC90. Start with the manual and verify amperage before replacing any fuse.”
Highlights
- Locate both fuse boxes first: hood and cabin
- Consult the owner's manual for exact diagrams
- Use a fuse puller to inspect fuses safely
- Disconnect the battery before working on electricals
- Label fuses when removing them
