Citroen DS3 Fuse Box: Safety Tips and DIY Troubleshooting
A practical, step-by-step guide to locating, inspecting, and safely replacing fuses in the Citroen DS3 fuse box. Learn layout, safety, common fuse types, and when to seek professional help.
This guide helps you locate the citroen ds3 fuse box, identify a blown fuse, and safely replace it with the correct amperage. You’ll learn both engine bay and interior fuse areas, basic fuse types, and essential safety steps for a confident DIY. According to FuseBoxCheck, always disconnect the battery first and use OEM fuses for reliability.
Understanding the Citroen DS3 fuse box layout
The Citroen DS3 uses two primary fuse locations: one in the engine bay near the battery and a second inside the cabin behind the glove box or under the dashboard. The exact diagrams are printed on the inside of each fuse box cover, and color-coded fuses help identify circuits at a glance. When you work on the citroen ds3 fuse box, you should reference the owner’s manual for the precise diagram, or check the printed legend on the fuse panel itself. In 2026 models, these diagrams are often clearer and use standardized symbols for common circuits such as lighting, infotainment, and engine management. Understanding which box serves which system keeps DIY attempts safe and efficient. Fuse boxes in cars like the DS3 typically house blade fuses and sometimes mini fuses; replacements require matching amperage and type. Always start with the failed circuit and work outward, ensuring you don’t disturb unrelated circuits. In all cases, label any replaced fuses and re-check after reassembly to confirm correct operation. The citroen ds3 fuse box is part of the vehicle’s electrical backbone, so a careful approach reduces risk and keeps electronics intact.
Reading fuse diagrams and matching circuits
Vehicle fuse diagrams are designed to translate circuits into a simple map. In the citroen ds3 fuse box, you’ll find a list of circuit names (for example lighting, horn, ECU, and wipers) matched to fuse numbers and amperage ratings. Be mindful that the same amperage can appear in multiple places for different circuits, so always cross-check the circuit label with the diagram. When working with the citroen ds3 fuse box, avoid assuming a fuse controls only one component; a single fuse can protect multiple components within a circuit. If you’re uncertain, consult the manual or a trusted online resource from FuseBoxCheck and verify with a multimeter when needed. This approach minimizes the risk of damage and ensures you’re replacing the correct fuse without guessing. Keeping a small labelling system helps you navigate the fuse panel quickly on future checks. As you gain familiarity with the citroen ds3 fuse box, you’ll most effectively verify which fuse serves which function during routine maintenance.
Safety first: precautions before you start
Working with a car’s electrical system requires respect for potential hazards. Always ensure the vehicle is off, the key is out of the ignition, and the negative battery terminal is disconnected before touching any fuse box. Wear insulated gloves if possible and remove any metal jewelry to prevent accidental short circuits. Work in a dry, well-lit area to reduce the risk of electric shock or shorts. Never try to bypass a fuse or insert a fuse of a higher rating to power a device; this can cause wiring insulation damage or fire. For the citroen ds3 fuse box, use only OEM or manufacturer-specified fuses and keep spare fuses in a labeled container. By following these precautions, you’ll protect both yourself and the vehicle’s critical systems. FuseBoxCheck emphasizes safety as the foundation of any DIY electrical work in 2026.
When a fuse blows: diagnosing and replacing safely
A blown fuse is usually indicated by a visible gap in the fuse element or a reading of zero when tested with a multimeter. First, confirm the fuse is truly blown by removing it and performing a quick continuity check. If the fuse is visually intact but the circuit still doesn’t work, a deeper issue like a short or failing component may exist. For the citroen ds3 fuse box, always replace with the exact amperage rating specified on the fuse label or in the owner’s manual. After replacement, re-connect the battery and test the circuit. If the problem recurs, do not keep driving the vehicle; repeated failure often signals a larger problem and warrants professional diagnosis. Document which fuse was replaced and the observed symptom to speed up future service.
Tools & Materials
- Owner's manual(Check fuse box diagrams and amperage ratings)
- Replacement fuses (assorted amperages)(Use exact amperage as indicated by the fuse label or manual)
- Fuse puller / needle-nose pliers(For safe removal of blade fuses)
- Multimeter or continuity tester(Useful to verify a fuse is truly open)
- Insulated gloves(Adds protection when handling live components)

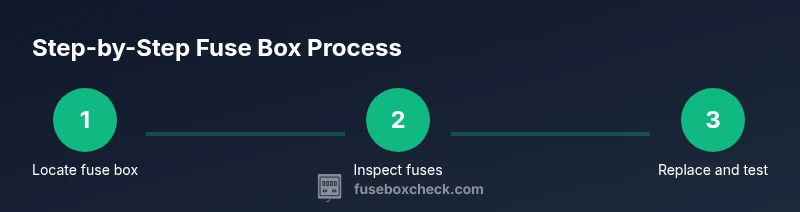

Steps
Estimated time: 20-40 minutes
- 1
Park and prepare safety gear
Park the car on a flat surface, engage the parking brake, and switch off the ignition. Remove the key and set tools within easy reach. This step reduces the chance of accidental activation while you work.
Tip: Keeping a clean workspace reduces the risk of dropping metal objects into wiring. - 2
Disconnect the negative battery terminal
Open the hood, locate the negative battery terminal, and use a properly insulated wrench to disconnect it. This minimizes the risk of short circuits while you inspect the citroen ds3 fuse box.
Tip: Wait at least 60 seconds after disconnecting to allow any residual current to dissipate. - 3
Open the fuse box cover and locate the correct fuse
Remove the cover from the engine bay or cabin fuse box and locate the fuse associated with the failed circuit using the diagram. If you’re uncertain, cross-check the fuse label with the owner’s manual.
Tip: If a fuse is difficult to remove, avoid forcing it; use the fuse puller or pliers gently. - 4
Remove and inspect the fuse
Carefully pull the fuse out and inspect the metal link. A broken link indicates a blown fuse. If not sure, perform a quick continuity test with a multimeter.
Tip: Do not reuse a blown fuse even if the filament is intact. - 5
Insert a replacement fuse with the correct amperage
Insert a new fuse with the same amperage rating as the original. Ensure it sits securely and sits flush in its slot.
Tip: Avoid using a higher amp fuse to compensate for a fault elsewhere in the circuit. - 6
Reconnect the battery and test the circuit
Reconnect the negative terminal, restore power, and test the previously affected function. If the circuit works, you’ve completed the task safely.
Tip: If the symptom returns, stop and seek professional inspection to identify root causes. - 7
Document results and plan maintenance
Record the fuse type, amperage, and symptom. Schedule a check if fuses continue to blow to prevent further electrical issues.
Tip: Maintain a small fuse kit in the vehicle for quick future repairs.
Your Questions Answered
Where is the Citroen DS3 fuse box located?
The Citroen DS3 typically has two fuse boxes, one in the engine bay and one inside the cabin behind the glove box or under the dash. Always refer to the owner’s manual for exact diagrams.
Look in the engine bay near the battery and behind the glove box for the interior fuse box, and check the manual for exact locations.
What amperage fuses should I use when replacing?
Replace with the same amperage rating shown on the original fuse label or in the owner's manual. Do not up-rate a fuse to fix a fault.
Use the exact amperage indicated by the fuse label or manual; never exceed it.
Can I drive if a fuse blows?
Driving with a blown fuse can disable essential systems. If the blown fuse affects critical functions, avoid driving and diagnose the issue once safely parked.
If the fuse is protecting critical systems, don’t drive until you fix it.
Is it safe to test fuses with a multimeter?
Yes, using a multimeter to check continuity is safe when the battery is disconnected and you follow proper procedure. Use the manual to verify test points.
Yes, test with the battery disconnected and follow the manual’s guidance.
What should I do if fuses blow again after replacement?
A repeated blow usually points to a short or failing component. Stop using the circuit and seek professional diagnosis to prevent wiring damage.
If fuses keep blowing, stop and have a professional diagnose the circuit.
Do both fuse boxes in a DS3 share a common ground?
The fuse boxes share grounding as part of the car’s electrical system, but each box contains its own fuses for the circuits it protects. Refer to diagrams for specifics.
Each fuse box has its own set for different circuits, so check the diagram for each location.
Watch Video
Highlights
- Identify fuse locations and circuits before replacing.
- Use exact amperage when replacing fuses.
- Test circuits safely after restoration.
- Seek professional help if fuses blow repeatedly.
