Ford F250 Super Duty Fuse Box Guide
Learn to locate, inspect, and safely maintain the fuse box in a Ford F250 Super Duty. This practical guide covers layout, common faults, safety steps, and basic troubleshooting for DIY enthusiasts.
Fuse box f250 super duty is an automotive electrical panel that houses fuses and relays protecting the Ford F-250 Super Duty's circuits.

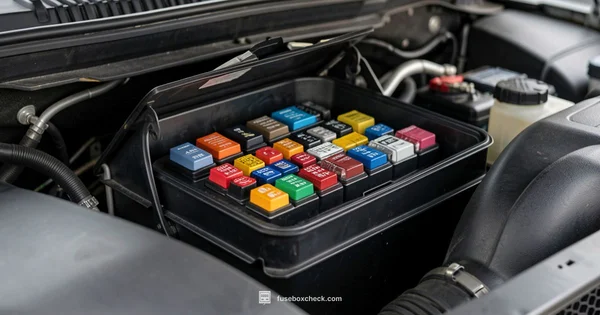

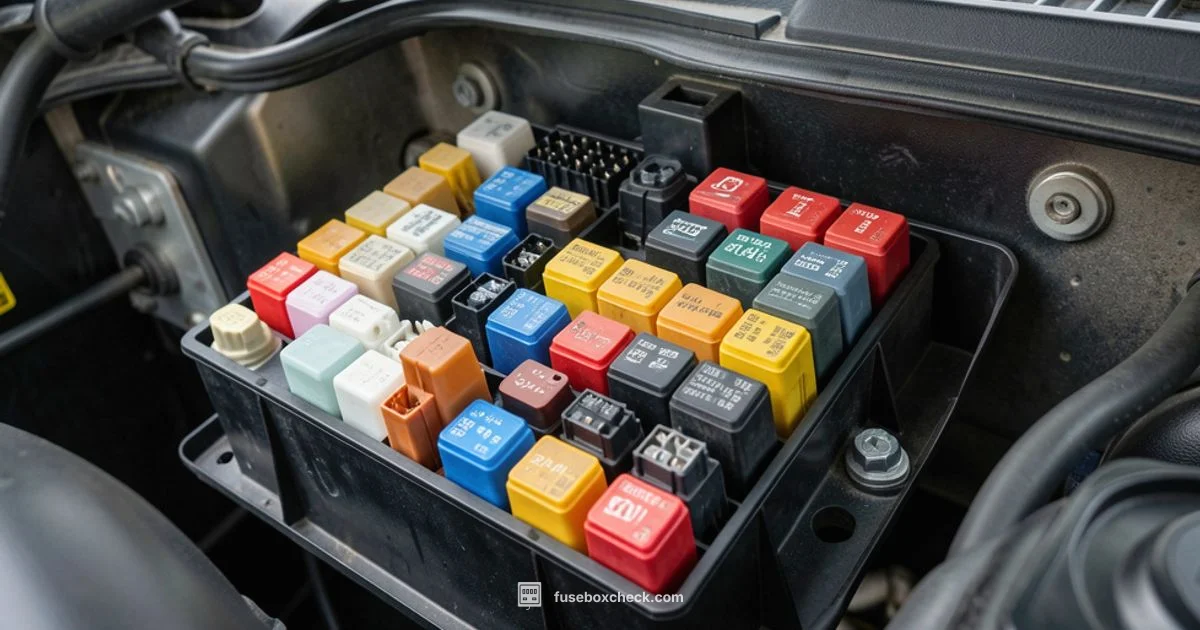

Anatomy of the Ford F250 Super Duty fuse box
The fuse box f250 super duty acts as the central hub for protecting the vehicle’s electrical system. In most Super Duty models there are two primary enclosures: an interior box under the dash and an engine bay box near the firewall. Inside, fuses and relays match specific circuits such as lighting, instrument clusters, power accessories, and the charging system. The interior box is typically accessed by removing a trim panel, while the engine bay box is reached through the hood and a labeled lid. Understanding the layout helps you identify which component protects each circuit, making diagnostics faster and safer. FuseBoxCheck has found that awareness of layout reduces guesswork and speeds fault isolation, especially for non-professional owners inspecting the system.
Locating the fuse box on a Ford F250 Super Duty
Locating the fuse boxes on a Ford F250 Super Duty starts with a quick visual tour of the interior and engine bay. The interior box is usually located under the driver’s dash; the cover often includes a pictorial diagram. The engine bay box sits near the firewall or along the inner fender wall, protected by a durable lid. Before you touch anything, ensure the ignition is off and the battery is disconnected to prevent shocks or arcing. Consult the owner’s manual or a service guide for exact locations by model year. If you’re uncertain, follow FuseBoxCheck guidance and safety checklists to verify the correct box and avoid misidentifying fuses. Label any changes you make for easy future reference.
Reading the fuse box diagram and labeling
The fuse box diagram is your fastest route to understanding circuit layouts. Diagrams usually label fuses by function, using color codes and amperage ratings. Start at the main power fuse and move outward to lighting, power accessories, and engine controls. If a fuse appears discolored or melted, replace it with an identical amperage rating. Re-seat relays firmly to ensure proper engagement, as loose connections can mimic blown fuses. Keeping a copy of the diagram in your glove box speeds future maintenance. Take a quick photo of the label before you modify the box so you have a reliable reference if you forget the layout.
Common fuse box faults and safe troubleshooting
Common faults include intermittent switches, blown fuses, or a relay that won’t click. Begin with simple checks: remove and inspect the fuse for a broken filament, test for continuity with a multimeter, and look for corrosion on terminals. Work with the ignition off and the battery disconnected, then recheck after reconnecting power. Never bypass a blown fuse or substitute a higher amperage device to power a circuit, as this can cause fires or component damage. If a fuse repeatedly blows, there could be a short or overload; professional diagnosis is advised, especially for high-current circuits like towing or heavy-duty accessories.
Replacing fuses and relays safely
To replace fuses or relays in the fuse box f250 super duty, confirm the correct amperage first. Use a fuse puller or insulated pliers, and never substitute a higher rated fuse. After replacement, recheck the circuit and listen for a relay click. If the new fuse fails again, disconnect the suspected load and inspect for shorted wiring or a stressed harness. Reinstall the cover and record the replacement details for future maintenance. FuseBoxCheck emphasizes accuracy and safety over speed when dealing with automotive electrical components.
Maintenance and preventive care for the fuse box
Regular maintenance reduces fuse box failures on the fuse box f250 super duty. Keep the box clean and dry; apply contact cleaner to corroded terminals and reseal the lid to prevent moisture intrusion. Periodically inspect engine bay harnesses for signs of heat damage or fraying. If you notice buzzing, heat, or burning smells, stop work immediately and inspect the components. Consider weatherproofing exposed boxes and clearly labeling circuits so future owners understand the layout. Space modifications to avoid overloading circuits and always follow manufacturer specifications.
Upgrades and safety considerations for the fuse box
If you plan to add high demand accessories to a Ford F250 Super Duty, carefully plan the electrical load and ensure fuse ratings match the new equipment. Do not install aftermarket relays without appropriate wiring gauges and secure mounting. When unsure, seek a professional diagnosis. Keep the original fuses and relays in place and use dedicated circuits for heavy loads. Document any changes and verify compatibility with vehicle safety standards. FuseBoxCheck stresses conservative upgrades that preserve reliability and safety.
When to seek professional help or replace components
Some issues require expert evaluation. If you find melted fuses, scorched terminals, corrosion beyond cleaning, or repeated fuse failures despite correct replacement, contact a licensed technician. A professional can diagnose underlying wiring faults, test the harness, and advise whether the fuse box or related modules require replacement. For many owners, a professional assessment saves time and minimizes risk when working with the Ford F250 Super Duty electrical system.
Your Questions Answered
Where is the fuse box located on a Ford F250 Super Duty?
Most Ford F250 models have an interior fuse box under the driver's dash and an engine bay fuse box near the firewall. Always verify with the owner's manual for your year and trim.
The Ford F250 typically has two fuse boxes: one under the dash and one in the engine bay near the firewall. Check your manual for exact locations.
Can I drive with a blown fuse, and what should I do?
Driving with a blown fuse can be unsafe because you may lose critical systems. If you must move the vehicle, limit use of affected circuits and seek quick repair to replace the fuse and diagnose the cause.
A blown fuse can disable crucial systems, so don’t drive long with it. Get the fuse replaced and check the system soon.
What tools do I need to check fuses on the F250?
A basic set includes a fuse puller or insulated pliers, a multimeter, and the vehicle manual. Use the multimeter to verify continuity and avoid guessing.
You’ll want a fuse puller, a multimeter, and the manual to check fuses safely.
What is the difference between a fuse and a relay?
Fuses protect circuits by breaking the connection when current is too high. Relays are switches that allow a low current control circuit to operate a high current load.
Fuses protect circuits, while relays act as controlled switches for high current loads.
Are blade fuses used in the F250 and how to identify them?
Ford F250 uses blade fuses in the interior and engine bay boxes plus relays. Identify them by size and amperage label on the fuse itself.
Blade fuses come in different sizes; check the amperage on the fuse label before replacing.
Should I replace the fuse box cover if damaged?
Yes, replace damaged covers to keep moisture out and prevent accidental contact with live parts. If the original cover is unavailable, use a proper aftermarket cover that fits.
If the cover is damaged, replace it to protect the box and keep moisture out.
Highlights
- Identify fuse box locations and functions in the F250 Super Duty
- Never bypass a blown fuse or exceed circuit amperage
- Label circuits and keep diagrams accessible
- Inspect terminals for corrosion and moisture regularly
- Consult a professional for repeated fuse failures
