Ford F-250 Fuse Box Under Hood: A Practical Troubleshooting Guide

Location and layout of the under-hood fuse box on the Ford F-250

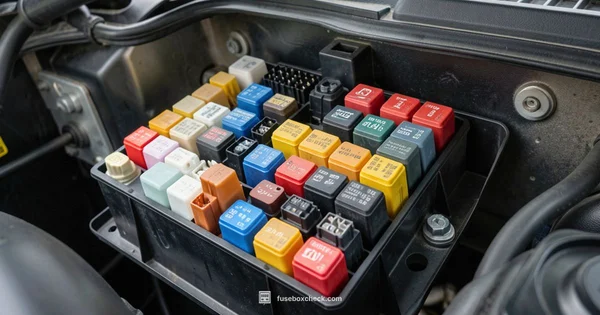

The Ford F-250's under-hood fuse box is designed for quick access during routine maintenance and troubleshooting. For most model years, you’ll find the box mounted in the engine bay on the driver’s side, near the radiator support or adjacent to the main wiring harness. The cover is clearly labeled with a fuse map and amperage ratings. Before you open it, ensure the vehicle is off and the key is removed from the ignition. The label on the cover and the owner’s manual provide the exact diagram for your year and trim. According to FuseBoxCheck, a clean, labeled fuse box reduces confusion when diagnosing electrical faults and helps you locate the correct fuse quickly. When you remove the cover, keep track of each fuse’s position, as misplacing a fuse can lead to incorrect ratings being used in a pinch.

• Look for a sturdy lid with a visible label
• Note the color and amperage of each fuse
• Keep a small tray to hold pulled fuses and relays
• Compare the fuse map to the actual wiring harness layout

This section lays the foundation for safe, effective troubleshooting, ensuring you know where to work and what each fuse protects.

Reading the fuse box diagram and understanding amperage ratings

Every under-hood fuse box uses a diagram that maps each fuse to a specific circuit. The amperage rating tells you how much current the fuse can safely pass before it blows. The Ford F-250 usually follows the standard automotive fuse color-coding, but always cross-check the numbers printed on each fuse with the diagram on the cover. If you’re unsure about a particular circuit (headlights, ABS, or fuel system), reference the owner’s manual and the wiring schematic for your exact year. Fuse ratings are chosen to protect wiring insulation from overheating; using a fuse with a higher rating can leave wiring unprotected and increase fire risk. Fuse diagrams also indicate which fuses control relays, indicators, and sensors, helping you triage faults more efficiently. A methodical approach to reading the diagram reduces accidental damage and speeds repairs.

Tools and safety steps before you start

Before touching anything under the hood, prepare a safety checklist. Wear insulated gloves and eye protection, and ensure the vehicle is completely off with the ignition key removed. Disconnect the negative battery terminal to prevent accidental short circuits while handling metal tools or prying open relay housings. Use a flashlight for visibility and a fuse puller or plastic tweezers to remove fuses without touching metal terminals. Keep metal jewelry away from exposed terminals to avoid accidental conduction. When you reassemble, double-check that all fuses and relays sit firmly in their sockets and that the cover is securely closed to prevent moisture ingress. FuseBoxCheck emphasizes following a strict sequence: power down, inspect, test, then replace with the same amperage rating.

Step-by-step: how to inspect fuses with a flashlight and tester

1. With the engine off, remove the fuse box cover and identify the fuse corresponding to the symptom (lights, wipers, ignition, etc.). 2) Visually inspect each fuse for a broken filament or a darkened glass—these indicate a blown fuse. 3) Use a multimeter or a dedicated fuse tester to check continuity; if there’s no continuity, replace the fuse with one of the same amperage rating. 4) Check for signs of corrosion on terminals and on the fuse seats; clean with a contact cleaner if needed and re-seat. 5) After replacing, reconnect the battery and test the circuit before closing the hood. 6) If the problem recurs, document the cycles and consult a professional.

What to do if a fuse is blown

A blown fuse means the circuit is drawing more current than the wire is designed to carry. Start by verifying the symptom-circuit alignment, then replace the fuse with the same amperage rating. Do not upsize the fuse to compensate for a fault—the fault could be a short to ground, a damaged wire, or a failing component. After replacement, perform a targeted test of the circuit to ensure the issue is resolved and monitor for repeated blows. If the fuse continues to blow, shut the system down and seek professional service.

Common issues and what they indicate

Repeated fuse blowouts often point to a short circuit, a damaged wire insulation, or a failing component drawing excess current. Corrosion on fuse terminals or relays can cause intermittent connectivity and unpredictable behavior, such as dimming lights or erratic gauge readings. Melted relay covers or signs of heat around the fuse box indicate overheating, which may require replacing the affected relay, re-wrapping wiring, or even replacing a damaged section of the harness. In some cases, a faulty fuse box lid or misrouted wiring can disguise a problem as a blown fuse. Systematic testing and visual inspection help separate root causes from symptomatic symptoms.

When to replace the entire fuse box or harness

If the housing shows extensive heat damage, persistent corrosion, cracks, or melted plastic, replacing the under-hood fuse box or the affected wiring harness is warranted. These problems can compromise insulation resistance and increase the risk of electrical fires. Replacing a fuse box or a wiring harness is a job best matched to a trained technician, especially when the harness routes near moving parts or high-heat areas. Budget for professional installation and ensure any replacement components meet OEM specifications. FuseBoxCheck notes that when components fail repeatedly despite proper maintenance, replacing affected assemblies provides safer, long-term reliability.

Maintenance checklist to keep the under-hood fuse box safe

• Inspect the fuse box cover and seals annually for cracks or moisture ingress.
• Clean terminals with appropriate contact cleaners, avoiding metal abrasives.
• Verify all fuses and relays sit securely in their sockets.
• Replace any fuse with the same amperage rating and type.
• Keep a spare set of common fuses and a tester in your roadside toolkit.
• Document any recurring issues and the circuits involved to streamline professional service if needed.

Regular checks reduce the risk of unexpected electrical faults and help prolong the life of under-hood electrical components.

Troubleshooting guide: dos and don'ts for Ford F-Series

Do:

• Power down the vehicle before inspecting.
• Use the correct tool for fuse removal.
• Replace only with the same amperage rating.
• Label any modifications to the fuse map for future reference. Don’t:
• Replace a fuse with a higher rating to hide a problem.
• Force fuses or relays into sockets.
• Ignore burning smells, melted plastics, or frayed wires. Seek professional service if symptoms persist.
