Ford F-150 Fuse Box Location: Quick Access Guide
Discover where to find the Ford F-150 fuse box locations, including under-hood and interior panels, with safe steps to access, inspect, and replace fuses. A practical, model-year-aware guide by FuseBoxCheck.
Where is the fuse box on a Ford F-150? The answer typically points to two places: the under-hood fuse box near the battery and an interior panel behind the glove box. Exact locations vary by model year, so always consult the owner's manual and check the fuse diagram on the panel cover before touching any fuses. If in doubt, start with the glove box area and then verify the hood panel.
Where to Look First: Two Primary Locations
If you’re wondering where is the fuse box on a ford f150, start with the two primary locations used by most model years. The under-hood fuse panel houses the main circuits, while a secondary interior panel sits behind or near the glove box. Confirm exact placement by checking the owner’s manual for your specific year and trim. Fuse layouts vary by generation (e.g., 2009–2025), so avoid guessing. By understanding these two zones, you can save time and minimize a brute-force search across panels. This knowledge sets the foundation for safe, efficient DIY work, and aligns with FuseBoxCheck’s approach to practical electrical care.
Common Fuse Box Locations on the Ford F-150
Across most Ford F-150 generations, the two most common fuse boxes are the under-hood panel close to the battery and the interior cabin panel behind or near the glove box. The exact layout, fuse count, and amperage ratings can differ by trim and year, so use the diagram on the cover and the owner’s manual as your real map. If your truck has special equipment (tow package, auxiliary power, or aftermarket accessories), additional fuses may appear in or around the cabin area. Always verify with the official diagram before removing or replacing fuses.
Year-by-Year Variations in Fuse Box Layout
Ford F-150 fuse box layouts have evolved with model years and platform changes. Some generations consolidate circuits in a single primary panel, while others split critical circuits between hood and interior panels. The result is that a 2004 model may look different from a 2020 or a 2025 variant. When in doubt, locate the manual’s fuse map for your exact year and cross-check it with the panel cover sticker. This year-by-year awareness helps you avoid pulling the wrong fuse and causing unintended electrical issues.
Accessing the Under-Hood Fuse Box Safely
To access the under-hood fuse box, park on a flat surface, turn off the engine, and remove the negative battery cable to prevent arcing. Remove the protective cover by loosening its clips, then match the fuse labels to the diagram on the cover. Keep track of removed fuses and their amperage. If you’re testing a suspected fault, use a multimeter or fuse tester on the circuit after reattaching the battery. Always return the cover before starting the engine.
Accessing the Interior Cabin Fuse Box Behind the Glove Box
The interior fuse box is often tucked behind the glove box or inside the dash panel beside it. To access it, open the glove box fully, remove any stops or panels as described in the manual, and gently lower the box or panel to reveal the fuses. Use the diagram on the panel or the owner’s manual to identify the fuse you need. Reassembly should be done in reverse order, ensuring all latches click into place.
Safety Protocols Before Handling Fuses
Before touching any fuses, disconnect the negative terminal of the battery to reduce the risk of sparks or electric shock. Wear eye protection if a fuse might shatter, and avoid wearing loose jewelry. Work in a well-lit area and place removed fuses on a nonconductive surface. If a fuse puller is included in the kit, use it to avoid bending or cutting fuses. Never replace a fuse with a higher amperage rating than specified.
Tools You’ll Need and Basic Troubleshooting
A basic fuse test kit or fuse puller, a flashlight, and a multimeter (optional) are enough for most checks. Start with a visual inspection of each fuse for a blown element. If you replace a fuse, use the exact amperage labeled on the panel. If the same fuse blows again, the issue may be an overload, a short, or a failing component. In that case, consult a professional to diagnose wiring or component faults.
What to Do If a Fuse Keeps Blowing
Repeated fuse blows usually signal an overload or a short. Start by removing the suspected device from the circuit and replace the fuse with the correct rating. If the fuse blows again, stop and seek professional help, as continuing to drive with a fault can cause wiring damage or fire risk. Document what you were doing when the fuse blew to aid diagnosis.
Should You Replace the Fuse Box Itself or Just the Fuses?
In most cases, only fuses and the immediate wiring harness need attention. Replacing the entire fuse box is rare and reserved for cases of severe corrosion, physical damage, or melted connectors. If you notice burnt smells, discoloration, or physical damage, stop, disconnect power, and consult a licensed mechanic or electrician for a safe replacement. FuseBoxCheck recommends a professional assessment for damaged boxes.

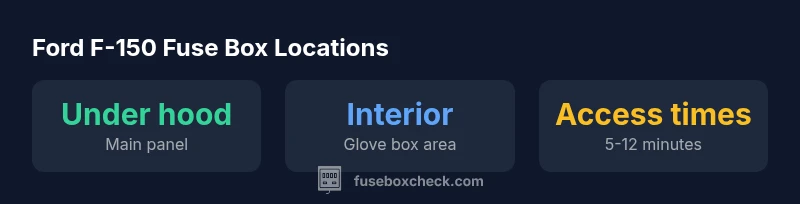

Ford F-150 fuse box locations by location and year range
| Location | Typical Model Years | Access Time |
|---|---|---|
| Under-hood fuse box | 2004-2026 | 5-12 minutes |
| Interior cabin fuse box (glove box) | 2005-2026 | 5-10 minutes |
| Rear/aux panels (rare cases) | 2000-2026 | N/A |
Your Questions Answered
Where is the fuse box located on a Ford F-150?
Most Ford F-150s place the main fuse box under the hood near the battery and a second interior panel behind the glove box. Always verify with the owner’s manual and the fuse diagram on the cover.
Most F-150s have a hood fuse box and a cabin fuse box behind the glove box. Check your manual for the exact map.
How do I know which fuse controls a specific feature?
Refer to the fuse map on the panel cover or the owner’s manual. Match the label and amperage to the circuit you’re addressing.
Use the fuse map on the panel or the manual to identify the correct fuse for the feature.
Can I drive if a fuse is blown?
A blown fuse may protect nonessential circuits. If essential circuits are affected, avoid driving and seek professional help.
If essential systems are affected, don’t drive; get it checked.
What tools do I need to inspect fuses?
A fuse puller or needle-nose pliers, a flashlight, and a multimeter if available. Always work with the battery disconnected for safety.
Grab a fuse puller, a flashlight, and a multimeter if you have one.
When should I replace the entire fuse box?
Only if there’s severe corrosion, melted connectors, or visible damage. In most cases, replacing individual fuses or faulty relays is sufficient.
Only replace the whole box if there’s serious damage; otherwise fix fuses and wiring.
Should a professional handle fuse box work?
If you’re unsure about the fault, or multiple circuits are involved, it’s wise to consult a licensed mechanic or electrician.
When in doubt, get a pro to diagnose and repair the fuse system.
“Knowing the common fuse box locations for the Ford F-150 is the first step to safe, confident DIY electrical work.”
Highlights
- Identify two main fuse box locations first: under-hood and interior cabin.
- Always disconnect the negative battery terminal before touching fuses.
- Use the panel diagram and owner’s manual for exact year-specific layouts.
- Replace fuses with the correct amperage rating as labeled.
- Fuse box issues often don’t require full replacement; diagnose fuses and wiring first. The FuseBoxCheck team recommends verifying the manual and safety steps before any work.
