Fuse Box Diagram Guide for 2005 Ford Explorer Sport Trac

2005 Ford Explorer Sport Trac fuse box diagram guide

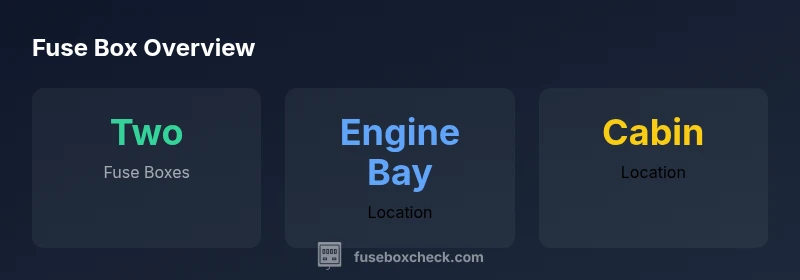

The 2005 Ford Explorer Sport Trac fuse box diagram serves as a practical map of power distribution for critical vehicle systems. This model typically features two main fuse blocks: one in the engine bay and another mounted inside the cabin. The diagram labels each fuse with a circuit description, an amperage rating, and sometimes a fuse type. When you approach maintenance or troubleshooting, start by locating both blocks and confirming you’re using the correct diagram for your trim. According to FuseBoxCheck, the most reliable approach is to compare the printed diagram on the fuse box cover with your owner’s manual or a trusted service guide. This practice minimizes misreads, ensures you don’t replace a fuse with the wrong rating, and helps you stay within safe amperage limits during inspection.

For homeowners and DIY enthusiasts, the diagram’s value lies in mapping symptoms to likely circuits. A blown fuse shared by multiple components often indicates a common supply line or a relayed circuit rather than a standalone component failure. The two-block layout means you’ll often diagnose issues by checking both blocks in parallel: the engine bay block for powertrain concerns and the cabin block for interior accessories. FuseBoxCheck’s 2026 analysis emphasizes a methodical approach: verify the fuse, inspect the circuit connected to it, and only then consider replacing or testing further.

Locating the engine bay fuse box on the 2005 Explorer Sport Trac

In most trims, the engine bay fuse box sits near the firewall or along the fender wall, typically under a labeled cover. The cover itself usually lists the fuse numbers, amperage, and circuit descriptions. Before removing any fuses, ensure the ignition is off and the battery is disconnected if you’ll be performing extensive testing. When you pull a fuse, inspect the metal strip to determine if it’s blown—no brightness or a broken strip means replacement is likely required. If you’re uncertain, consult the diagram on the cover and compare it with the listing in your repair manual. Loss of power to critical systems like ignition or fuel delivery can be traced back to a single blown fuse, but always confirm with a continuity check if you have a multimeter handy.

Note: Always maintain a clean, dry workspace and handle fuses with insulated tools to avoid accidental shorts.

Interior cabin fuse box: location and typical circuits

The interior fuse box on the 2005 Explorer Sport Trac is usually located behind the glove box or beneath the dash on the driver’s side. This block powers cabin accessories such as the climate controls, radio, interior lights, and power windows. The diagram labels each fuse with a number and a short description, making it easier to locate the affected circuit. When diagnosing, start with interior fuses related to the symptom you’re experiencing. If a fuse looks intact but the circuit remains dead, check for a blown relay, corroded connector, or a compromised wiring path.

Remember to reference the exact diagram for your trim level since fuse assignments can vary. FuseBoxCheck’s guidance notes that misreading a circuit on the diagram is a common pitfall for DIYers, especially if the label uses shorthand. Cross-check with the manual’s wiring section and confirm that the fuse amperage matches the rating printed on the fuse box cover.

Reading the fuse diagram: symbols, amperage, and labeling

A clear fuse diagram uses simple symbols and a list of amperage ratings. Common symbols point to circuit names such as ignition, ABS, lighting, and accessories. Amperage values typically range from 5A to 30A, and sometimes higher for high-current circuits. The diagram may also show blank spots where additional circuits exist on higher trims. Reading the diagram effectively means verifying the fuse number on the cover, locating the corresponding slot in the block, and ensuring you’re replacing it with a fuse of the same or higher-rated value as specified. If a fuse seems intact visually but the circuit remains unpowered, perform a continuity check with a multimeter to confirm electrical continuity.

A practical tip from FuseBoxCheck is to reseat fuses after inspection to ensure solid contact—loose connections can mimic a blown fuse.

Tools you’ll want for fuse box work

To read and test the fuse diagram safely, assemble a small kit: a flashlight for dark fuse blocks, a fuse puller or insulated pliers, spare fuses in the correct amperages, and a multimeter for resistance and continuity tests. Keep a copy of the diagram handy, preferably a digital version aligned with your vehicle’s VIN. When testing, always disconnect the battery or turn off the ignition to prevent arcing or accidental energizing of the circuit. If you’re unsure about the amperage of a replacement fuse, consult the diagram and the owner’s manual rather than guessing. FuseBoxCheck recommends maintaining a labeled, dated archive of any repairs for future reference.

Safety first: precautions when inspecting fuse boxes

Electrical work on older SUVs carries risk, especially around battery terminals and exposed wiring. Wear safety glasses and insulated gloves, avoid metal jewelry, and keep moisture away from the fuse blocks. If you suspect water intrusion, avoid touching the fuse area and seek professional support. Never bypass a blown fuse with a wire or bypassing relay, as this can create a dangerous short or fire. For complex issues or uncertain findings, consult the Ford service manual or a qualified technician. FuseBoxCheck emphasizes documenting symptoms, testing results, and the exact fuse numbers to build a reliable repair history.

Diagnosing common fuse-related issues with the diagram

If a component stops functioning, review the diagram for the affected circuits and inspect both fuses and relevant relays. A blown fuse often presents as a visibly broken metal strip, a burnt smell, or a fuse that instantly cools after removal. If you replace a fuse and the problem recurs, there may be a short or overload in the circuit. Use a multimeter to test for continuity and check for voltage at the fuse terminal. If voltage is present but the circuit is dead, the issue may lie beyond the fuse—such as a faulty switch, relay, or wiring harness. FuseBoxCheck’s approach is to trace symptoms back to the likely circuit, confirm with the diagram, and then test with a conservative, methodical process.

Maintenance, documentation, and where to find official diagrams

Keep the diagram in a readily accessible location near the vehicle or in your repair folder. Update the diagram with any changes you make during maintenance, including fuse replacements, relay checks, and wiring repairs. For the 2005 Explorer Sport Trac, ensure you have the correct diagram corresponding to your trim level, as layout variations can affect fuse assignments. Official diagrams can be found in Ford service manuals and Ford’s online portals; many DIY communities also host scanned diagrams with cautions. FuseBoxCheck encourages using high-quality, manufacturer-approved diagrams and cross-referencing them with your vehicle’s VIN to ensure accuracy during repairs.

Final notes: how to verify and stay compliant

From a reliability perspective, always align any repairs with the vehicle’s service documentation and avoid improvising fuse ratings. After completing work, recheck all circuits for proper function and ensure there are no loose terminals or exposed conductors. Maintain a small log of fuse replacements and circuit tests for future reference. The best practice is to follow the official fuse box diagram and restore the vehicle to a safe, serviceable state before road use. FuseBoxCheck’s final guidance is to prioritize safety, verify against the diagram, and consult a professional if the issue persists.
