Campervan Fuse Box Troubleshooting and Maintenance

Understanding the Campervan Fuse Box

The campervan fuse box is the nerve center for 12-volt circuits that power lighting, outlets, water pumps, and refrigeration while you travel. In most vans, the panel consolidates multiple fuses or circuit breakers in a compact enclosure with a labeled map. The labels help you quickly identify which circuit controls what: lights, water pump, fridge, inverter, auxiliary outlets, and charging circuits. A well-organized fuse box reduces downtime when something stops working and makes troubleshooting far more predictable. If your van is a conversion, the layout may be hand-labeled on the back of the panel or inside the cabinet door. Begin by locating the panel: it’s commonly under a seat, behind a side panel, or in a cabinet near the driver area. With a good diagram, you can trace a problem to its source without pulling apart insulation or wiring. Keep a simple spreadsheet or card with each circuit and the corresponding fuse rating for quick reference on the road.

Safety First: Risks and Precautions

Working with a 12V system in a campervan carries real risks, including electric shock, arcing, and burns if a circuit shorts. According to FuseBoxCheck, safety procedures reduce these risks dramatically. Always power down fully before touching the fuse box: disconnect the negative battery lead first, then the positive, and verify there is no residual voltage. Wear eye protection and insulated gloves when possible, and keep liquids away from the fuse box. Use insulated tools and avoid touching metal clamps or terminals. If you must work in a space with poor ventilation or damp conditions, pause and address the environment before continuing. After finishing, reseal any gaskets or panel openings to prevent moisture intrusion. Document any changes so future work is faster and safer.

Circuit Layouts and Common Configs in Campervans

Campervan electrical setups vary widely, but most include circuits for interior lights, exterior lights, water pump, fridge, USB/12V outlets, inverter, and charging from a battery bank. The fuse box is typically segmented by function, with fuses rated for each circuit. In many builds, the panels use blade fuses (ATO/ATC) or compact automotive fuses, with labels showing the amperage. Understanding the layout helps you quickly identify which fuse governs a given device when something stops working. If your van has a custom system, refer to the installation notes or a panel diagram. Always cross-check the label on the fuse panel with the device’s power requirements, and avoid mixing circuits from different rating families.

What Blown Fuses Look Like and How to Confirm

A blown fuse often shows a visible sign—melted metal, a blackened window, or a broken filament in glass fuses. However, visual inspection alone isn’t always reliable, so use a multimeter to check continuity. With the power off, remove the fuse and test the two terminals: a continuous reading indicates the fuse is intact; no reading or infinite resistance indicates a blown fuse. If you find a blown fuse, don’t just swap in a higher rating; identify the underlying cause, such as a short or an overloaded circuit. Keep spare fuses in a labeled kit corresponding to the original amperages, and always replace with the same rating or the one specified by the manufacturer.

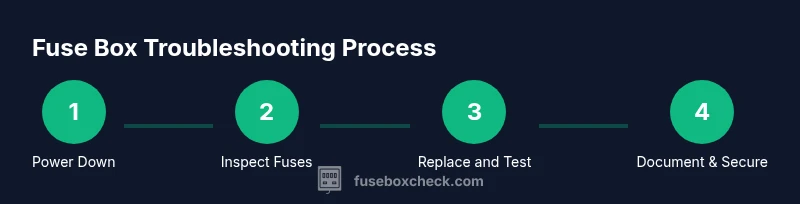

Step-by-Step Troubleshooting and Replacement

To fix common campervan fuse box issues, follow a structured approach that minimizes risk. Start by powering down and isolating the battery; verify there is no residual voltage at the panel. Inspect the fuse list and remove any suspected fuses with a fuse puller. Check each fuse visually and with a multimeter, then replace blown fuses with the correct amperage. Reconnect power and test each circuit one by one, noting any devices that draw more current than expected. If a fuse repeatedly blows, inspect the corresponding circuit for a short or a faulty device and consider replacing the affected wiring or component. Finally, secure the fuse box cover, tidy wiring, and document any changes. Estimated time: 45–75 minutes.

Diagnosing Intermittent Faults and Behind-the-Dash Wiring

Intermittent faults in a campervan fuse box often point to loose connections, corroded terminals, or aging wiring. Inspect terminal screws for tightness and clean any corrosion with a small brush and dielectric grease. Check both the supply and return paths, including battery connections and grounding points. An intermittent fault can also arise from a failing relay, a device that cycles on and off, or a marginal contact in a fuse holder. If you discover heat marks, discolored insulation, or a burning smell, stop and reassess immediately. Use a thermal camera or a non-contact thermometer if available to identify hotspots. Replacing a harness or repairing insulation may be necessary, and always test sections in isolation to locate the root cause.

Maintenance to Prevent Future Issues

Preventive maintenance reduces the likelihood of fuse-related failures on long trips. Schedule a quarterly inspection of the fuse box, looking for melted fuse windows, corrosion, or loose connectors. Keep the area clean and dry, and replace any aged or damaged wiring insulation. Label circuits for easy identification, and consider a small surge protection strategy for sensitive electronics. Regularly check battery health, charging circuits, and ground connections, and ensure fuses are accessible but protected from moisture and vibration. A proactive approach saves time and money by avoiding roadside electrical failures.
