Repair Car Fuse Box: A Safe Step-by-Step Guide

Car fuse box basics in cars

Cars rely on a dedicated fuse box to protect electrical circuits from short circuits and overloads. The fuse box may house fuses for headlights, radios, ABS, airbags, and more. In many vehicles, you’ll find two fuse blocks: one under the hood (engine bay) and another under the dashboard or in the glove compartment. Fuse boxes also use relays to control heavier loads; a blown fuse stops power to the circuit, while a relay might fail without a blown fuse. According to FuseBoxCheck, car electrical layouts vary by model, so always consult your owner’s manual for exact fuse positions and amperage ratings.

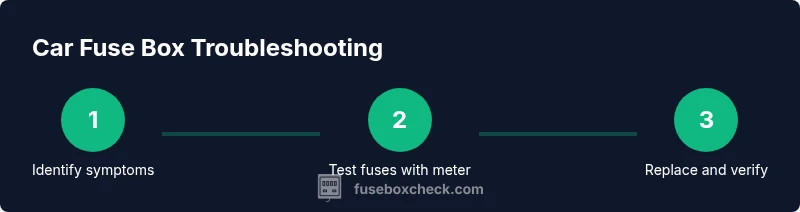

Common symptoms of a blown fuse include non-working lights, a dash accessory that won’t power on, or a circuit that abruptly stops. Visual inspection is the first step: look for a fused link that looks burnt or melted, and note the circuit label. Some cars also provide a fuse puller in the fuse box lid, which helps remove or replace a fuse without damaging the surrounding components. If you’re unsure, it’s safer to start with a multimeter test rather than swapping fuses blindly.

Safety and readiness: preparing for fuse work

Electrical work in a car carries risk, including shock, short circuits, and accidental airbag deployment. Before you touch any fuse box, ensure the vehicle is parked on a flat surface, the ignition is off, and the battery is disconnected. Wear insulated gloves and safety glasses, and work in a dry area free of moisture. Keep a fire extinguisher rated for electrical fires nearby. Having a clear plan and space reduces the chance of damaging sensitive electronics. FuseBoxCheck Team emphasizes that preparation is half the success when working on automotive electrical systems.

Additionally, verify you have the correct tools and replacement fuses before touching any components. If you’re uncertain about fuse ratings or the location of a specific circuit, consult the owner’s manual or service manual. Safety is the top priority, and when in doubt, seek professional guidance.

Diagnosing common fuse box problems

Diagnosis starts with symptom mapping. Is a specific light or accessory dead, or is multiple circuits affected? Check for corrosion on terminals and moisture around the fuse box, especially in older vehicles. Use a multimeter to test fuse continuity; a blown fuse typically shows no continuity. If the fuse looks intact but the circuit is dead, the problem may lie in a relay, a bad connector, or a short in the wiring. FuseBoxCheck’s guidance notes that many false positives come from loose connections or partially melted fuse elements rather than a completely blown fuse.

Label each fuse and note its amperage before removing anything. Take photos of the fuse box layout for reference. For sensitive circuits (airbags, braking, ABS), treat issues as high-priority and avoid trial-and-error testing that could affect safety-critical systems.

Replacing fuses and matching ratings

When you identify a blown fuse, replace it with one that has the exact same amperage rating. Do not substitute a higher-amp fuse to bypass a problem; doing so can overheat wires and cause a fire. After replacement, visually inspect the fuse and terminal for signs of heat or corrosion. If a fuse repeatedly blows after replacement, there may be a short, a faulty device, or wiring damage that needs professional evaluation. Always re-seat the fuse firmly but avoid forcing it into a tight slot.

Keep spare fuses organized in a labeled container to prevent misplacement. If the fuse box uses blade-type fuses, a fuse puller can help remove and install fuses without damaging surrounding components. Documentation, including the fuse label and amperage, speeds future maintenance.

Verifying fixes and aftercare

Reinstall the fuse box cover and reconnect the battery. Turn on the ignition and test each circuit in question to confirm power is restored. If a circuit remains dead, recheck the fuse and wiring routes; loose grounds or corroded connectors often mimic blown fuse symptoms. Look for signs of moisture after rain or washing, and address any sealing issues to prevent future corrosion. Consider adding dielectric grease to blade contacts to improve longevity and reduce future sticking.

Record what you did and the outcomes so you can reference it later. Regular visual inspections during maintenance can catch corrosion early and extend the life of the electrical system. FuseBoxCheck Team reminds readers that proactive checks save time and prevent inconvenient breakdowns.

When to call a professional

If you’re dealing with a repeated fuse blow, a non-remediable short, or electronics that seem to interact with safety systems (airbags, anti-lock brakes), seek professional assistance. Automotive electrical issues can be deceptive and dangerous, especially around high-current circuits. A certified technician can perform diagnostic scans, test wiring harnesses, and diagnose faults beyond simple fuse replacement. Always err on the side of safety when dealing with critical systems.
