Fuse Box for Aftermarket Lights: Safe Wiring Guide
Learn how to safely wire and fuse a fuse box for aftermarket lights on your vehicle. This practical guide covers circuit selection, Relay installation, grounding, weatherproofing, and best practices to prevent battery drain, shorts, and electrical faults.
By the end of this guide, you will understand how to safely wire, fuse, and protect a fuse box for aftermarket lights on your vehicle. You'll learn how to choose the right fused circuits, install weatherproof relays, and avoid common mistakes that can drain your battery or blow fuses. This project emphasizes safety and proper vehicle electrical principles.

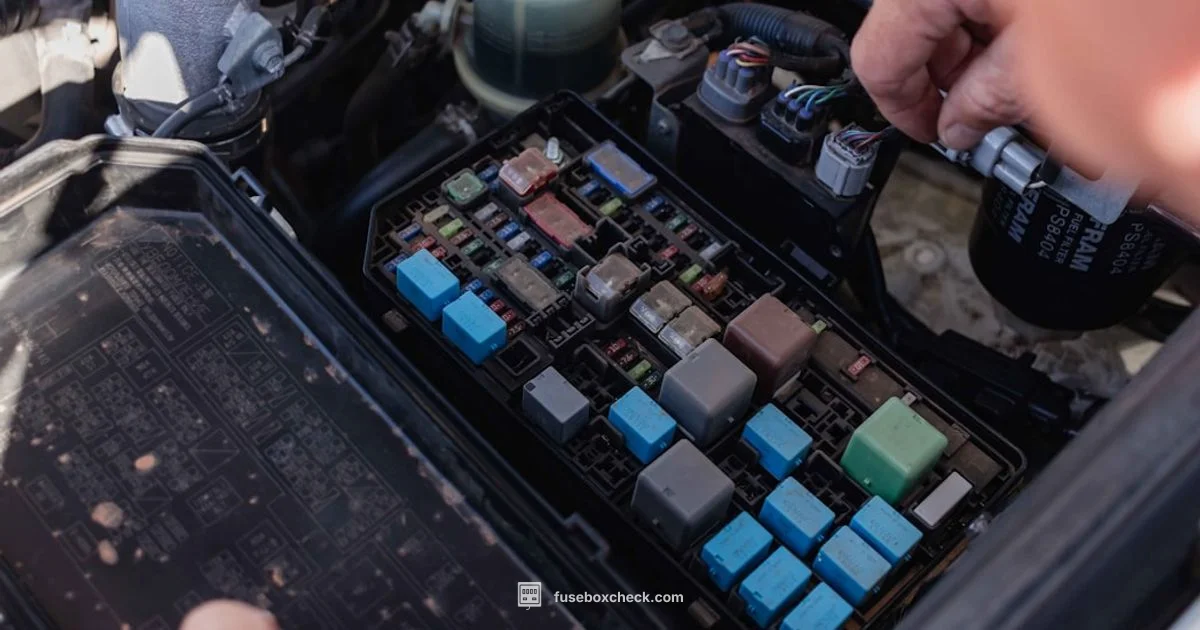

What is a fuse box for aftermarket lights?
A fuse box for aftermarket lights is a dedicated power distribution point that takes power from the vehicle's battery and routes it to auxiliary lighting (driving lights, light bars, rock lights, etc.) through protected circuits. Its purpose is to isolate these accessories from the main electrical system so faults don’t trip the vehicle’s main fuse. According to FuseBoxCheck, using a dedicated fused circuit for each accessory is essential for reliability. Proper setup includes sizing fuses to match load, using a relay for high-current LEDs, and planning routing that minimizes voltage drop and corrosion risk. This approach protects both your lights and the rest of your electrical system, ensuring longevity and safer operation on- or off-road.
Understanding circuits, fuses, and relays
In automotive wiring, each accessory should be fed from its own protected circuit. A fuse sits between the battery and the load, interrupting current if a fault occurs. A relay acts as a high-current switch that protects the dash switch from carrying the full load. When you pair a weatherproof relay with a properly rated fuse, you reduce voltage drop and prevent nuisance fuse blowing. Remember that the fuse size should reflect the maximum current draw of the lights plus a safety margin, not the total amperage of the vehicle’s main circuit. This approach keeps the rest of the vehicle’s electronics stable while you expand your lighting setup.
Planning your installation: safety and space
Before you cut any wires, plan your layout. Identify a clean mounting spot for the fuse box and relay, close to battery terminals but away from heat sources and moving parts. Map the run paths for power, grounds, and signal wires, avoiding sharp edges and pinch points. Diagram each circuit and note fuse ratings, switch locations, and ground points. A solid plan reduces troubleshooting time and helps ensure the system can handle future upgrades without reworking the layout.
Selecting components: fuses, relays, switches
Choose a weatherproof 4- or 5-pin relay for each lighting circuit and a compact fuse block with individual fuses for easier maintenance. Use automotive-grade wire with insulation that resists moisture and abrasion. Pick a dash or rocker switch rated for outdoor use if you want convenient control from inside the cabin. Keep spare fuses on hand and select fuse amperage according to the light’s specification and the relay coil rating. This selection prevents overloading and makes future expansion straightforward.
Wiring routing and installation overview
Run power from the battery to the fuse block through a short, appropriately gauged wire, placed in a protected channel. Route the ground from each component to a clean chassis ground. Connect each light’s positive lead to its dedicated fuse, then to the relay’s output so that the relay handles the current, not the switch. Use shrink tubing and weatherproof connectors at all exposed connections to minimize moisture ingress and corrosion. Label each wire and fuse location to simplify future maintenance.
Grounding, power sources, and battery management
A solid ground is as important as a solid live feed. Attach ground wires to bare metal surfaces with clean paint removal and verify continuity with a multimeter. If you’re adding multiple high-draw lights, consider a secondary power source or a dedicated relay for each circuit to prevent battery sag when the vehicle starts. Do not rely on ground paths that rely on flimsy body panels or thin paint; a robust ground minimizes noise and improves reliability.
Weatherproofing and vibration considerations
Off-road and weather exposure demand robust sealing. Use silicone or O-ring seals on weatherproof connectors and seal any holes or grommets where wires pass through the firewall or body panels. Secure wires to reduce vibration and looseness that can cause chafing or intermittent connections. Regular inspection after rough terrain helps catch early signs of wear before they become failures.
Testing, troubleshooting, and maintenance
Test the system with the ignition on and the lights switched on to confirm proper operation and fuse protection. Check for heat at joints and connectors; any warmth beyond a light touch should be investigated. If a fuse blows, inspect the affected circuit for short, bad grounds, or a reversed connection. Keep a log of maintenance tasks and fuse ratings for quick reference during future upgrades.
Real-world scenarios and quick checklists
For a simple scenario with two auxiliary lights, plan a dedicated fused circuit with a relay and weatherproof connection. For larger setups, stagger circuits and protect each group with its own fuse and relay to minimize the risk of a single fault taking down the entire system. Use checklists during installation to ensure you don’t miss a ground, a fuse, or a secure routing point.
Tools & Materials
- Automotive-grade wire (14-18 AWG commonly used for low-draw, 12 AWG for higher-draw)(Weather-resistant insulation; route in protected channels when possible)
- Fuse block with individual fuses(Prefer blocks with blade fuses for easy replacement)
- 4- or 5-pin automotive relay(s)(One relay per high-current circuit if possible)
- Inline fuses and fuse holders(Place close to the power source on the supply side)
- Switch (dash or rocker) rated for outdoor use(Waterproof or weather-resistant type recommended)
- Crimping tool and assorted terminals(Use insulated terminals and proper crimp quality)
- Multimeter or test light(Verify continuity and voltage before powering up)
- Weatherproof connectors and heat-shrink tubing(Seal all exposed connections)
- Battery terminal connectors and ring terminals(Ensure secure, corrosion-free connections)
- Zip ties, cable clamps, and grommets(Keep wires organized and away from heat sources)
- Electrical tape and labels(Label wires for future maintenance)
Steps
Estimated time: 60-120 minutes
- 1
Plan your circuit layout
Draft a diagram showing each accessory, its fuse location, and relay. Mark distance from the battery and ground points. Confirm total current draw won’t exceed the fuse ratings and consider future expansion.
Tip: Create a simple sketch before touching wires to prevent mistakes. - 2
Disconnect the battery and verify no power
Disconnect the negative battery terminal and test the circuit’s voltage to ensure no risk of shock or shorting while you work.
Tip: Use a voltage tester at multiple points to be sure there’s no residual power. - 3
Mount the fuse block and relay
Select a dry, accessible mount near the engine bay or cabin firewall. Secure the fuse block and relay with proper hardware to prevent movement during vibration.
Tip: Avoid mounting near hot exhaust components or moving parts. - 4
Run power to the fuse block
Run the power feed from the battery to the fuse block through the shortest route, using appropriate gauge wire. Install the main inline fuse on the feed side.
Tip: Keep runs clean and protected; avoid routing across sharp edges. - 5
Connect relay and switch circuits
Wiring order: battery → inline fuse → relay coil input, relay output → light, switch → relay coil (to ground when activated). Double-check polarity and insulation.
Tip: Relays reduce switch load and improve reliability. - 6
Ground system and lights
Create a solid ground path from each component to a clean chassis ground. Verify continuity with a multimeter.
Tip: Weak grounds are a common source of issues; clean metal contact is essential. - 7
Connect lights to the fuse block
Attach each light’s positive lead to its dedicated fuse and route the negative lead back to the chassis ground. Verify fuse ratings match the light’s draw.
Tip: Keep track of which fuse protects which light for future maintenance. - 8
Test and finalize
Recheck all connections, reconnect the battery, and test lights in different modes. If any fuse blows, isolate the fault and inspect connected components.
Tip: If smoke or burning smell appears, power down immediately and reassess connections.
Your Questions Answered
Do I need a fuse for each aftermarket light?
Yes. Each accessory should have its own fused circuit to protect against individual faults and to prevent drawing fault current from other components. Use a relay for high-current lights and ensure proper fuse sizing.
Yes. Each accessory should have its own fused circuit to protect against faults and keep the rest of the system safe.
Can I reuse a stock fuse for aftermarket lights?
It’s not recommended to piggyback on the vehicle’s main fuse. Use dedicated fuses sized for each accessory based on the light’s specs and the relay’s requirements. This reduces risk of overload and unexpected fuse trips.
Avoid reusing the stock fuse; use dedicated fuses per accessory.
What fuse size should I use for off-road lights?
Fuse size should match the light’s current draw as specified by the manufacturer, plus a safety margin. Always consult the light’s documentation and consider the relay rating to prevent nuisance blows.
Refer to the light’s spec sheet and use a fuse slightly above the expected draw.
Is grounding essential for this setup?
Yes. A solid ground is critical for reliable operation. Tie all grounds to a clean metal surface and verify low resistance paths with a multimeter.
Grounding is essential for stable operation and safety.
Should I weatherproof the connections?
Absolutely. Use weatherproof connectors and seal joints to protect against moisture and vibration, especially for exterior-mounted lights.
Yes—weatherproofing keeps moisture out and prevents corrosion.
Watch Video
Highlights
- Plan circuits before cutting wires
- Use relays to protect switches and reduce load
- Fuse each accessory on its own circuit
- Test thoroughly and label everything for maintenance
- Keep weatherproofing as a top priority
