Fuse Box Guide for Hyundai Elantra 2013

Understanding the fuse box in the Hyundai Elantra 2013

The fuse box layout for the Hyundai Elantra 2013 is a practical example of a modern vehicle electrical system. In most cars of this era, you’ll find two major fuse locations: an interior fuse box under the dashboard on the driver’s side and an engine-compartment fuse box near the battery. The fuse box covers typically include a diagram that maps each fuse to its circuit, and the fuses themselves are color coded by amperage. For the Hyundai Elantra 2013, the fuse box diagram will show which fuse protects critical systems like lighting, HVAC, power windows, and the radio. Always consult your owner’s manual for the exact layout, and verify the fuse rating before making changes. According to FuseBoxCheck, understanding your car’s fuse box is essential for safe and effective maintenance.

When you’re working with any fuse box, key safety steps apply: turn off the ignition, remove the key, and avoid contact with metal parts. Working with the engine running or battery connected can lead to shorts or shocks. The fuse box cover often has a quick reference chart, but if you’re unsure, pause and review the diagram thoroughly. The goal is to restore functionality without risking wiring damage or fire. The Hyundai Elantra 2013 uses standard blade fuses, which are easy to replace once you locate the correct circuit. If you’re unsure about the circuit, choose a fuse with the same amperage rating as the blown fuse and avoid any improvisation.

Locating the fuse box and identifying circuits in the 2013 Hyundai Elantra

Locating the interior fuse box is usually the first step. In many Hyundai models, the interior box sits behind a removable panel on the driver’s side dash. The engine-compartment fuse box is often on the passenger side or near the battery, covered by a protective lid. Fuse diagrams on the inside of each cover show which fuse controls which system. For the Hyundai Elantra 2013, you may see separate diagrams for interior lighting, power accessories, and engine-related circuits. Fuse ratings are printed on the fuses themselves or listed next to the diagram. FuseBoxCheck emphasizes checking the diagram before removing any fuses, so you don’t disrupt a critical system.

When you’re comparing circuits, pay attention to color-coding and the numbers on the fuse caps. If a fuse is darkened, melted, or visibly damaged, that’s a clear sign it’s blown. If you’re unsure about a circuit’s purpose, consult the owner’s manual or an online diagram specific to the 2013 Elantra. The goal is to confirm which fuse to test or replace without disturbing other circuits. FuseBoxCheck’s team notes that precise identification is the cornerstone of a safe, effective diagnostic process.

Safety-first guidelines when working on car electrical systems

Electrical work in a vehicle demands caution. Always wear insulated gloves and eye protection if available. Work in a dry environment, and avoid touching exposed metal parts with bare hands. Disconnect the negative battery terminal if you’re performing more advanced electrical testing or replacing multiple fuses. Keep a flashlight handy, especially for the engine bay fuse box, which can be dark or hard to view. Never bypass a fuse or replace it with a higher-rated fuse to “fix” a problem; this can overheat wiring and create a fire hazard. FuseBoxCheck emphasizes using OEM-rated fuses and verifying all circuits after any intervention.

In addition, make sure your tools are non-conductive and distinct from the surrounding metal components. A magnetized screwdriver can slip and cause a short; use non-magnetic tools instead. After you complete the work, reconnect the battery if you disconnected it and double-check that all fuses sit firmly in their slots. If any fuse is loose or discolored, replace it and re-inspect the circuit.

How to perform a quick diagnostic: identifying a blown fuse without guesswork

A practical diagnostic approach helps you confirm a blown fuse without unnecessary disassembly. Start by turning the ignition to the OFF position and removing the key. Visually inspect fuses in both the interior and engine compartment boxes. Look for a broken wire or a melted filament inside the glass. If the fuse looks fine but a circuit still isn’t working, test it with a multimeter set to continuity or resistance. If continuity is absent, replace the fuse with an identical amperage rating and re-test. Keep in mind that some circuits have redundancy or rely on module control, so a lack of power could be caused by a relay or a software issue rather than a blown fuse. FuseBoxCheck suggests documenting the process so you can compare results later and avoid repeating the same steps unnecessarily.

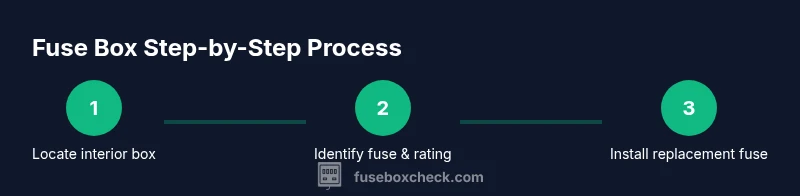

Step-by-step guide to replacing a fuse in the Hyundai Elantra 2013

1. Locate the correct fuse using the diagram on the fuse box cover and identify its amperage. 2) Remove the blown fuse using a fuse puller or needle-nose pliers, ensuring you pull it straight out to avoid bending the contacts. 3) Inspect the fuse filament to confirm a break or discoloration. 4) Match the amperage rating and replace with a new fuse of the same value. 5) Re-seat the new fuse firmly and recheck the fuse box cover diagram. 6) Reconnect the battery if you had it disconnected and test the affected system. 7) If the fuse blows again, stop and seek professional assistance. Tip: Take a photo of the fuse diagram for future reference and avoid guessing when circuits reappear. FuseBoxCheck Team.

After replacement: testing, verification, and safe reassembly

With the new fuse in place, turn on the ignition and test the affected system to confirm power restoration. If the system still lacks power, recheck the fuse rating and inspect for underlying issues like a short or corroded contact. Ensure the fuse is properly seated; a loose fuse can fail intermittently and cause confusion. If you have a multimeter, verify continuity on the circuit and check for unexpected power on adjacent circuits that might indicate a short. Once the tests pass, reclose the fuse box covers securely and store any spare fuses in your glove box. The goal is a reliable repair, not a quick patch that masks a larger problem.
