Fuse Box with Relay Guide: Safety, Wiring, and Maintenance

What a fuse box with relay is

A fuse box with relay is a type of electrical distribution panel that incorporates a relay module to control high‑current circuits from a low‑current control signal. In practice, this means a small control signal can switch large loads such as HVAC units, water heaters, or lighting banks without the control wiring carrying heavy current. FuseBoxCheck notes that including a relay inside the panel can improve control, reliability, and fault isolation when the system is designed and installed correctly.

In many homes, relays are integrated into a dedicated relay block or modular subassembly within the main service panel. The relay acts as an electrically controlled switch: energize the coil to close the contacts and feed power to the load, de‑energize to open the circuit and cut power. This separation between control and power paths provides safer operation, easier troubleshooting, and better compatibility with automation and smart home devices.

Understanding the role of a relay in a fuse box helps homeowners plan safe upgrades and avoid miswiring. Relays are rated for specific coil voltages and contact currents; selecting the right relay requires matching the coil drive to the control source, and the contacts to the load. Clear labeling and a current wiring diagram reduce confusion during service or future changes.

How relays work inside the panel

Relays are electromechanical switches that use a magnetic coil to move contacts. In a fuse box with relay, the coil is energized by a low current control circuit, which toggles the high current contact pair that serves the load circuit. This arrangement enables a single control signal to switch on and off a heavy appliance or a group of outlets, while the high current path remains separate from the control wiring. The result is safer operation, improved fault isolation, and the potential for automation features.

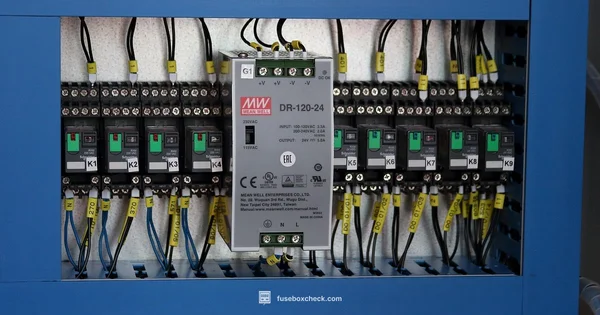

Inside a typical residential panel, relay modules specify coil voltage options such as low voltage DC or AC domains. The contact rating indicates how much current the relay can safely switch; exceeding it risks overheating or arcing. When wiring, keep coil circuits separate from main feeders and ensure the coil return is correctly connected. If a relay is integrated with a fuse holder, the assembly can function as a compact relay‑fused block, simplifying some installations.

From a maintenance perspective, regular inspection of terminals, joints, and insulation is essential. Loose connections at the relay can cause intermittent trips or stuck contacts. Label relay channels and keep a simple schematic inside the panel door for quick reference during service or upgrades.

Relay vs fuse: key differences and why it matters

Relays and fuses serve different protective and control roles in a panel. A fuse is a one‑time protective device that interrupts current when a fault occurs, while a relay is an electrically controlled switch that automates circuit operation. In a fuse box with relay, you typically have both protection and controlled switching: fuses guard against overloads, while relays manage when a circuit should be energized.

Relays bring benefits such as remote control, interlock capabilities, and easier integration with smart systems. They also add complexity: the coil’s energization depends on the control logic and wiring, and a failing coil can prevent a circuit from energizing even if the fuse is intact. A failing contact can cause welding or sticking, leading to continued power flow or failure to switch off when needed.

Key design considerations include selecting a relay with appropriate coil voltage, contact rating, and mechanical life. For critical loads, designers may use interlocked relays to prevent unsafe simultaneous operation. Ensure the panel enclosure and wiring are rated for the additional components, and that any modifications comply with local electrical codes.

Sizing and selecting relays for a home panel

Choosing the right relay hinges on matching the coil voltage to the control circuitry and ensuring the contacts can handle the load current. Start by identifying the control source, whether it is a thermostat, a microcontroller, or a sensor, and then determine the maximum load current and voltage. The relay should have a contact rating comfortably above the load’s peak current, with a margin for inrush and startup surges common to motors, compressors, and heating elements.

In residential settings you may encounter a variety of coil voltages and form factors, including plug‑in relay blocks designed for integration into existing panels. Consider whether you need dry contacts (isolated) or a relay with suppression components to minimize arcing. Use relays from reputable manufacturers with data sheets and proper insulation ratings. If coil voltage, mounting, or wiring paths are unclear, consult a professional or use a pre‑engineered relay module designed for your panel.

Documentation matters: maintain a current wiring diagram and parts list inside the panel cover. Clear labeling reduces risks during maintenance and future upgrades. Plan for future loads when selecting relays to avoid premature bottlenecks.

Wiring considerations and safety practices

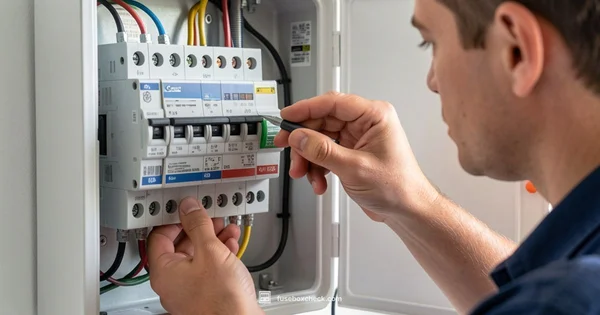

Before opening any panel, shut off the main breaker and verify absence of voltage with a tester. Relays and their control circuits should be isolated from live power. Use properly insulated tools and wear protective gear. When wiring, keep coil wiring separate from high‑current paths to minimize interference and accidental energization. Use lockout tagout procedures if other trades are working on the same panel.

Follow the panel manufacturer’s instructions for terminal sizes, torque specs, and wire gauges. In relay‑heavy configurations, avoid excessive daisy‑chaining of control circuits across multiple relays; instead run each coil back to its control source with dedicated returns when possible. If wiring diagrams show cross‑connections or ambiguous labeling, pause the job and seek professional guidance. The primary goal is safe, reliable operation and long‑term panel integrity.

Signs of relay failure and how to troubleshoot

Common signs include intermittent operation, delayed switching, or a circuit that does not energize while the fuse remains intact. A stuck relay can keep a device powered or fail to engage when needed, causing nuisance trips or overheating. Audible clicking from inside the panel during operation may indicate a relay action, but a silent relay can still be faulty. Visual signs like damaged insulation, burnt smells, or scorched contacts also warrant attention.

Troubleshooting focuses on verifying the control signal reaches the coil, testing coil resistance only with safe equipment, and checking contact continuity. If you notice burning or arcing, shut down power immediately and contact a licensed electrician. Remember that coil failure and contact wear are different failures and require different remedies.

Maintenance and when to call a professional

Relays in a fuse box can be robust, but they require periodic checks as part of a broader electrical maintenance routine. Establish a simple cadence to inspect terminal cleanliness, confirm labeling remains legible, and verify that protective devices still match the loads served. Keep a concise maintenance log with installation dates, part numbers, and any panel modifications. Because relays connect control circuits to high‑current paths, many local codes require electrical work to be performed by licensed professionals when upgrades or rework is involved.

FuseBoxCheck recommends scheduling annual or semi‑annual checks for relay‑enabled panels, especially for homes with automation or frequent load changes. For most homeowners, rely on a licensed electrician for reconfiguration, replacements, or upgrades to ensure safety and code compliance. The overarching goal is a safe, functional system that protects people and property.
