To put a breaker in a panel safely, start with the main power off and verify the area is accessible. Choose the correct amperage breaker, align it with the bus bars, and snap it into the slot. Replace the cover and test with a non-contact tester from a safe distance.
Understanding how to put breaker in box: fundamentals
Understanding how to put breaker in box begins with the basics of electrical panels and circuits. If you’re wondering how to put breaker in box, the answer starts with safety, proper breaker type, and correct placement. In this section we explain how circuit breakers and panels work together, including what bus bars are and how a breaker engages with them. You’ll learn how a properly seated breaker protects branch circuits and why mismatch or loose screws can lead to nuisance trips or heat buildup. We’ll also distinguish between single-pole and double-pole breakers, and how each serves different loads. Familiarize yourself with panel labeling, which identifies which spaces are suitable for new breakers and the amperage rating of the circuit you’re adding. By understanding these fundamentals, you reduce risk and set the stage for a correct installation.
Safety prerequisites and PPE before touching the panel
Before any work, you must prioritize safety. Start by turning off the main breaker and, if your panel supports it, applying a lockout/tagout device to prevent accidental re-energizing. Use protective gear such as insulated gloves, safety glasses, and a voltage tester to confirm there is no live energy in the enclosure. Remove any metal jewelry and create a dry, clean workspace. Ensure lighting is adequate and keep children and pets away. If you see signs of damage, corrosion, or overheating, stop and replace components or call a professional. These precautions help minimize the risk of shock, arc flash, and short circuits during the process.
Choosing the correct breaker: amperage and type
Selecting the right breaker is critical. Use the panel label to verify the acceptable amperage and type (single-pole vs. double-pole) for the circuit you’re adding. Match wire gauge to the breaker's rating, typically 14 AWG for 15A, 12 AWG for 20A, etc., and never exceed the wire’s capacity. Ensure the breaker is compatible with the panel brand and model. We emphasize avoiding aftermarket or unlisted breakers, as improper components can compromise safety and violate code requirements.
Preparing workspace and identifying slots
Clear the area in front of the panel and arrange tools within easy reach. Open the panel door and visually locate an empty position that is labeled for the proper amperage and breaker type. If you’re adding a new circuit, you may need to remove a knock-out and install a corresponding conduit or cover. Mark the circuit on the panel directory to keep future work organized. This preparation reduces the chance of misplacing circuits and ensures the replacement breaker can engage with the bus bars correctly.
How the installation proceeds (high level)
Installation is performed in a deliberate, step-by-step fashion to minimize risk. Start by verifying the power is off and the area is safe. Locate an appropriate breaker slot that matches your circuit’s amperage and type. Remove the panel cover enough to access the bus bars, but do not detach it completely unless necessary. With the panel still isolated, carefully bring the new breaker to the slot, align it with the bus bars, and press firmly until it seats. Some panels require a tightening screw on the breaker; if yours does, torque to the manufacturer’s specification. Finally, replace the panel cover, restore power, and proceed to testing in a controlled manner.
Testing and verification after installation
Once installed, turn the main power back on and test each circuit for proper operation. Use a non-contact voltage tester to confirm power is present only in expected areas. Check that the new breaker trips properly when a simulated fault is introduced (do not deliberately create dangerous conditions). Label the circuit in the panel directory, and ensure the cover is secured. If anything feels “off”—unusual heat, burning smell, or discoloration—shut off power immediately and consult a professional.
Common mistakes and how to avoid them
Common mistakes include using the wrong amperage, forcing the breaker into a misaligned slot, or failing to properly reseal the panel. Never work with a live panel, never touch both terminals, and never wrap electrical tape around moving parts. Always verify alignment of the breaker with the bus bars and ensure screws are tight. When in doubt, pause and consult the panel’s manual or a licensed electrician.
What to do next and ongoing safety
For ongoing safety, schedule periodic checks, label updates, and keep a log of new circuits. Ensure all breakers are clearly labeled and the panel is clean and compliant with local codes. Routine maintenance reduces the risk of future faults and helps you quickly identify any changes in the electrical system. If your panel experiences frequent trips, revisit the load distribution and consider upgrading the service with professional guidance.
Tools & Materials
- Breaker (new or replacement) with correct amperage(Check labeling for amp rating and ensure compatibility with your panel.)
- Insulated screwdriver set (Phillips and flat-head)(Use insulated handles; keep tools dry and clean.)
- Non-contact voltage tester(Verify absence of live voltage before handling wires.)
- Multimeter (optional but helpful)(Useful for confirming readings if needed.)
- Insulated gloves(Protect hands against shocks; ensure gloves are rated for electrical work.)
- Electrical tape(Seal exposed conductors and secure wiring as needed.)
- Wire stripper/cutter(Prepare conductors for future connections if required.)
- Panel cover removal tool(Helpful in tight panels or recessed boxes.)
- Flashlight or headlamp(Improve visibility inside the panel.)

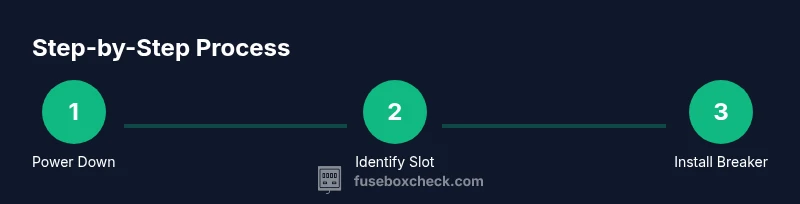

Steps
Estimated time: 20-30 minutes
- 1
Power down and verify no voltage
Confirm the main power is off at the service disconnect. Use a non-contact tester to double-check all sections of the panel are de-energized before touching any conductors or the bus bars.
Tip: Lock out the main switch if your setup supports it; document the work to prevent accidental re-energizing. - 2
Identify the correct slot and breaker type
Consult the panel label to determine which slot accepts your breaker type and amperage. Ensure the slot is not already occupied by a breaker that shares a feed with another circuit.
Tip: Avoid mixing breaker brands unless the panel manufacturer explicitly permits it. - 3
Remove panel cover and inspect bus area
Carefully remove the panel cover to expose the bus bars. Inspect for damage, corrosion, or moisture. Do not pry or force panels; a damaged bus can be dangerous to handle.
Tip: Maintain a dry work area and stand to the side to prevent accidental contact with energized parts. - 4
Seat the breaker onto the bus bars
Grip the breaker firmly and align its terminals with the bus bars. Push straight in until you hear a click or feel it seat. Do not tilt or force the breaker into place.
Tip: Ensure the breaker is fully seated at the top and bottom; mis-seated breakers are a common cause of arcing. - 5
Secure and re-close the panel
If your panel uses a tightening screw, torque it to the manufacturer’s specification. Replace the panel cover securely and ensure the directory is updated with the new circuit.
Tip: Avoid overtightening screws which can strip threads or crack the panel. - 6
Restore power and perform a test
Turn the main power back on and slowly test the new circuit using a suitable tester. Verify it trips appropriately under fault conditions and marks the circuit correctly in the directory.
Tip: Test only under controlled conditions and avoid creating real faults that could damage appliances.
Your Questions Answered
What size breaker do I need for my circuit?
Select the breaker based on the circuit's load and the wire gauge, following the panel’s labeling. Do not exceed the wire’s capacity or the panel’s listed amperage. If in doubt, consult the panel documentation or a licensed electrician.
Choose the breaker that matches the circuit wire size and panel labeling. If you’re unsure, consult the panel instructions or a licensed electrician.
Can I install a breaker without turning off the main?
No. Always shut off power at the main disconnect and verify de-energization before touching any components. This reduces shock and arc risk.
No. Power must be off at the main disconnect before you touch any panel parts.
What should I do if there’s no empty slot available?
If there isn’t an available space, you may need to reconfigure existing circuits or upgrade the panel. Do not force a breaker into a non-compatible slot.
If there’s no open slot, don’t force it—check the panel labeling or consider upgrading with professional help.
Is it safe to DIY breaker installation?
DIY can be safe with proper precautions, appropriate tools, and adherence to local codes. If you’re unsure about panel compatibility or wiring, hire a licensed electrician.
DIY can be safe if you know what you’re doing and follow safety rules. If unsure, call a licensed electrician.
What are signs of an incorrect breaker installation?
Frequent nuisance trips, warm or discolored breakers, buzzing sounds, or arcing are signs of improper installation or incompatibility. Stop and inspect or get professional help.
If you notice frequent trips or warmth, stop and get expert help.
Watch Video
Highlights
- Power down before opening the panel.
- Use the correct amperage breaker for the circuit.
- Ensure the breaker is fully seated and secured.
- Test responsibly and document the change.
