How to Remove Relay from Fuse Box: Safe DIY Guide
Learn how to remove a relay from a fuse box safely with step-by-step instructions, essential tools, and safety tips. Identification, removal, and post-removal checks.
To remove a relay from a fuse box, power down the circuit, confirm zero voltage, and carefully unplug the relay from its socket. Wear insulated gloves and use a non-conductive tool to avoid shorting adjacent components. Label the relay and note its position for reassembly, then inspect the socket for corrosion before storing the part.
Understanding the relay in a fuse box
Relays are small electrical switches that use a low-voltage coil to control a higher-current circuit. In many residential panels, relays sit inside the fuse box or in adjacent enclosures and manage loads such as heating, cooling, or lighting circuits. Knowing the role of a relay helps prevent accidental disconnections that could affect other devices. When you search for information on how to remove relay from fuse box, you’ll see guidance emphasizing safety, labeling, and verifying the exact part before you touch anything. Relays can vary in type and pin layout, so confirm the model and socket configuration before attempting removal. Always treat any exposed conductors as live until proven otherwise and double-check the panel’s labeling to avoid misidentification.
Safety-first mindset: essential precautions before you begin
Before any hardware work on a fuse box, adopt a safety-first approach. Turn off power at the main disconnect when possible, remove jewelry, and wear dry, insulated gloves. Use tools with insulated handles and keep one hand away from energized components to reduce the chance of a shock if you accidentally bridge contacts. Work in a dry environment and ensure your footing is solid. If you’re unsure about the panel’s layout or the relay’s function, pause and consult a professional. Safety is non-negotiable when working with electrical panels.
Tools, materials, and prep before you begin
Having the right tools minimizes the risk of damage and makes the removal smoother. You will typically need an insulated screwdriver (flat or Phillips), a non-conductive pry tool, a digital multimeter, a voltage tester, zip ties or labels, a small flashlight, and a container or bag to hold the relay. Keep a camera or note-taking app handy to document the relay’s exact location and orientation for reinstallation. A clean workspace and a clear plan help prevent mistakes and ensure you can safely reinsert the relay if needed.
Locating and verifying the relay before removal
Start by identifying the relay within the fuse box or its enclosure. Look for a modular block or a component labeled with the relay’s part number, and verify it corresponds to the circuit you intend to service. If you have a panel schematic or labeling, compare the relay’s position to the documented diagram. Use a multimeter to check whether the coil terminals show the expected resistance, which helps confirm you’re dealing with a relay rather than a fuse. Misidentifying components is a common DIY pitfall, so take time to verify before touching anything.
Removing the relay: best practices to avoid damage
Carefully loosen the relay from its socket using insulated tools, avoiding metal-to-metal contact. Grasp the relay by its body rather than the pins and pull straight out to minimize bending the pins. If resistance occurs, stop and re-check the alignment of the relay with its socket. Do not force connections that feel stuck or misaligned. After removal, inspect the socket pins for signs of corrosion, bending, or scorch marks, which can indicate past heat or moisture exposure. Treat any corrosion with proper cleaning or professional attention.
Aftercare: testing and reassembly considerations
Before reassembly or storage, test the surrounding circuitry with a multimeter to ensure there are no short circuits. If you plan to reinstall later, keep the relay in a labeled container and photograph its orientation to aid reinstallation. When finished, re-energize the panel carefully and test the affected circuit using a low-power load before fully restoring operation. If any abnormal smells, heat, or buzzing appear after re-energizing, shut the panel immediately and consult a licensed electrician.
Tools & Materials
- Insulated screwdriver(Flat or Phillips head; rated for electrical work)
- Non-conductive pry tool(Plastic or nylon preferred; plastic minimizes arcing)
- Digital multimeter(Fresh batteries; check coil resistance if possible)
- Voltage tester(Non-contact or contact type for confirmation)
- Labeling supplies(Tape or tags to mark relay position and wires)
- Flashlight(Hands-free light helps visibility inside the panel)
- Storage container(Small bag or container to keep the relay and screws organized)

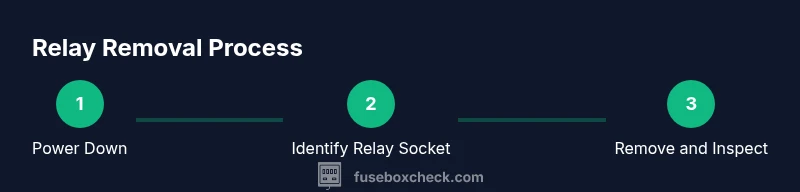

Steps
Estimated time: 45-75 minutes
- 1
Power down and verify
Shut off power at the main breaker and double-check there is no voltage on the target circuit using a voltage tester. This confirms you can work safely without electrical pressure present.
Tip: Test both hot and neutral paths to rule out partial energization. - 2
Identify the relay and its socket
Locate the relay module by cross-referencing the panel diagram or label. Confirm the relay’s position and the corresponding circuit before proceeding.
Tip: Take a photo or diagram to help with accurate reinstallation. - 3
Prepare and label connections
Label each wire or connector with tape so you know where it belongs when you reinsert the relay. Keep wires organized to avoid mix-ups.
Tip: Use color-coded labels where possible for quick reference. - 4
Remove the relay
Gently wiggle the relay from its socket with an insulated tool, pulling straight out to avoid bending pins. Do not force if resistance is felt.
Tip: Apply steady, even pressure rather than quick tugs. - 5
Inspect the socket and relay
Check the socket pins for corrosion, scorching, or bending. Inspect the relay contacts for wear and confirm wiring integrity before storage.
Tip: If you see damage, don’t reuse the relay; replace or consult a professional. - 6
Document and store
Record the relay’s orientation and keep it in a labeled container. When ready to reinstall, refer to your notes and photos.
Tip: Keep relays in a dry, controlled environment away from moisture.
Your Questions Answered
Is it safe to remove a relay from a fuse box myself?
With proper precautions and de-energized circuits, it is generally safe for homeowners to remove a relay. If you’re unsure, pause and consult a professional.
If you’re unsure, pause and consult a professional.
Do I need to shut off the main breaker to remove a relay?
Yes. Always shut off power at the main breaker before accessing the fuse box. Re-energize only after you’ve completed work.
Yes. Always shut off power at the main breaker before accessing the fuse box.
Will removing a relay affect other circuits?
Relays typically control a single circuit; removing one relay should not impact unrelated circuits, but confirm with the panel layout.
Relays usually control one circuit; removing one relay should not affect other circuits.
What tools do I need for relay removal?
You’ll need an insulated screwdriver, a voltage tester, pliers, a flashlight, and labels to mark connections.
You’ll need insulated tools, a voltage tester, and labels to mark connections.
When should I call a professional?
If the panel is unfamiliar, the relay is buried, or you see damage, contact a licensed electrician.
If you’re unsure or see damage, call a licensed electrician.
Watch Video
Highlights
- Power down before touch, every time
- Verify relay identity to avoid mistakes
- Use insulated tools and label everything
- Inspect sockets for wear or corrosion
