How to Remove a Car Fuse Box: Safe DIY Guide & Tips
Learn how to safely remove a car fuse box with step-by-step guidance, essential safety checks, and reassembly tips from FuseBoxCheck. Practical, expert DIY care for car electrical work with planning, tools, and safety best practices.
By the end of this guide you will safely remove a car fuse box for diagnostics or relocation. Before you start, you’ll need basic hand tools, a service manual or wiring diagram for your model, and a fully off vehicle. Follow step-by-step safety checks, disconnect the battery, and label every connector to avoid miswiring later.
how to remove fuse box from car
Removing a fuse box from a car is sometimes necessary for deep diagnostics, relaying or harness inspections, or to relocate the unit for easier servicing. According to FuseBoxCheck, a careful plan based on your vehicle’s service manual or wiring diagram is the foundation of a safe operation. The fuse box houses fuses, relays, and wiring that control critical systems like lighting, charging, and ignition. Mishandling can cause short circuits, blown fuses, or costly damage. Before you begin, verify you have the appropriate model-specific guidance and a clean workspace. Consider whether the task truly requires removal; many issues can be addressed by replacing a single fuse or relay without taking the box out. If removal is necessary, proceed deliberately, document every step, and keep track of components so you can reassemble accurately.
Safety first: hazards, PPE, and battery handling
Electrical work in a car carries risks of shock, arcing, or accidental airbag deployment if components are disturbed near the airbag system. Always wear safety glasses and cut-resistant gloves, and work in a dry, well-lit area. Start by ensuring the ignition is off, the key is removed, and the battery is disconnected to prevent accidental energization. If your vehicle has a smart key or drain features, check for residual power in the memory or fuse lines and wait a moment after disconnecting. Keep a can of electrical contact cleaner and a clean workspace to prevent dirt from entering connectors. By following these precautions, you reduce the chance of damage and injuries during removal.
Fuse box design and common layouts in modern cars
Most modern cars have at least two fuse boxes: an engine bay box and an interior cabin box. Some models place a smaller secondary box under the dash or in the kick panel. The engine bay box often carries high-current fuses and relays for the starter, alternator, and charging circuits, while interior boxes manage cabin circuits, lighting, and electronics. Relays may be integrated with the fuse block or mounted nearby. Understanding the layout helps you anticipate what you may need to disconnect and which connectors are essential to label for reinstallation. Always consult your service manual for the exact fuse map and connector locations for your vehicle.
Identifying fuses, relays, and connectors you'll touch
Within the fuse box, fuses and relays are typically arranged in a grid or ribbon layout. Fuses are color-coded by amperage and labeled with circuit names. Relays are larger blocks that switch power to higher-current devices. Before touching anything, inspect the board for corrosion, bent pins, or melted plastic. Label each connector with masking tape or a quick-dry marker, and photograph connections from multiple angles. If you’re unsure about a specific wire, trace it back to the device it powers and confirm it corresponds to the wiring diagram. Handling the box with a non-conductive tool helps minimize the risk of accidental shorts.
High-level planning and pre-removal checks
Create a removal plan that prioritizes safety and reversibility. Decide which screws, clips, and mounting brackets hold the fuse box in place, and identify any components that must remain connected (like power steering or ignition lines) even if the box is loosened. Decide whether you’ll disconnect the battery first or pull the box after loosening the mounting hardware. Inspect the surrounding area for sharp edges and ensure you have a stable surface to set the box on once removed. This planning minimizes surprises and makes reinstallation straightforward.
Aftercare: testing, battery reconnection, and cleanup
After reinstallation, reconnect the battery and clear any diagnostic codes if you previously retraced circuits. Re-seat all connectors, ensure fuses are correctly seated, and reattach the fuse box cover. Turn on the ignition to verify basic systems (lights, ECU communication, and dash indicators) operate without error. Finally, tidy the work area, store screws in a labeled tray, and dispose of any damaged components per local regulations. A careful post-check minimizes the chance of a return trip to the workshop.
Tools & Materials
- Socket wrench set (metric)(Include 8mm-14mm sockets for mounting bolts)
- Screwdrivers (Phillips and flat-head)(Flat-head and Phillips #2 common sizes)
- Plastic trim removal tools(Non-marring to protect panels)
- Electrical contact cleaner(Use to clean corrosion, do not overspray electronics)
- Multimeter or test light(For verifying disconnected circuits and diode paths)
- Safety gloves and eye protection(Insulated gloves; impact-rated safety glasses)
- Magnetic parts tray or small labeled containers(Keeps screws organized during removal)
Steps
Estimated time: 40-75 minutes

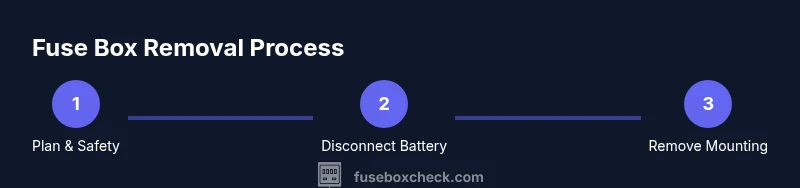

- 1
Prepare and assess the vehicle
Park on a flat, level surface and engage the parking brake. Gather the service manual or wiring diagram for your model and inspect the fuse box area for accessibility. Confirm there are no recalls or airbags service notes that apply to your vehicle’s electrical system, and plan your workspace.
Tip: Take a few photos of the fuse box layout before you touch anything. - 2
Disconnect the battery
Power off the vehicle completely and remove the key. Disconnect the negative battery terminal first, then the positive, using insulated tools. Wait 60 seconds to allow residual capacitors to discharge before touching any wiring.
Tip: Keep track of the order of disconnection and reattachment to avoid polarity mistakes. - 3
Access the fuse box cover
Use the appropriate screwdriver to unclip or remove the fuse box cover or panel. Do not pry aggressively; note how clips hold the cover in place and set the cover aside in a safe, padded area. Inspect the cover for labels and a fuse map.
Tip: If a cover is stubborn, gently loosen edges with a plastic pry tool to avoid cracking the panel. - 4
Label and disconnect wiring harnesses
Label each connector with color-coded tape and document its position. Gently pull connectors straight out, not at an angle, to avoid pin or socket damage. Use a small container or tray to keep connectors separate.
Tip: Take a high-resolution photo from multiple angles to aid reinstallation. - 5
Remove mounting hardware and free the fuse box
Loosen and remove mounting bolts or clips that secure the fuse box to its bracket. Support the box as you release it to prevent wire pull on the harness. Lower the box slowly and place it on a protective surface to prevent damage to wires.
Tip: Do not yank harnesses; check for additional hidden fasteners behind cables or brackets. - 6
Inspect, store, and plan reinstallation
Check for signs of corrosion or damaged pins on connectors. Store all screws and clips in labeled containers. Plan the reverse steps for reinstallation, ensuring the fuse map is accessible for reassembly.
Tip: Keep a small notebook of the steps you took to simplify future maintenance or reassembly.
Your Questions Answered
Is DIY fuse box removal safe?
DIY fuse box removal can be safe if you follow rigorous safety steps, use proper tools, and refer to the vehicle’s service manual. Avoid work on live circuits and be aware of airbag and anti-theft system considerations. If in doubt, seek professional help.
DIY fuse box removal is possible with precautions, but if you're unsure, contact a professional to avoid injury or damage.
Do I need a service manual for removal?
Yes. A service manual or wiring diagram provides fuse maps, connector layouts, and model-specific cautions that prevent miswiring and component damage during removal.
A service manual is highly recommended to map fuses and wiring correctly.
Will removing the fuse box affect airbags or anti-theft systems?
Removing the fuse box may impact electronic systems if you disconnect the wrong circuits, but airbags themselves are typically isolated from fuse blocks. Reconnecting correctly and following the manual minimizes risk; some anti-theft modules may require reinitialization by a professional.
Airbags are usually separate from the fuse box, but follow the manual because some anti-theft systems need professional handling.
What tools are essential for fuse box removal?
A basic socket set, screwdrivers, plastic pry tools, electrical cleaner, a multimeter or test light, gloves, and eye protection are essential for safe removal.
You’ll need basic hand tools, electrical tester, and safety gear.
What if the fuse box is hard to access or in a tight space?
In tight spaces, work slowly with slim tools and check for hidden fasteners. Take extra care not to damage adjacent wiring or panels, and consider freeing the box in stages.
Tight spaces require patience and careful tool handling to avoid damage.
How should I reinstall the fuse box after removal?
Reinstall by reversing the removal steps: reconnect each harness, secure mounting hardware, replace the cover, and verify operation with a cautious power-up test. Double-check all connections before closing panels.
Follow the reverse order of disassembly and test the system before finalizing.
Watch Video
Highlights
- Disconnect the battery before any fuse box work.
- Label and document every connection to ensure correct reinstallation.
- Use non-marring tools to prevent panel damage.
- Refer to the vehicle’s service manual for model-specific cautions.
