i20 fuse box guide: inspect, test, and troubleshoot safely
A complete, step-by-step guide to locating the i20 fuse box, identifying blown fuses, and safely troubleshooting electrical issues in your Hyundai i20 with practical tips and tools.
This guide helps you locate the i20 fuse box, identify a blown fuse, and safely replace it. Before you start, gather basic tools and safety gear, then verify circuits with a multimeter. Follow the step-by-step process to diagnose common issues and restore electrical function without damaging components.
What the i20 fuse box does and why it matters
The i20 fuse box is a compact distribution hub that protects electrical circuits in your Hyundai i20. Each fuse acts like a tiny safety valve, interrupting current if a short or overload occurs. Understanding the i20 fuse box helps you prevent electrical damage, locate faults quickly, and avoid unnecessary part replacements. According to FuseBoxCheck, a well-identified fuse box location and correct fuse ratings dramatically reduce DIY electrical risk while improving troubleshooting accuracy. This knowledge is essential for homeowners and DIY enthusiasts who want to maintain vehicle electronics without guesswork. In this guide, you’ll learn how fuses are organized, what common circuits rely on them, and how to approach a blown fuse with confidence.
Locating the fuse box in Hyundai i20 models
The i20 typically features more than one fuse box: an interior fuse panel (often behind a side panel or under the dash) and an under-hood fuse/relay box. Location can vary by model year and trim. Start by consulting your owner’s manual and visually inspecting the dash area near the left footwell or glove compartment for a removable fuse box cover. If you don’t see a fuse box there, check under the hood near the battery or near the radiator support. Good illumination and a clean work area help prevent mix-ups when identifying the correct box for a given circuit.
Understanding fuse labeling and fuse types
Fuse labels provide critical information about which circuit they protect and the amperage rating. In most cases, the diagram on the fuse box cover or inside the manual lists circuit names and corresponding fuse slots. When you pull a fuse for inspection, note its color and the visible break in the conductor. Do not rely solely on color—use the label and, if in doubt, verify with the multimeter or the owner’s manual. Fuse types can vary; some circuits use blade fuses, while others use mini or maxi fuses. Always replace a blown fuse with one of the same type and rating to maintain circuit protection.
Safety first: prerequisites before touching the fuse box
Electrical work on a vehicle carries risk of shock or short circuits. Begin by turning off the ignition and removing the key. If you can access the battery safely, disconnect the negative terminal first to minimize the chance of arcing. Wear eye protection and insulated gloves, and keep a dry work environment. Never work on a live circuit with metal jewelry or tools that can bridge contacts. If you’re unsure about any step, pause and seek professional help.
Common symptoms and smart checks for i20 fuse issues
Blown fuses can cause dim lights, non-working accessories, or warning indicators. Before blaming components, visually inspect the fuse for a melted element or a broken wire. Use a multimeter to test continuity across the fuse holder if needed. If you find a fuse that looks intact but the circuit remains non-functional, there may be a short, a wiring fault, or a failing relay. Always verify the circuit with the vehicle’s electrical diagram and cross-check related fuses to ensure you aren’t chasing a symptom.
Maintenance and prevention: keep the i20 fuse box in good shape
Regularly inspect fuse holders for corrosion or loose connections. Clean the area with a dry brush or contact cleaner designed for electronics, but avoid sprays that could seep into sensitive areas. When replacing fuses, use exact ratings and ensure the fuse seats fully in the holder. Keep a small supply of spare fuses of common ratings and store them in a labeled container. Finally, create a quick-access fuse diagram in your glove box so you can identify circuits without hunting for the manual.
When to seek professional help
If a fuse repeatedly blows after replacement, or if you notice melted wires, burning odors, or frequent non-typical electrical behavior, stop using the affected circuit and consult a licensed technician. Repeated fuse failures can indicate a short, a damaged wiring harness, or a failing relay, which require more advanced diagnostic tools and expertise. FuseBoxCheck recommends pairing DIY checks with a professional inspection when symptoms persist or safety is uncertain.
Tools & Materials
- Digital multimeter(For continuity and voltage checks on circuits)
- Fuse puller or needle-nose pliers(Safely extract fuses without damaging neighbors)
- Replacement fuses (assorted ratings)(Have a few common ratings on hand)
- Flashlight or headlamp(Illuminate dark fuse boxes)
- Insulated gloves(Protection when working near terminals)
- Owner’s manual or fuse box diagram(Identify circuits and correct fuses)
- Screwdriver set (plastic), trim removal tool(Access covers without marring panels)
- Non-contact voltage tester(Quickly verify power status)

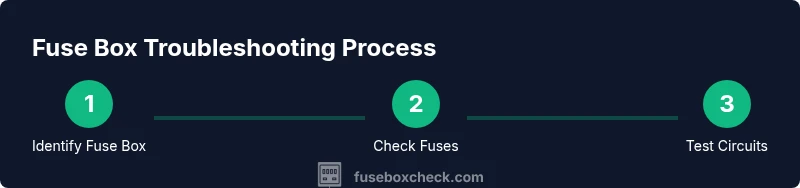

Steps
Estimated time: 45-60 minutes
- 1
Prepare and power down
Ensure the ignition is off and, if possible, disconnect the negative battery terminal to minimize shocks and arcing. This step prevents accidental short circuits while you work. Take a moment to review the manual and plan which fuse box to access first.
Tip: Wear insulated gloves and keep tools away from metal surfaces while battery is disconnected. - 2
Identify the correct fuse box
Consult the owner’s manual or fuse diagram to locate the interior and under-hood fuse boxes. Verify the specific circuit you’ll inspect matches the suspected problem area before removing any fuses.
Tip: Label the box you’re working in and double-check the circuit name on the diagram. - 3
Remove the suspected fuse
Use a fuse puller or insulated pliers to lift the fuse straight out of its slot. Keep track of its position to avoid mixing with others and check the adjacent fuses for damage.
Tip: Do not force; if the fuse is stubborn, stop and reassess instead of bending the fuse holder. - 4
Inspect the fuse
Visually inspect for melted glass or a broken conductor. If unsure, test continuity with the multimeter while the circuit is still disconnected. Compare the fuse to a known-good one from your spare set.
Tip: A good-looking fuse can still be faulty; always verify with a meter. - 5
Replace with the correct fuse
Install a fuse of the exact type and amperage rating. Push it firmly into place until it seats fully. Do not substitute a higher rating to bypass protection.
Tip: If you don’t know the rating, defer to the diagram or manual rather than guessing. - 6
Reconnect power and test
Reconnect the battery negative terminal, start the car, and recheck the affected circuit. Verify whether the function returns and ensure no other instruments show warnings.
Tip: Test the exact function (e.g., interior light, horn) to confirm full restoration. - 7
Diagnose persistent fuse blowing
If the fuse blows again, there may be a short, overheating wiring, or a faulty relay. Stop using the circuit and seek professional help to avoid further damage.
Tip: Document symptoms and timeline for the technician; this speeds up diagnosis.
Your Questions Answered
Do I need to disconnect the battery before replacing a fuse in the i20 fuse box?
Yes. Disconnecting the negative terminal reduces the risk of shorts during fuse replacement. Always ensure the ignition is off and avoid metal jewelry near exposed terminals.
Yes, disconnect the negative terminal before replacing a fuse to minimize the risk of shorts.
How can I tell if a fuse is blown in the i20 fuse box?
Visually inspect the fuse for a melted element or broken conductor. If unclear, test continuity with a digital multimeter while the circuit is disconnected.
Look for melted glass or a broken conductor. If uncertain, test with a multimeter.
What tools do I need for i20 fuse box troubleshooting?
You’ll want a fuse puller, a digital multimeter, assorted replacement fuses, a flashlight, and the vehicle’s manual or fuse diagram.
A fuse puller, multimeter, spare fuses, and a light source will cover most tasks.
Why does a fuse keep blowing after replacement?
A repeated blow usually points to a short, overload, or wiring fault in the circuit. Stop using that circuit and have it diagnosed to prevent further damage.
If it blows again, there’s likely a short or overload in that circuit.
Where is the interior fuse box located in most Hyundai i20 models?
Typically behind the glove box or under the dash near the steering column. Check the manual or diagram for your exact year and trim.
Usually behind the glove box or under the dash; look it up in your manual.
Can I drive if the fuse blows on one circuit?
If essential functions are affected (lights, safety features), avoid driving until a repair is made. Assess risk and consult a professional if unsure.
If critical systems are affected, don’t drive until it’s repaired.
Watch Video
Highlights
- Identify the correct fuse and circuit before removing anything.
- Always power down and protect yourself with PPE.
- Replace only with the same fuse type and rating.
- Repeated fuse blows warrant professional diagnosis.
- Maintain a labeled fuse diagram for future quick checks.
