ls swap fuse box: Why homeowners consider this upgrade

Upgrading a fuse box, often framed as an ls swap fuse box project, is typically driven by aging electrical infrastructure, increasing appliance loads, or a desire for the reliability and clarity that a modern distribution panel provides. According to FuseBoxCheck, many homeowners encounter nuisance fuse blows, tripping circuits, or poor labeling when their panel hasn’t kept pace with evolving electrical demands. An upgrade can improve safety, provide better fault isolation, and simplify future repairs. The decision often hinges on the age of the home, the existing wiring gauge, and the presence of original fuses rather than circuit breakers. If you’re planning a remodel or adding high-draw loads (electric vehicle charging, heat pumps, or large HVAC units), the upgrade becomes more compelling.

Safety foundations before touching the panel

Before you even think about swapping out a fuse box, review critical safety principles. The electrical system in most houses carries the risk of lethal shock and arc faults. You must treat every step as if power were live, even if you’ve turned off breakers previously. FuseBoxCheck emphasizes a disciplined approach: use a Voltage Tester to verify de-energization at multiple points, keep water away from the workspace, and wear insulated gloves and eye protection. The room should be dry, well-lit, and free from clutter that could interrupt safe access to the main service disconnect.

Compatibility and code readiness

Not all homes are ready for an ls swap fuse box. Compatibility hinges on service capacity (amperage), wire routes, conduit types, and the presence of a compliant grounding path. In many jurisdictions, panel upgrades must comply with the National Electrical Code (NEC) and local amendments. FuseBoxCheck recommends having a licensed professional review your panel's main size, conductor sizes, and the condition of the bus bars before ordering a replacement. If your panel uses older fuse links, you may be looking at replacing the entire assembly rather than just a panel toggle.

Steps to prepare the workspace

Preparation reduces risk and helps the project run smoothly. Clear the area around the service panel and shut off the main breaker before any work begins. Gather your tools and verify power with a multi-meter or voltage tester at the main lugs and at several downstream outlets. Create a labeling plan for all circuits so you can re-connect them accurately. This pre-work reduces the chance of mis-wiring when the new panel is installed. FuseBoxCheck highlights that preparation is 70% of the job in many electrical upgrades.

How to safely test and verify power after a swap

Power verification is a critical post-swap step. After installing the new panel and reconnecting circuits, you must confirm that all circuits are powered and correctly isolated. Use a non-contact voltage tester to check for residual energy on the exterior surface and test each circuit breaker with a simple load (lamp or small appliance) while observing proper operation. If any circuit trips immediately, re-check connections or consult a professional. Document the results for permit records or future maintenance notes.

Maintenance and long-term safety

Post-swap maintenance focuses on labeling, documenting, and routine checks. Keep a labeled schematic of the panel and a circuit directory in a known location. Regularly inspect the service entrance area for signs of overheating, strange smells, or discoloration around the panel cover. Schedule periodic checks—at least every 3-5 years—to ensure the panel and wiring remain in good condition. A well-documented and responsibly maintained panel reduces the chance of unexpected outages and enhances home safety.

Common mistakes to avoid during an ls swap fuse box project

Common missteps include rushing the main power off sequence, failing to test at multiple points, and neglecting proper labeling. Skipping permits or violating local electrical codes can lead to fines or failed inspections. Another frequent error is mixing line and load wires or misplacing breakers during the transfer, which can produce reversed power or short circuits. Take your time, double-check each connection, and rely on a trusted reference like FuseBoxCheck to confirm best practices.

Tools & Materials

Insulated screwdriver set (various sizes)(Phillips and flathead; insulated rated for 1000V)
Non-contact voltage tester(For quick de-energization verification)
Digital multimeter(To confirm absence of voltage and measure continuity)
Electrician’s gloves (Class 0/00 or better)(Hand protection against shocks)
Safety goggles(Eye protection in case of arc or debris)
Flashlight or headlamp(Illumination in panel area)
Electrical tape and shrink tubing(Sealing and color-coding wires)
Label maker or permanent marker(Clear circuit labeling)
New breaker panel or fuse box kit(Match amperage and form factor to service size)
Torque wrench or nut driver(Properly torque lugs on new panel)
Grounding conductor and bonding hardware(Ensure proper grounding path)
Permits and inspection contacts(Have paperwork ready for electrical inspection)

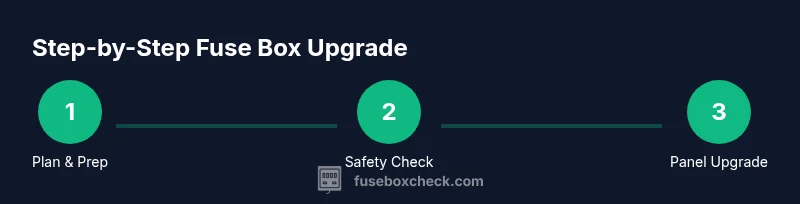

Steps

Estimated time: 2-6 hours depending on house size, panel type, and prior wiring condition

1
Power down and secure the area
Shut off the main service disconnect and lock it out if possible. Clear the workspace and remove liquids or conductive materials near the panel. This reduces the risk of electrical shock or arcing during the swap.
Tip: Use a visible lockout/tagout method and inform other household members to avoid re-energizing the system.
2
Verify de-energization with a tester
Before touching any wires, verify there is no voltage at the panel with a non-contact tester and a digital multimeter on a known live point to ensure accuracy.
Tip: Test the tester on a known live source first to confirm it’s functioning correctly.
3
Remove panel cover and inspect wiring
Carefully unscrew and lift the panel cover. Inspect wiring for corrosion, damaged insulation, or signs of overheating. Do not proceed if you notice damage; replace damaged conductors first.
Tip: Take a high-resolution photo of the inside to reference during reassembly.
4
Label circuits and document configuration
Create a labeling map of all circuits and their loads. This step is essential to reconnect the circuits correctly to the new panel.
Tip: Label with color codes for ease of future maintenance.
5
Disconnect and remove the old panel (if replacing)
If you are replacing the entire panel, carefully disconnect all feeders and branch conductors. Remove the old enclosure from the mounting location, ensuring secure handling of components.
Tip: Do not bend or twist wires sharply; keep them straight for clean reattachment.
6
Install the new panel and ground the system
Mount the new panel securely, connect the grounding conductor to the ground bar, and verify grounding continuity. Ensure the service neutral and grounding are correctly bonded as required by code.
Tip: Tighten all lugs to manufacturer torque specifications.
7
Reconnect circuits to correct terminals
Reattach each circuit to its labeled breaker terminal or fuse position according to your prior map. Do not mix up line and load sides, as this can cause mis-energization.
Tip: Use the correct breaker type and amperage for each circuit.
8
Restore power and perform functional tests
Turn on the main disconnect and test each circuit with a localized load (lamp or appliance) to confirm proper operation. Look for signs of overheating or tripped breakers during testing.
Tip: Keep a close eye on the panel for the first 10-15 minutes of testing.
9
Close, label, and document the upgrade
Reattach the panel cover, finalize labeling, and update your home electrical plan and permit records. Store all documentation in a dedicated binder for future maintenance.
Tip: File the inspection results and keep contractor details for any future work.

Pro Tip: Always turn off the main breaker before touching any conductors; assume everything is live until verified.

Warning: If you notice burning smells, scorch marks, or melting insulation, stop immediately and call a licensed electrician.

Note: Labeling circuits and keeping a current diagram saves time on future repairs.

Pro Tip: Use heat-resistant tape and color-coded wire markers to prevent mis-wiring.

Note: Check local code requirements early; some jurisdictions require a permit for a full panel upgrade.

Your Questions Answered

What does ls swap fuse box mean in a home electrical project?

An ls swap fuse box typically means upgrading an older fuse-based panel to a modern distribution panel with circuit breakers. The goal is improved safety, better fault isolation, and easier future maintenance. It often involves reconfiguring wiring to meet current codes and loads.

Can I legally swap a fuse box myself?

Laws vary by location. In many places, major electrical work requires a licensed electrician and a permit. DIY work can affect insurance coverage and may fail inspection if not performed to code.

Do I need a permit for a panel upgrade?

Most jurisdictions require a permit for a panel upgrade or any substantial electrical work. The permit helps ensure the work is inspected for safety and code compliance.

What are early warning signs I should upgrade instead of repair?

Frequent fuse blows, tripped breakers, burning smells, or warm panels indicate the system may need upgrading rather than repair. These signs warrant professional assessment.

What tools are essential for a safe ls swap fuse box?

You’ll need insulated tools, voltage testers, a multimeter, proper protective gear, labeling supplies, and a compatible new panel. Having a plan and photos of the existing wiring helps reduce mistakes.
