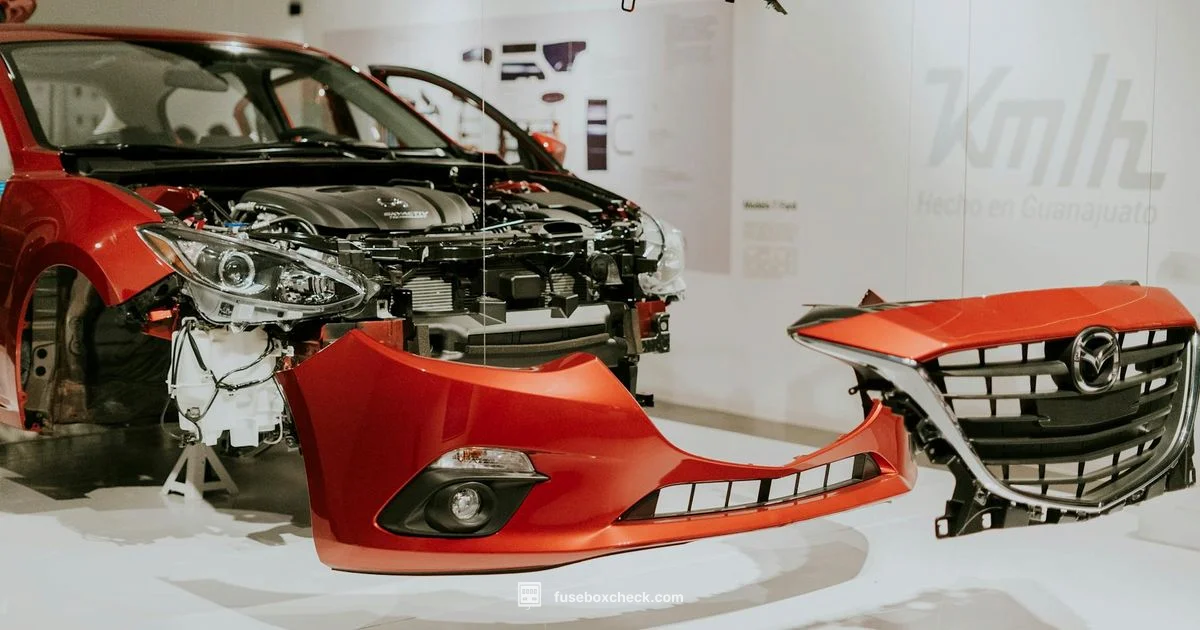

Mazda Fuse Box Guide - FuseBoxCheck — Photo by Amar Preciado via Pexels

Quick AnswerSteps

This guide helps you locate the Mazda fuse box, identify and inspect fuses, replace a blown fuse with the correct amperage, and test circuits afterward. You’ll learn safe handling, essential tools, and signs you should seek professional help. By following these steps, you’ll protect your vehicle’s electrical system and reduce the risk of fire or damage.

Mazda fuse box basics

The Mazda fuse box is a compact electrical hub that protects circuits and powers accessories. Understanding how it functions helps you diagnose problems safely and prevent further damage. According to FuseBoxCheck, a fuse box acts like a safety valve: if a fault draws too much current, the fuse melts and interrupts the circuit before wiring overheats. In a Mazda, you’ll encounter blade fuses of varying amperage along with similar protective devices. Most common accessories—headlights, infotainment, and climate control—are wired through dedicated fuses. When a fuse blows, you’ll typically notice a single non-working feature or a dim instrument panel. Always replace with the same amperage rating; using a higher rating can mask a fault and create a fire hazard. If you’re unsure, pause and consult the owner’s manual, or contact a qualified technician.

tip96typoActionsAwareNoteDrawnKeepNote:

Tools & Materials

Fuse puller(A non-metal tool helps remove fuses safely without bending the fuse or damaging sockets)
Replacement fuses(Have common Mazda fuse ratings on hand (e.g., 5A, 10A, 15A, 20A, 30A))
Multimeter or continuity tester(Used to verify a blown fuse or a suspected short circuit)
Safety gloves(Protect hands from sharp edges and hot surfaces)
Flashlight or headlamp(Illumination for dark under-dash or engine bay areas)
Owner’s manual(Locate fuse box diagrams and ratings specific to your model)
Non-conductive tools(Removable tools to avoid accidental shorts)

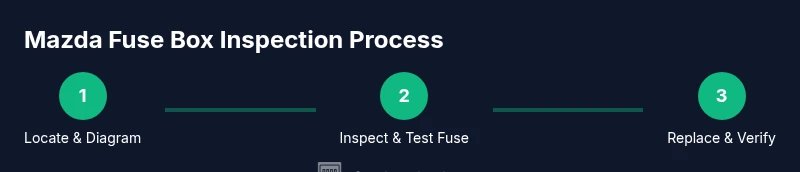

Steps

Estimated time: 30-45 minutes

1
Locate the fuse box and check the diagram
Turn off the ignition and remove the key. Open the fuse box cover and read the diagram inside or on the lid. The diagram shows which fuse protects each circuit and its amperage. If the model has multiple fuse boxes (under hood and under dash), verify the correct box before testing.
Tip: Always start with the fuse box that serves the malfunctioning system to avoid unnecessary checks.
2
Inspect the fuse visually or with a meter
Remove the suspected fuse using the fuse puller. Hold it up to light; a blown fuse will have a broken metal strip or a blackened appearance. If available, use a multimeter set to continuity to confirm a break in the circuit.
Tip: If you must test with a meter, ensure the meter leads are clean and the car is off to prevent false readings.
3
Replace with the same amperage rating
Insert a new fuse with the exact amperage rating listed on the diagram. Do not substitute a higher rating to bypass a problem. Re-seat firmly in the socket and ensure the fuse sits level.
Tip: Avoid using makeshift substitutes like wire bits—these create hidden hazards.
4
Reclose the cover and test the circuit
Restore battery connection if you disconnected it, then turn on the ignition and test the affected function. Check each related feature to confirm proper operation without creating new issues.
Tip: If the feature remains non-functional after replacement, there may be a short or relay fault.
5
Check for overheating or signs of wear
Feel the fuse box area for warmth after testing; an unusually warm fuse box can indicate an overloaded circuit or a loose connection. Inspect nearby wires for damage.
Tip: Do not touch hot components; allow the area to cool before handling again.
6
Document and store spare fuses
Record the fuse ratings you’ve used and keep a small assortment in the vehicle. This helps you respond quickly if another fuse blows, reducing downtime.
Tip: Label the storage container by rating to speed future replacements.

Warning: Never replace a blown fuse with a higher amperage to hide a fault; this can cause wiring damage or fire.

Pro Tip: Keep a small fuse kit in your car with common ratings for quick fixes.

Note: Always disconnect the battery before handling under-dash fuses to avoid shocks or shorts.

Warning: If you smell burning plastic or see melted plastic near the fuse box, stop and seek professional help.

Your Questions Answered

Where is the Mazda fuse box typically located?

Most Mazda models have a fuse box under the hood and another under the dash on the driver’s side. Some models also place a small panel in the trunk for specific circuits. Check the owner’s manual for model-specific locations and fuse diagrams.

Can I replace a fuse with a higher amperage if it keeps blowing?

No. Using a higher amperage fuse can allow a short circuit to overheat wires, posing a fire risk. Replace only with the rated amperage shown on the fuse panel and investigate underlying causes of repeated blows.

What should I do if a fuse continues to blow after replacement?

Persistent blows suggest an underlying short or overloading circuit. Stop using the accessory, inspect wiring for damage, and consider professional diagnostics to prevent further damage.

Is it safe to work on the fuse box with the car on?

No. Work should be done with the car off and the key out, and the negative battery terminal disconnected if you’re near high-current circuits. This reduces the risk of shock or short circuits.

How can I test whether a fuse is blown without removing it?

A quick visual check can often reveal a broken strip, but a continuity tester or multimeter can confirm. Always test with the circuit de-energized first.

Are airbags or ABS fuses located in the same box as other fuses?

Some vehicles place critical safety system fuses in the same box, but the specific layout can vary. Always consult the owner’s manual to locate safety-system fuses and handle them with extra care and caution.
