How to Fix a Car Fuse Box: A Practical DIY Guide
Learn how to safely diagnose, replace blown car fuses, and maintain your fuse box. A step-by-step, safety-focused guide with tips, visuals, and prevention strategies from FuseBoxCheck.
You will diagnose and safely fix a blown fuse in your car, restoring power to affected circuits. Start by locating the fuse box, verifying fuse ratings, and disconnecting the battery for safety. Then replace blown fuses with the correct amperage. This guide covers diagnosis, replacement, safety, and preventive maintenance.
Understanding the Car Fuse Box: Anatomy and Roles
The fuse box in your vehicle is a compact hub that protects electrical circuits by interrupting power when a fault occurs. Cars usually have a fuse box in the engine bay and one in the interior passenger area. Each fuse is rated for a specific amperage and protects a dedicated system—headlights, radio, ECU, fuel pump, or cooling fans. A blown fuse stops that circuit from drawing current, which protects wiring from overheating. According to FuseBoxCheck, understanding where fuses live and what they protect is the first step in safe DIY maintenance. The FuseBoxCheck team found that many drivers overlook the fuse diagram in the owner's manual, which leads to incorrect fuse replacements and further damage. Before you touch anything, locate the fuse box diagram, identify the circuit you’ll work on, and confirm the fuse's rating on the fuse itself. Mislabeling or replacing with the wrong rating is a common mistake that can trigger electrical faults or fire risk.
Common Electrical Symptoms That Signal Fuse Box Issues
Symptoms such as interior lights flickering, a non-working accessory, or a dashboard warning light can indicate a blown fuse. However, a single blown fuse may affect multiple items if a shared circuit is involved. In some cars, a failed fuse can also cause parasitic drain or a blown relay. When you notice one or more components failing to power on, start with a visual check and fuse pull test, not jumping straight to replacing parts. FuseBoxCheck notes that many cases begin with a fuse that has visibly melted or a corroded contact. If a fuse looks intact but the circuit still has issues, the problem might be in the relay, wiring, or a short in the harness.
Safety First: Precautions Before Working on Your Car's Electrical System
Always wear safety glasses and insulated gloves. Disconnect the negative battery cable before removing any fuse panel cover to minimize the risk of shocks or short circuits. Use insulated tools and avoid metal jewelry that could bridge contacts. Work in a dry, well-lit area and keep a fire extinguisher nearby. Do not attempt to diagnose or replace high-amperage fuses with the engine running. If you smell burning plastic, hear buzzing, or see smoke, stop immediately and seek professional help.
How Fuses Protect Your Vehicle: A Quick Refresher
An automotive fuse is a small link wired to a specific current limit. When current exceeds that limit, the fuse melts and disconnects the circuit, preventing wiring insulation from overheating. Fuses come in different ratings (usually measured in amps) and sometimes have color-coded bodies for quick identification. The fuse box also contains relays that switch larger loads; a faulty relay can mimic a blown fuse. Knowing how these components interact helps you diagnose without replacing parts unnecessarily.
Diagnosing: What to Check Before Replacing Fuses
Start by locating the fuse label and testing the fuse with a multimeter or a dedicated fuse tester. Check the circuit that powers the affected components and confirm there is power at the fuse terminal when the system should be on. Inspect the fuse socket for corrosion, bent blades, or melted plastic. If the fuse is blown, remove it carefully and compare its rating to the system's recommended amperage. If unsure, consult the owner's manual or a trusted guide like FuseBoxCheck before making replacements.
Visual Inspection: Spotting Melted Plugs, Corrosion, and Damage
Look for signs of heat damage: melted plastic tips, discoloration around the fuse socket, or a burnt smell. Corrosion on fuse contacts reduces conductivity and can cause intermittent faults. In some cases, vibration or loose connections may intermittently disconnect power even with a good fuse. Take pictures of the fuse diagram and the wiring harness connections before you disturb anything so you can restore the original layout.
Using a Multimeter to Confirm Fuse Health
Set the multimeter to the DC voltage or continuity setting and test across the fuse metal contacts. A good fuse should display continuity with the circuit in its normal state and show zero resistance. If the fuse reads open, it’s blown and must be replaced with an equal or higher-rated fuse compatible with the circuit; if the reading is inconsistent, the problem may lie elsewhere in the harness or relay. Always verify power off before inspecting.
Replacing a Blown Fuse: Step-by-Step, with Ratings
Always replace with the same amperage rating as the original. Remove the fuse, inspect socket, install new fuse, and test the circuit. After replacement, check for proper operation of all components on that circuit, and look for signs of overheating. If the fuse continues to blow, stop and reassess the system for a short, damaged wire, or a failing relay.
When to Replace the Fuse Box or Relays
Fuses and relays can fail due to age, corrosion, or overheating. If multiple circuits fail on the same area of the fuse box, or if the fuse socket shows visible damage, you may need to replace the entire fuse box or a failing relay. Consult your vehicle’s service manual and a qualified technician if the box shows signs of scorching or melted connectors.
Preventive Maintenance and Safe Storage of Spare Fuses
Keep a small, labeled fuse kit with spare fuses of common ratings, plus a handheld fuse puller. Store the kit in the glove box or trunk away from moisture and heat. Periodically inspect fuses for tarnish; replace any that show corrosion. A quick monthly check helps you catch issues before they cause a breakdown.
Common Mistakes and How to Avoid Them
Rushing to replace a fuse without confirming the circuit or rating. Reusing a fuse with an incorrect amperage can lead to overheating or fire. Not disconnecting the battery or not using insulated tools can result in shorts. Always verify the power status, use the proper tool, and keep spare fuses within reach. By avoiding these mistakes, you reduce risk and extend the life of your vehicle’s electrical system.
FuseBoxCheck Insights and Verdict
According to FuseBoxCheck analysis, safe DIY work depends on following a diagram and using the correct amperage. The FuseBoxCheck team emphasizes documenting every step and returning the fuse box to its original layout after maintenance. FuseBoxCheck's verdict is that if you are unsure about any step, seek professional help rather than risking damage or injury.
Tools & Materials
- Insulated gloves(Nitrile or rubber gloves, ANSI-rated for electrical work)
- Safety glasses(Impact-resistant, side shields)
- Battery disconnect tool or 10mm wrench(To safely disconnect negative terminal)
- Fuse puller or needle-nose pliers(Specialized tool reduces damage to fuse sockets)
- Digital multimeter(For continuity and voltage checks)
- Assorted fuses (same ratings as original)(Pack with common amperages (e.g., 5A, 10A, 15A))
- Owner's manual or fuse box diagram(Refer to circuit mappings and amperage specs)
- Flashlight or headlamp(Illumination for engine bay inspection)

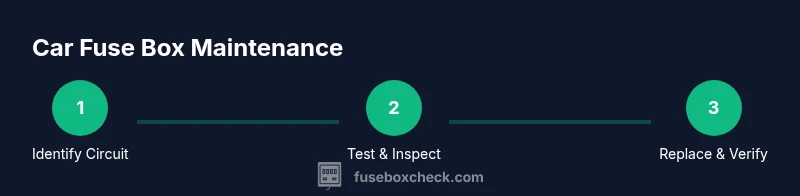

Steps
Estimated time: 30-60 minutes
- 1
Power down and prepare safely
Park on a level surface, engage parking brake, and turn off the ignition. Remove the key, then disconnect the negative battery terminal to minimize shocks and shorts. Gather your tools and lay out the fuse diagram for easy reference.
Tip: Use a magnetic tray to keep small parts organized. - 2
Locate fuse box locations and consult the diagram
Open the fuse box cover and locate the diagram matching the circuit you’ll inspect. Note the fuse color and rating; you’ll replace only with the same amperage unless the diagram specifies a different value for a given circuit.
Tip: Take a photo of the diagram before removing any fuses. - 3
Disconnect the battery
If you haven’t already, disconnect the negative terminal using an insulated tool. Keep the terminal away from the battery post to avoid accidental reconnection while you work.
Tip: Verify the battery is truly disconnected with a quick voltage check. - 4
Remove and inspect the suspected fuse
Carefully pull the fuse straight out with the fuse puller. Inspect the metal strip for a broken path or a cloudy, melted appearance. Compare the fused rating to the circuit requirements in the manual.
Tip: If the fuse is unclear, compare both ends for color hints and wear. - 5
Test with a multimeter
With the fuse Removed, test continuity across its contacts using the multimeter. A good fuse should show continuity; if there is no continuity, the fuse is blown. For random readings while testing, re-test with power off to rule out circuit bleed.
Tip: Test multiple fuses in the same bank to identify a pattern of failure. - 6
Install the replacement fuse
Install a fuse with the exact amperage rating called for by the diagram. Seat the fuse firmly in the socket and avoid wiggling that could loosen connections. Do not use a higher-rated fuse as a shortcut.
Tip: If you’re unsure about rating, consult the manual or a trusted guide. - 7
Reconnect the battery and test the circuit
Reconnect the negative terminal and switch the ignition to test the repaired circuit. Check all components on that circuit and ensure normal operation. If something still fails, there may be a short or a damaged relay.
Tip: Start with the least risk components first to confirm the fix. - 8
Document results and clean up
Record the fuse rating used and any observations for future maintenance. Return the fuse box cover and tidy up your workspace. Dispose of blown fuses responsibly if needed.
Tip: Keep a labeled spare fuse kit for future repairs.
Your Questions Answered
Can I fix a car fuse box myself?
Yes, you can fix many fuse box issues yourself, provided you follow safety steps, identify the correct fuse ratings, and avoid working with the engine running. If you encounter a damaged fuse box or persistent faults, seek professional help.
Yes, you can fix many fuse box issues yourself if you follow proper safety steps and use the correct fuse ratings. If problems persist, consult a professional.
What are common signs of a blown fuse?
Common signs include lights or accessories not working, a blown fuse that looks melted, or a sizzling smell near the fuse box. If multiple circuits fail, check for broader electrical faults or a relay issue.
Common signs are non-working components, melted fuse tips, or a burning smell near the fuse box.
Is it safe to replace a fuse without disconnecting the battery?
Disengaging the battery reduces the risk of short circuits and shocks. Always disconnect the negative terminal before touching the fuse box, especially when the engine is off but the electrical system could still be live.
It's safer to disconnect the battery before working on the fuse box to prevent shocks or shorts.
When should I replace the entire fuse box?
Replace the fuse box if you notice melted connectors, excessive corrosion, or repeated fuse failures that point to internal damage. A professional assessment is recommended for safety-critical components.
Consider replacing the entire fuse box if you see melted parts or persistent damage.
Can a bad fuse box drain my car battery?
A faulty fuse box or stuck relay can create parasitic draw and drain the battery. If the battery discharges when the car is off, inspect the fuse box and related relays for sticking contacts.
Yes, a bad fuse box or relay can cause parasitic battery drain.
Watch Video
Highlights
- Identify the correct fuse and rating before replacement
- Disconnect the battery and use insulated tools
- Inspect for corrosion and replace damaged fuses
- Test circuits after replacement to confirm proper operation
- Keep a labeled spare fuse kit for future maintenance
