You will learn how to safely locate, inspect, and test the peugeot expert fuse box, identify blown fuses, and perform basic, non-destructive repairs. The guide covers interior and engine bay fuse boxes, common failure symptoms, and essential safety steps to minimize shocks or short circuits. Expect a clear, actionable plan you can follow with confidence.
Understanding the peugeot expert fuse box: layout and purpose
Understanding the peugeot expert fuse box is key to safe and effective electrical troubleshooting. In most Peugeot Expert models, there are two main fuse hubs: an interior fuse box located behind the glove box for cabin circuits such as lighting, wipers, and radio, and an engine bay fuse box that feeds critical components like the ECU, charging system, and main power circuits. The purpose of these boxes is to protect circuits from overload and to isolate faults. FuseBoxCheck Analysis, 2026, indicates that many electrical problems originate from blown fuses, loose connections, or corroded terminals rather than failed control modules. Mapping which fuses correspond to which systems helps you diagnose faster and avoid unnecessary replacements. Start by consulting the owner’s manual for fuse mapping and labeling on the fuse box cover, then label each fuse you test so you don’t lose track as you work. A methodical approach lowers risk and increases the chance you’ll restore function on the first attempt.
Safety-first approach for Peugeot Expert electrical work
Safety comes first when working on fuse boxes, especially in a vehicle environment. Always disconnect the battery before opening any fuse box to eliminate the risk of arcing or short circuits. Remove the key from the ignition and keep the vehicle in park with the parking brake engaged. Wear insulated gloves and eye protection, work on dry surfaces, and use tools with insulated handles. Avoid wearing metal jewelry and keep the work area free of flammables. If you’re unsure about a circuit, stop and verify the circuit’s function with a multimeter in a non-contact mode first. FuseBoxCheck’s guidelines emphasize that treating every test as a live risk reduces the chance of a dangerous shock or a costly mistake.
Common symptoms indicating fuse box issues in the Peugeot Expert
Dimming or flickering interior lights, non-functioning accessories (radio, power windows, features like heated seats), or warning lights on the dashboard can point to fuse-related faults. A blown fuse may cut power to a single circuit, while multiple affected circuits can indicate a shared feed or a broader issue in the fuse box. Corrosion around fuse terminals, a burnt smell near the fuse box, or a fuse that cannot be removed cleanly are red flags. Visual inspections are not enough alone; correlation with symptoms across the affected systems helps you confirm a fuse problem vs. a relay or wiring fault. In many instances, replacing a blown fuse resolves the symptom, but if the fuse repeatedly blows, there is an underlying issue that requires deeper testing.
Peugeot Expert fuse box layout and fuse identification
Fuse box labeling is designed to guide you quickly to the correct circuit. The interior fuse box typically carries fuses for cabin electronics, lighting, and convenience features, while the engine bay box handles essential engine management and high-current circuits. The cover often includes a schematic with fuse numbers, amperage ratings, and circuit descriptions. If the rating isn’t obvious on the fuse caps, refer to the owner’s manual or a service diagram for the exact amperage. If you replace a fuse, use the same rating as specified; using an over-rated fuse can allow a fault to fail safely behind the scenes and potentially cause wiring damage. Keep a small log of which fuses you test and their outcomes to track recurring issues.
Tools and materials you will need
To work on the Peugeot Expert fuse box safely, assemble a focused kit before you start. You’ll need a digital multimeter capable of continuity testing, a fuse puller or non-conductive pliers, a range of replacement fuses matching the vehicle’s ratings, insulated screwdrivers, gloves, and a clean workspace. A service manual or wiring diagram for the Peugeot Expert is highly valuable, as it confirms the exact fuse mapping for your model year. Optional items include a small flashlight, contact cleaner, and a camera or phone to photograph fuse positions for future reference. Having a labeled diagram and an organized approach minimizes confusion and speeds up the diagnosis.

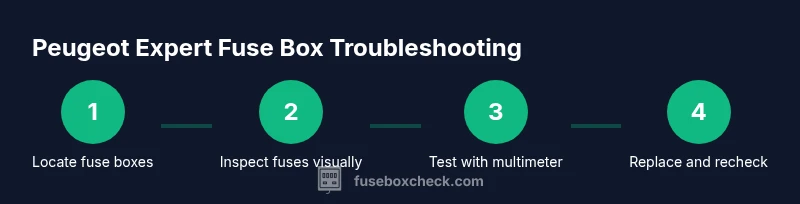

Step-by-step guide: locating and inspecting the fuse boxes
Locating both fuse boxes on the Peugeot Expert is the first practical step. Start with the interior fuse box behind the glove box; pull the glove box slightly to access the panel or drop the cover to reveal the fuse map. Next, locate the engine bay fuse box by opening the hood and finding the protective cover near the battery or along the fender well. Inspect visible fuses for signs of damage: melted plastic, discoloration, or a broken metal strip. If a fuse looks suspect, test it with a multimeter set to continuity. Always replace fuses with the correct amperage and reseat them firmly to ensure a reliable connection. Label each tested fuse and write down findings for future reference.
How to test fuses and diagnose faults safely
Testing fuses involves both visual inspection and electrical testing. Remove a suspect fuse with a fuse puller and test for continuity across the metal element. If continuity is absent, the fuse is blown and should be replaced. When testing, check the corresponding circuit to confirm that the fuse is responsible for the symptom, and ensure the ignition is in the correct position for circuits that only energize with the key. If a fuse blows again after replacement, inspect related wires, connectors, and relays for damage or shorts. Document any recurring issues and consider consulting a professional if multiple fuses fail or if a high-current circuit shows signs of wiring damage.
Maintenance, safety, and prevention for your Peugeot Expert fuse box
Preventive maintenance is crucial for avoiding fuse-related problems. Periodically inspect fuse boxes for signs of corrosion or moisture, clean terminals with an appropriate contact cleaner, and replace aging fuses before they fail. Keep the fuse box area dry and free from moisture infiltrations, especially in the engine bay where exposure to road spray is common. Use OEM or manufacturer-approved fuses and store spares in a labeled container. If a fuse repeatedly blows after a repair, there’s likely a wiring fault or a faulty relay; do not continue replacing fuses without addressing the root cause. Adopting a consistent maintenance routine reduces the likelihood of unexpected electrical failures.
Quick reference: common fuse types and safety notes
Fuses come in different ratings and are designed to protect specific currents. Always confirm the correct amperage from the Peugeot Expert’s documentation before replacement. Replace fuses one at a time and never bypass a fuse to
Power-off shutdown and aftercare: final steps
When you finish, recheck each reinstalled fuse to ensure it sits fully seated and aligned in the fuse holder. Reconnect the battery and test the affected circuits one by one, verifying normal operation before moving to the next. If everything works, close up the fuse box cover, tidy any wiring, and document your work for future servicing. Congratulations—you’ve completed a careful inspection and reduced the risk of recurrent electrical faults.
Tools & Materials
- Multimeter (continuity and resistance mode)(Set to the correct range for continuity testing; inspect both fuses and circuits)
- Fuse puller or non-conductive pliers(Essential for safely removing fuses without prying on terminals)
- Replacement fuses (various amperages)(Use the exact amp rating specified by the Peugeot Expert manual)
- Insulated screwdriver set(For releasing fuse covers or panels without causing shorts)
- Gloves and eye protection(Personal safety first; keep hands and eyes protected from sparks)
- Service manual or wiring diagram for Peugeot Expert(Helpful for identifying fuse mapping and circuit coverage)
- Work light or headlamp(Bright lighting helps spot faint fuse damage)
- Camera or phone to document fuse positions(Aids reassembly and future diagnostics)
Steps
Estimated time: 45-75 minutes
- 1
Prepare workspace and safety
Park on a flat surface, engage the parking brake, and disconnect the negative battery terminal to prevent shocks and shorts. Gather your tools and lay out a labeled diagram of fuse positions. This step reduces risk and helps you stay organized during the procedure.
Tip: Use a magnet or label maker to keep fuse positions clearly marked. - 2
Access the interior fuse box
Open the glove box and remove any panels to reveal the interior fuse box cover. Note the fuse map and familiarize yourself with the circuits affected by cabin controls. Do not force the cover; use the correct release clips to avoid breaking plastic components.
Tip: Photograph the fuse map before removing anything for reference. - 3
Identify the suspect fuse
Look for visibly damaged fuses or fuses associated with the affected system. If no damage is evident, mark the fuse as “to test” and proceed to continuity testing with the multimeter.
Tip: Only handle fuses with non-conductive tools. - 4
Test the fuse with a multimeter
Set the multimeter to continuity or resistance mode. Place probes on the fuse ends; a continuous beep or near-zero resistance indicates a good fuse. A broken circuit means the fuse is blown and must be replaced.
Tip: Test with the ignition off to avoid false readings from active circuits. - 5
Replace blown fuses
Install a fuse of the exact amperage rating shown on the fuse map or in the manual. Push the fuse firmly into the holder until it seats fully. Avoid substituting with a higher rating.
Tip: Double-check the rating before insertion to prevent wiring damage. - 6
Inspect for wiring shorts
If a fuse blows again after replacement, inspect wires and connectors for damage or signs of chafing, especially around harness routes and near the engine bay. Look for melted insulation or exposed copper.
Tip: Use a flashlight to inspect dark corners and hidden channels. - 7
Reassemble and test
Reconnect the battery, close the fuse box cover, and test all affected circuits one by one. Confirm proper operation before driving. Document outcomes for future reference.
Tip: Take a final system check and monitor for any unusual smells or heat during the first drive after replacement.
Your Questions Answered
Is it safe to DIY fuse box work on the Peugeot Expert?
DIY work is possible for simple fuse issues if you follow safety steps: disconnect power, use insulated tools, and replace fuses with the correct ratings. For complex wiring or recurring fuse blows, consult a professional.
Yes, you can DIY simple fuse checks, but avoid risky repairs and consult a pro if fuses keep blowing.
How do I know which amperage fuse to use?
The correct amperage is listed on the fuse map inside the fuse box or in the owner's manual. Use exactly that rating; using a higher rating can prevent proper protection and cause wiring damage.
Check the fuse map or manual for the exact rating and substitute only with that value.
What should I do if a fuse repeatedly blows after replacement?
Repeated blows indicate an underlying issue: a short, damaged wiring, or a faulty relay. Trace circuits related to the affected fuse, inspect connectors, and consider professional diagnostics if needed.
If it keeps blowing, there’s a bigger problem—inspect wiring and relays or seek a technician.
Can a relay cause symptoms similar to a blown fuse?
Yes. A faulty relay can mimic fuse failures by delivering intermittent power or high resistance. Verify by testing the circuit with the relay removed or replaced.
Relays can imitate fuse issues; test the circuit with a known-good relay.
Do I need a service manual to work on the fuse box?
A service manual or wiring diagram greatly helps, but you can proceed with caution using the fuse map and standard safety practices. Always verify ratings before replacement.
A manual helps, but you can proceed with caution if you have the fuse map handy.
What about the engine bay fuse box—anything different?
Engine bay fuses protect critical systems; take extra care when accessing this box, avoid touching hot components, and ensure the engine is off and cool before inspection.
Engine bay fuses require more care; ensure the engine is off and cool.
Watch Video
Highlights
- Identify interior and engine fuse boxes before starting.
- Safety first: disconnect power and wear PPE.
- Use correct amperage fuses and test for continuity.
- If a fuse repeatedly blows, inspect wiring and relays.
- Document findings for future maintenance.
