Relay Fuse Box Basics: Safety and Troubleshooting
Understand what a relay fuse box is, how it operates, and safe DIY steps. This FuseBoxCheck guide covers components, safety, troubleshooting, and when to call a professional.

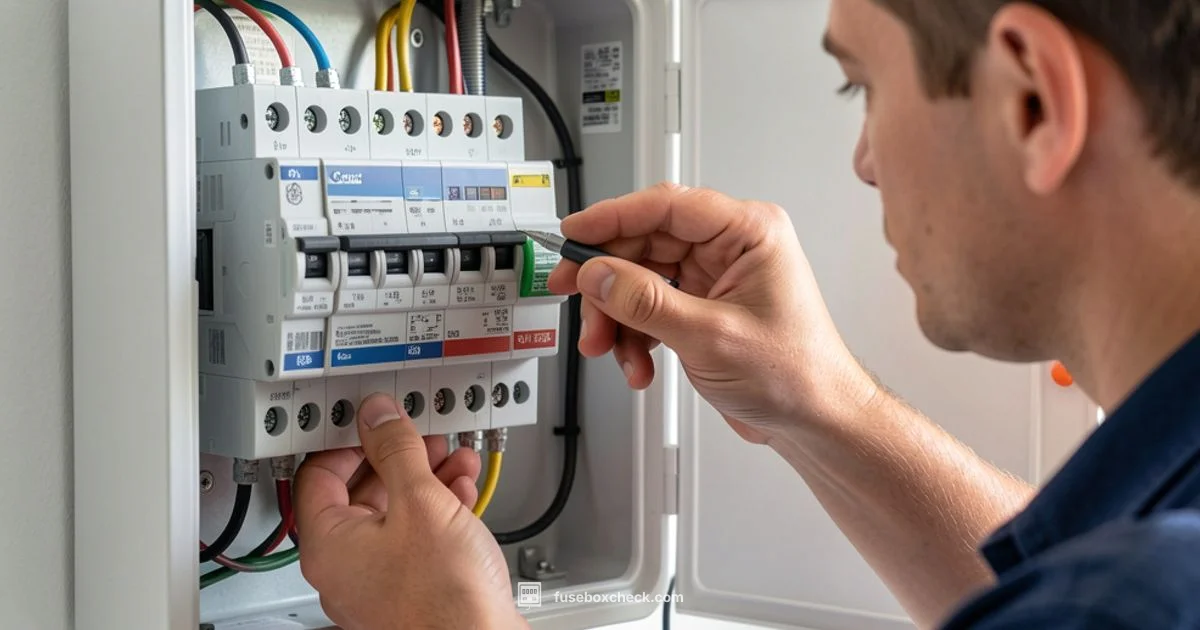

A relay fuse box is a type of electrical panel that uses relays and fuses to protect circuits and manage high current loads.
What is a relay fuse box and how it works
According to FuseBoxCheck, a relay fuse box refers to an electrical panel that uses relays to control high current circuits with protective fuses. Each relay acts as a switch that is triggered by a control signal, allowing a heavy load to energize without routing the control current through the same path. Fuses or circuit breakers provide overcurrent protection for each branch. In homes and small commercial spaces, this setup centralizes distribution while enabling automated control and easier diagnostics. If you are new to this concept, think of relays as gatekeepers that only open when the correct control signal arrives, and fuses as safety valves that trip if a circuit draws too much current. Understanding this layout helps homeowners diagnose nuisance trips, plan safe upgrades, and communicate effectively with an electrician.
Key components inside a relay fuse box
A typical relay fuse box contains several core components: relays, fuses or circuit breakers, a main disconnect, wiring harnesses, bus bars or terminal strips, a neutral and ground bar, and a labeling system. Relays function as electronically controlled switches; fuses provide overcurrent protection; the main disconnect isolates power for service work. Bus bars carry power to multiple circuits, while the neutral and ground bars ensure safe return paths. In many installations, contactors serve as higher current relays for appliances such as water heaters or HVAC equipment. Clear labeling, proper torque on terminations, and a clean layout reduce confusion during maintenance and inspections.
How a relay fuse box differs from a traditional fuse box
Traditional fuse boxes rely on fuses alone to interrupt current when a fault occurs. A relay fuse box adds relays to manage when circuits energize, enabling centralized control, automation, and easier troubleshooting. This arrangement can improve switch reliability, reduce wear on control devices, and simplify future upgrades. However, it also introduces more components that require correct sizing, secure connections, and periodic testing. The end goal is always to keep the control side isolated from the power side to minimize shock risk.
Safety and code considerations
Working with relay fuse boxes involves live components and potentially high currents. Always switch off the main supply before opening the panel and wear insulating gloves and eye protection. Keep the area dry and free of metal jewelry. Follow local electrical codes for panel accessibility, labeling, and clearances. If you suspect a hazardous condition such as burn marks, arcing sounds, or a warm panel, shut off power and contact a licensed electrician. Documentation and labeling help inspectors verify compliance, and regular inspections reduce fire risk. FuseBoxCheck emphasizes that safety should come first in every home electrical project.
Common configurations and wiring practices
Relay fuse boxes come in several common layouts, including banks of relays for lighting and multi pole relays for larger loads. Wiring practices should follow the device manufacturer diagrams and local codes. Use appropriately rated gauge wiring, avoid shared neutrals across high load paths, and keep conductors organized with cable clamps. In panels with multiple relays, ensure clean separation between control wires and main power paths to minimize interference and simplify troubleshooting. When planning upgrades, consider future load growth and keep spare relays and fuses on hand.
Troubleshooting common issues
If a relay fails to switch, a circuit may stay energized or fail to energize at all. Common symptoms include nuisance trips, lights flickering when a relay engages, or a warm panel area. Start with a visual inspection for burnt smells, melted insulation, or corrosion at terminals. Use a digital multimeter to test coil resistance and verify that a relay coil actuates, and check fuse integrity with a continuity test. Never bypass a faulty component; replace with a correctly rated part and re test the circuit. If problems persist, re-evaluate wiring and control signals to identify a broader fault.
Maintenance and upgrading tips
Regular maintenance includes cleaning dust, checking connections for tightness, and confirming label accuracy. When upgrading, plan for future load growth and consider modern relays or solid state alternatives rated for the expected current. Document changes and retain spare fuses or relays. Follow manufacturer guidelines and local codes for safe testing procedures. Periodic safety checks reduce nuisance trips and improve reliability.
Tools you need to inspect a relay fuse box
Gather insulated screwdrivers, a digital multimeter, a torque wrench, electrical contact cleaner, a voltage tester, and a proper flashlight. Use safety equipment such as gloves and eye protection. Keep a non contact tester handy to verify wires are de-energized before touching terminals. A magnetic flashlight helps in tight spaces, and a labeling pen makes updates easy to understand.
When to call a professional
If you see signs of damage, hear buzzing or smell burnt insulation, or if you are unsure about the panel's integrity, contact a licensed electrician. Relay systems can pose shock and fire hazards if misused or incorrectly sized. Professionals can verify code compliance, perform accurate measurements, and upgrade wiring or protective devices when necessary.
Common mistakes to avoid
Avoid replacing a relay without testing its coil resistance and rating. Do not mix high and low voltage circuits in the same relay bank, and never bypass fuses or breakers to quiet a nuisance trip. Do not work on a live panel; always de energize the system first and verify zero voltage. Finally, avoid opaque labeling or cluttered wiring that makes future maintenance hard. Clear documentation reduces risk and speeds troubleshooting.
Authority sources
For further reading and verification of safety standards, consult established sources in electrical safety and home wiring. The guidelines referenced in this article align with general safety practices and are supported by credible institutions. You can review official documents and tutorials from these organizations to deepen your understanding and stay compliant with local requirements. The following sources are widely respected for electrical safety information and code interpretations:
Your Questions Answered
What is a relay fuse box and what does it do?
A relay fuse box is an electrical panel that uses relays to control high current circuits with protective fuses. It centralizes distribution and can support automation and easier troubleshooting. It is a specialized variant of a standard fuse box.
A relay fuse box is an electrical panel that uses relays to switch circuits and protect them with fuses. It centralizes control and can support automation.
How is a relay fuse box different from a standard fuse box?
A standard fuse box uses fuses alone to interrupt current, while a relay fuse box adds relays to control when circuits energize. This allows centralized control and easier diagnostics, but adds more components to maintain.
A relay fuse box adds relays to the traditional fuse box, enabling centralized control and easier troubleshooting, but with more parts to maintain.
Can I DIY work on a relay fuse box safely?
DIY work on a relay fuse box is possible for simple tasks, but it carries significant risk. Only perform non-live work if you are confident in electrical safety, and always follow local codes. When in doubt, hire a licensed electrician.
DIY work is possible for simple tasks, but this is risky. If unsure, hire a licensed electrician.
What tools are essential for troubleshooting?
Essential tools include a digital multimeter, insulated screwdrivers, a voltage tester, and PPE such as gloves and eye protection. Keep spare fuses or relays on hand for quick replacements.
A digital multimeter, insulated tools, and proper PPE are essential for safe troubleshooting.
What are common signs of a failing relay or fuse?
Common signs include repeated trips, dimming lights, warm or discolored panels, and buzzing sounds near the panel. Inspect for burnt smells and corrosion, and replace faulty parts promptly.
Look for trips, warmth, and buzzing noises near the panel as signs of a failing relay or fuse.
When should I upgrade from a relay fuse box?
Upgrade considerations include aging panels, higher load needs, or code updates. A licensed electrician can evaluate whether a modernization to a modern distribution panel or circuit breakers is appropriate.
If the panel is old or you need more capacity, a pro can advise on upgrading to a modern system.
Highlights
- Know that a relay fuse box uses relays to control circuits with protective fuses
- Label all circuits clearly and follow local electrical codes
- Always de energize before opening a panel and wear PPE
- Use a multimeter to verify coil operation and continuity
- Consult a licensed electrician for major upgrades or uncertain conditions
