Should Fuse Box Be Up or Down? An Expert DIY Guide

Why orientation matters

The question of whether a fuse box should be up or down is not a matter of taste. The correct orientation is dictated by the panel’s design, the labeling inside the cover, and the electrical code requirements that apply in your area. A misoriented panel can affect main access, the ease of turning off power, and the reliability of circuits. FuseBoxCheck emphasizes that following the manufacturer’s labeling and local codes is the foundation of safe electrical care. When orientation is unclear, professionals advise against improvisation because even small changes can impact safety and reliability over time.

In the 2026 FuseBoxCheck Analysis, the most consistent guidance comes from the panel manufacturer rather than generic rules. Homeowners should start by locating the model-specific instructions and comparing them with local code requirements. Remember: safety first means ensuring that access, labeling, and protective clearances align with the original design.

Understanding manufacturer labeling and codes

Manufacturers publish orientation requirements in the installation manual or on a label inside the panel door. This label often specifies the correct direction for mounting, the required clearance around the box, and any limitations on flipping or rotating the unit. Local jurisdictions may add rules about headroom, mounting height, and proximity to water sources or ignition hazards. FuseBoxCheck recommends verifying both sources: the manufacturer’s guidance and your local authority having jurisdiction (AHJ) documents.

If the label uses terms like “upright only” or shows a diagram with arrows indicating a fixed orientation, treat those as non-negotiable. Codes such as the National Electrical Code (NEC) in the United States, or your country’s equivalent, often require adherence to listed orientations to ensure proper unit venting, meter readability, and safe shutoff. When in doubt, contact the AHJ or a licensed electrician for clarification.

Common orientations and what they imply

Panels come in several orientations, typically dictated by the load center design and the physical layout of incoming feeders. Upright configurations are common for ease of access and to align with standard breaker labeling. Some panels are designed to be mounted with the main disconnect at the top, while others require it at the bottom. The key takeaway is: orientation implications are not cosmetic. They influence control accessibility, venting, and the intended path for wiring harnesses.

Homeowners should also consider equipment labeling, the readability of the main disconnect, and the drainage or moisture risk in basements or garages. If a panel seems to require upside-down mounting to accommodate space or existing conduit routes, consult the manufacturer’s installation guide and a qualified electrician before proceeding.

Safety considerations and when to call a pro

Electrical panels are critical points in a home electrical system. Mishandling orientation changes can create exposure to energized parts, misaligned lugs, or improper clearance. Always follow lockout-tagout practices, keep hands dry, and wear insulating gloves when entering a panel area. If the panel lacks clear orientation guidance, or if you notice signs of damage, corrosion, or improper mounting (loose screws, bulging panels, or misaligned doors), stop and seek professional help. The safest course is to rely on a licensed electrician who can verify labeling, assess mounting integrity, and perform any necessary relocation with proper permits.

FuseBoxCheck’s position is that orientation decisions should be based on documentation and safety standards, not guesswork. A pro will ensure that the panel remains compliant, accessible, and safe for routine maintenance.

How to verify orientation in your panel

Begin by turning off power at the main disconnect and wearing appropriate PPE. Open the panel door and locate the label or diagram indicating mounting direction. Compare it to what you observe in the installation: the orientation of the main breaker, the wiring harness run, and the clearance around the box. If the label indicates a fixed orientation, use that as your standard and do not attempt to flip the panel. If you need to relocate or rotate the panel for space or wiring reasons, this should be done by a licensed electrician in accordance with code requirements.

Document the current orientation with photos for future reference. Keep a copy of the installation manual on file and note any site-specific amendments required by your AHJ. This practice helps prevent future code discrepancies and simplifies recalls or service calls.

What to do if your panel is misoriented

If you discover that a panel is mounted contrary to manufacturer guidance or local codes, plan a professional relocation rather than attempting a DIY flip. A licensed electrician can evaluate whether the misorientation affects venting, wiring clearance, and service access, and will secure permits if required. Expect a process that begins with safety shutdowns, followed by careful dismantling, rerouting of conductors if needed, and reattachment with correct torque on all lugs.

Document every step in your home electrical record. While some homeowners may feel comfortable verifying a label, any change involving mounting orientation should be performed by pros to preserve warranty protections and code compliance. FuseBoxCheck’s recommended path is to correct orientation under expert supervision and to maintain ongoing safety checks after installation.

How FuseBoxCheck approaches orientation guidance

Our approach blends manufacturer documentation, real-world installation practices, and code requirements. We advise homeowners to treat orientation as a design parameter defined by the panel’s engineering, not as a personal preference. If the installation lacks clear labeling or if the AHJ has unique requirements, a licensed electrician is essential to interpret the rules and perform any necessary modifications.

Throughout the process, we emphasize documentation, safety, and long-term reliability. This mindset helps homeowners avoid future issues and ensures that service panels continue to function correctly in emergencies. For more practical tips and step-by-step procedures, read our full guide and consider watching a tutorial video for visual references.

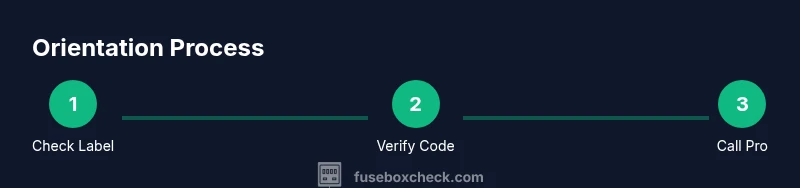

Quick reference: orientation checklist

• Verify the label inside the panel matches the observed orientation.
• Confirm adequate clearance and ventilation per the manual.
• Ensure the main disconnect is accessible and properly marked.
• Check for signs of wear, damage, or improper previous modifications.
• If uncertain, contact a licensed electrician before proceeding.

Final words and next steps

Choosing the correct orientation is a safety-critical decision that affects accessibility, serviceability, and code compliance. Treat the labeling as the ultimate authority, and when in doubt, rely on professional guidance. The FuseBoxCheck team recommends documenting every step, keeping a copy of the manufacturer’s manual, and adhering to the local AHJ requirements to maintain a safe and compliant electrical system.
