Fuse Box Nissan Rogue: Your Step-by-Step DIY Guide

Understanding the Fuse Box in the Nissan Rogue

The fuse box is the electrical nerve center of your Rogue, protecting circuits from overload and preventing short circuits. In most Nissan Rogues, you’ll find two fuse centers: one in the engine bay and a secondary panel inside the cabin. Both boxes host fuses and, in many cases, relays that control key systems such as lighting, HVAC, infotainment, power windows, and the engine management sensors. Understanding what each fuse protects helps you diagnose symptoms quickly and reduces guesswork when something stops working. For the DIY enthusiast, this guide uses plain-language explanations, practical safety steps, and testing techniques so you can confirm a failure without risking damage to the vehicle’s electronics. Note that fuse diagrams vary by model year, so always cross-check with your Rogue’s owner’s manual and the diagram label on the fuse box cover. The goal is to empower responsible troubleshooting, not to replace professional electrical service when symptoms indicate a deeper fault. Fuse box handling requires care to avoid shocks, shorts, or accidental battery discharge.

Car Fuse Box Basics: Fuses, Relays, and Circuits

Fuses are sacrificial devices that protect wiring from overheating by interrupting excessive current. A fuse may be labeled with its amperage (for example, 10A or 20A) and the circuit it guards. Relays are switches controlled by a small signal that can energize larger circuits like the fuel pump or blower motor. In the Nissan Rogue, you’ll see a mix of blade-style fuses and sometimes mini-relays. When a system stops working, a blown fuse is a common culprit, but it can also indicate a short, a failing relay, or a damaged wire. Always check the diagram to confirm which circuit a fuse protects before replacing it. Keeping spare fuses and a small fuse puller in your toolkit helps you work safely and efficiently.

Locating the Fuse Boxes on a Nissan Rogue

The Nissan Rogue typically has two fuse centers: an under-hood (engine bay) box and an interior cabin box. The engine bay box protects critical systems such as the ECU, charging, and power distribution, while the interior box covers outlets, lighting, and interior electronics. The exact layout and fuse labeling vary by model year, so refer to the diagram on the fuse box cover and your owner’s manual for year-specific locations. Before you start, ensure the vehicle is parked on a flat surface, the parking brake is engaged, and the ignition is off. If you’re working near the battery, wear eye protection and avoid metal jewelry to prevent shorts.

Reading the Diagram: How to Identify the Right Fuse

Fuse diagrams map each fuse position to a specific circuit. Look for the amp rating printed on the fuse and the circuit name or number on the diagram. Some Rogue diagrams include color-coding or a legend that clarifies functions like headlights, wipers, or cabin electronics. If you’re unsure, compare the fuse box diagram to the circuit’s symptoms (e.g., headlights dead means a headlight fuse or relay is suspect). When labeling fuses, note the exact position and amperage so you can replace it with a like-for-like fuse. Please avoid guessing; incorrect amperage can cause overheating and potential damage. Fuse diagrams are year-specific, so confirm you’re using the correct one for your Rogue.

Tools, Safety, and Preparation

Before you touch any fuse, gather the right tools and follow safety best practices. Essential items include a fuse puller or small needle-nose pliers, spare fuses in common amperages (5A, 10A, 15A, 20A), a digital multimeter for testing, and safety glasses. Ensure the ignition is off and the key is removed. If you’re inspecting circuits that may have stored energy, wait a few minutes after turning off the vehicle to let capacitors discharge. Keep a clean workspace, and avoid touching metal components with bare hands. Fuse replacement should be done with the power completely off to minimize shock risk.

Checking a Fuse with a Multimeter

A blown fuse breaks continuity. To test with a multimeter set to continuity, remove the fuse and touch the meter probes to the fuse contacts. A continuous beep indicates a good fuse, while no beep or infinite resistance suggests a blown fuse. If you don’t have a multimeter, visually inspect the fuse; a broken metal filament is a clear sign it’s blown. If the fuse appears intact but the circuit still fails, the problem may lie elsewhere in the wiring or the connected device, and a professional check is advisable.

Replacing a Blown Fuse in the Nissan Rogue

When replacing a fuse, make sure you choose the same amperage as the original. Use a fuse puller or insulated pliers to remove the blown fuse, then insert a new fuse of the same rating and type (blade). Recheck the circuit by turning the ignition on and testing the component (lights, blower, etc.). If the new fuse blows immediately, stop and investigate for a short or damaged wiring. Do not reuse a blown fuse or substitute a higher-amperage fuse. If needed, replace the relay or consult a professional.

When Fuses Keep Blowing: Troubleshooting and Common Causes

Repeated fuse blows often indicate a deeper electrical fault, such as a short circuit, a damaged wire insulation, a faulty relay, or a stuck switch. Inspect wiring harnesses for pinched or frayed conductors, especially around areas with upholstery or moving parts. Check for aftermarket installations (CAR adapters, dash cameras) that may draw more current than the factory fuse can handle. If a fuse continues to blow after replacement, stop using the affected circuit and seek professional diagnostics to avoid risking the vehicle’s electrical system.

Maintenance Tips and Best Practices to Prevent Fuse Box Issues

Proactive maintenance helps prevent fuse failures. Keep a small fuse kit in the Rogue’s glovebox, and replace any damaged fuse covers that you find. Periodically inspect visible fuses for signs of discoloration or corrosion. When installing accessories, verify they are within the vehicle’s electrical capacity and fuse rating. Avoid moisture near fuse boxes by keeping the covers closed during rain or car washes. Regularly review the Rogue’s fuse diagrams during routine service checks to stay aware of changes by year.

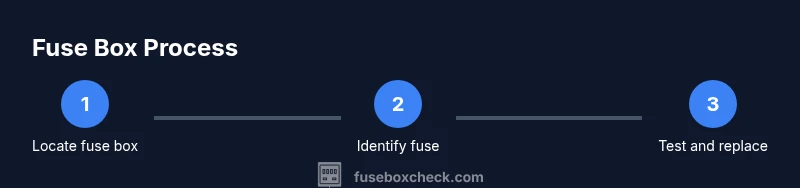

Quick Reference Checklist for Nissan Rogue Fuse Boxes

• Locate both fuse boxes (engine bay and interior cabin) using the owner’s manual diagrams.
• Identify the affected circuit and match the fuse rating.
• Use a fuse puller to remove the blown fuse and inspect or test it.
• Install a like-for-like fuse and test the circuit.
• If fuses blow repeatedly, stop and seek professional help to diagnose a wiring fault or faulty component.
