Is the Fuse Box Under the Hood? A Practical Guide for Car Owners
Discover where the fuse box is typically located, how to safely locate it, and practical DIY steps to inspect, replace fuses, and avoid electrical mishaps.
Is the fuse box under the hood? In most cars, the primary fuse panel is located in the engine bay behind the grille or near the battery, under the hood. Some models also house an interior fuse box, typically behind the glovebox or under the dashboard. Always check the owner’s manual and the fuse box cover label for exact locations.
Fuse Box Basics: What, Why, and Where
A fuse box is a centralized point that distributes electrical power to car circuits, protecting each circuit with individual fuses or fusible links. When a fault occurs, a fuse melts to break the circuit, preventing damage or fire. The question “is the fuse box under the hood” is often answered with: the main engine-bay panel is the standard location in many cars, while some vehicles place an interior panel for convenience. Understanding the placement helps you troubleshoot issues quickly and safely, but always confirm with the model's manual. Fuse boxes may house relays, circuit breakers, and modules in some designs; differentiate fuses from relays to avoid misdiagnosis. In short, the fuse box is not just a box — it’s a critical safety feature that protects wiring harnesses and expensive electrical components.
Common Configurations by Vehicle Type
Vehicle designs vary, but some patterns are common:
- Most sedans and compact cars place at least one fuse box in the engine bay. This panel handles main circuits such as headlights, wipers, and power accessories.
- Interior fuse boxes are frequently located behind the glovebox or under the driver's side dash; they manage cabin electronics and some convenience features.
- SUVs and trucks may have multiple panels, including a secondary fuse box in the trunk or under the rear seat for rear-area electronics.
Understanding these patterns helps you quickly locate the panel you need without unnecessary probing. Remember that newer vehicles sometimes use smart modules and relays that aren’t labeled as “fuses,” so consult the diagram on the panel cover and the owner’s manual for accuracy.
Safety First: Working with Electrical Systems
Working on a car’s electrical system carries risk. Always begin with a safety-first mindset:
- Park on a flat, dry surface and engage the parking brake.
- Turn off the engine and remove the key; for added safety, disconnect the negative battery terminal using insulated tools.
- Wear safety glasses and gloves; remove metal jewelry to prevent accidental shorts.
- Work in a well-lit area and keep a flashlight nearby.
- Use only the fuse types and amperages specified for your vehicle.
If you’re unsure, pause and consult a professional. Electricity and damp environments are a dangerous mix in engine bays.
Locating the Under-Hood Fuse Box: A Practical Guide
Locating the under-hood panel typically follows a simple process:
- Open the hood and locate the fuse box cover; it’s often a black plastic box with a label on top or inside the cover.
- Check the label for a diagram showing fuses, relays, and their amperages.
- If the label is missing, refer to the owner’s manual’s fuse section or a service bulletin for your model.
- If you must touch components, ensure the battery is disconnected first and use a fuse puller or insulated tool.
- Reconnect and test circuits one at a time after replacement to verify operation.
Reading Diagrams: Fuses, Relays, and Labels
Fuse diagrams show which circuit each fuse protects. Common amperage labels are color-coded and matched to specific circuits (e.g., lighting, charging, HVAC). Distinguishing fuses from relays is crucial: fuses protect, relays switch power to circuits with minimal current. The box cover or manual should clearly indicate which fuse corresponds to each function. If you replace a fuse, always use the same amperage rating unless the manufacturer explicitly calls for a higher rating due to a documented fault condition.
When a Fuse Blows: Immediate and Follow-Up Steps
If you notice a non-working component, locate the corresponding fuse in the diagram and inspect it. Replace the fuse with one of identical amperage and type; if the fuse blows again, there may be a short circuit or component failure. Do not leave a burned fuse in place or tape around the fuse holder. After replacement, re-evaluate the symptom and consider testing the circuit with a multimeter or seeking a professional diagnosis if the problem recurs.
Tools, PPE, and Best Practices for DIY Fuse Work
Keep a small, clearly labeled tool kit in the vehicle that includes:
- A fuse puller and an assortment of common fuses (same amperage as OEM).
- A digital multimeter with a suitable range for electrical checks.
- Insulated gloves and eye protection.
- A battery terminal brush and contact cleaner for corroded connections.
Follow best practices: work with the engine off and battery disconnected when replacing critical fuses, and never bypass a fuse to “fix” a circuit.
Maintenance Tips to Extend Fuse Box Reliability
Proactive maintenance helps prevent fuse box failures:
- Keep the engine bay dry and free of debris that may trap moisture.
- Clean corrosion from battery terminals and fuse contacts using proper cleaners.
- Schedule periodic electrical system checks during routine maintenance visits.
- Replace aging relay modules as recommended by the manufacturer to avoid cascading failures.
Data-Driven Insights for Everyday Owners

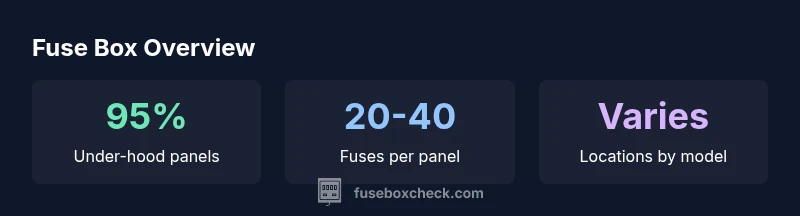

FuseBoxCheck analyses indicate that most vehicles rely on under-hood fuse panels for primary power distribution, with interior panels supplementing cabin electronics. Practically, most owners benefit from knowing the exact fuse locations and amperages for their model. Keeping a labeled diagram on hand and updating it after any electrical service can significantly reduce troubleshooting time and improve safety during DIY repairs.
Common fuse box locations and their roles
| Location | Pros | Notes |
|---|---|---|
| Under-hood fuse box | Easy access; central power distribution | Often near battery; check for a cover diagram |
| Interior fuse box | Convenient for frequent controls; weather-protected | Typically behind glovebox or under dash; varies by model |
| Trunk/Rear fuse box | Supports rear electronics; reduces load on engine bay | Less common; model-dependent |
Your Questions Answered
Is the fuse box always under the hood?
Not always; many cars have interior fuse boxes. Check the owner’s manual for exact location and labeling.
Not always. Some cars place fuses inside the cabin. Check your manual for the exact spot.
How do I safely locate the fuse box under the hood?
Park safely, disconnect the negative battery terminal, consult the diagram on the box cover or manual, and use proper insulated tools.
Park safely, disconnect the battery, and follow the diagram on the cover or in the manual.
What should I do if a fuse keeps blowing?
Replace with the same amperage, inspect for short or overload, and test the circuit. If it repeats, seek professional help.
If a fuse blows repeatedly, stop and get a professional check.
Can I replace a fuse with a higher amperage?
No. Using a higher amperage fuse can allow dangerous currents to bypass protection and cause wiring damage or fire.
Never upsizing a fuse; use the exact rating.
How do I know which fuse controls which component?
Refer to the fuse diagram on the cover or owner’s manual; match amperage and function to the component.
Check the diagram to match fuses to components.
Are car fuse boxes weatherproof?
Under-hood panels tolerate some exposure but are not fully weatherproof; interior panels are typically sheltered.
Under-hood fuses can face moisture; interior ones are usually protected.
“Understanding your vehicle’s fuse layout reduces electrical problems and boosts safety. Always start with the manual and labeled diagrams.”
Highlights
- Check your owner’s manual to confirm fuse box locations.
- Know the two main panels: under-hood and interior fuse boxes.
- Always disconnect the negative battery terminal before DIY work.
- Use the correct fuse amperage when replacing.
- Keep a spare fuse kit and diagram accessible.
